P0102

DTC P0102: Mass Air Flow Circuit Low Input

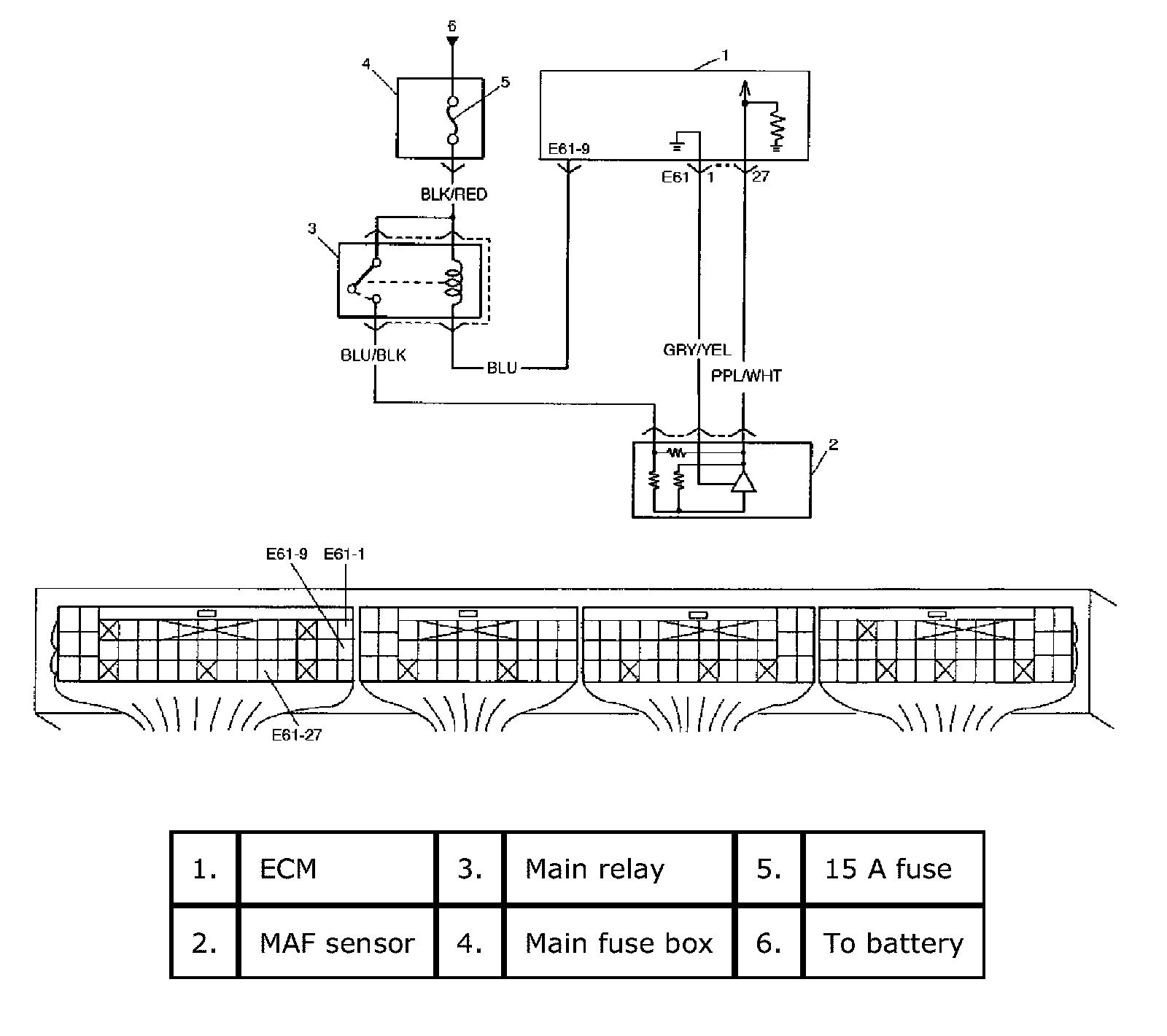

Wiring Diagram:

Wiring Diagram

DTC Detecting Condition And Trouble Area:

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure
1. Connect scan tool to DLC with ignition switch turned OFF.
2. Turn ON ignition switch and clear DTC, pending DTC and freeze frame data by using scan tool and run engine at idle speed for 20 sec. or more.
3. Check DTC by using scan tool.

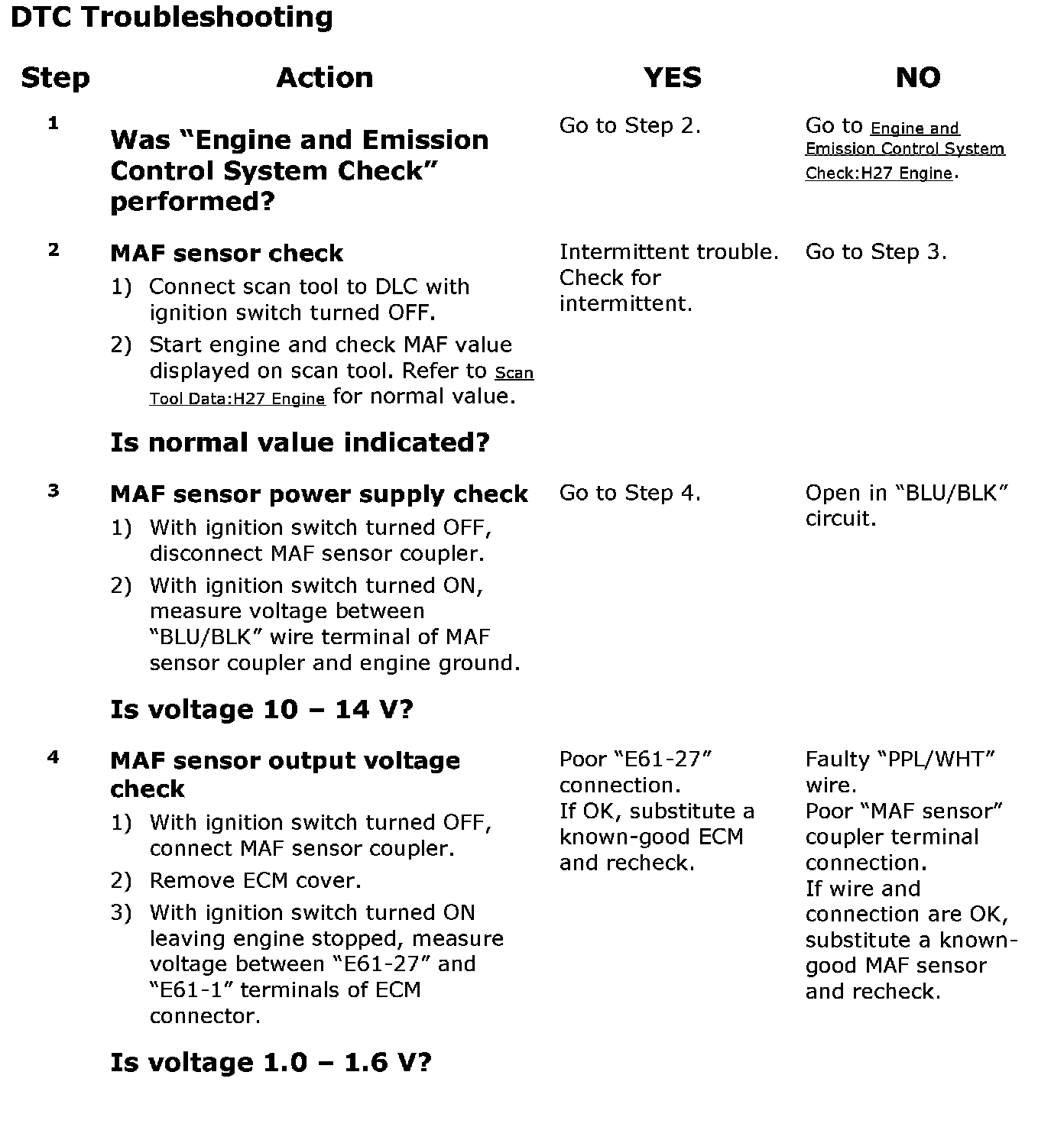

Step 1 - 4:

DTC Troubleshooting
