DTC P0712 Transmission Fluid Temperature Sensor Circuit Shorted to Ground: Notes

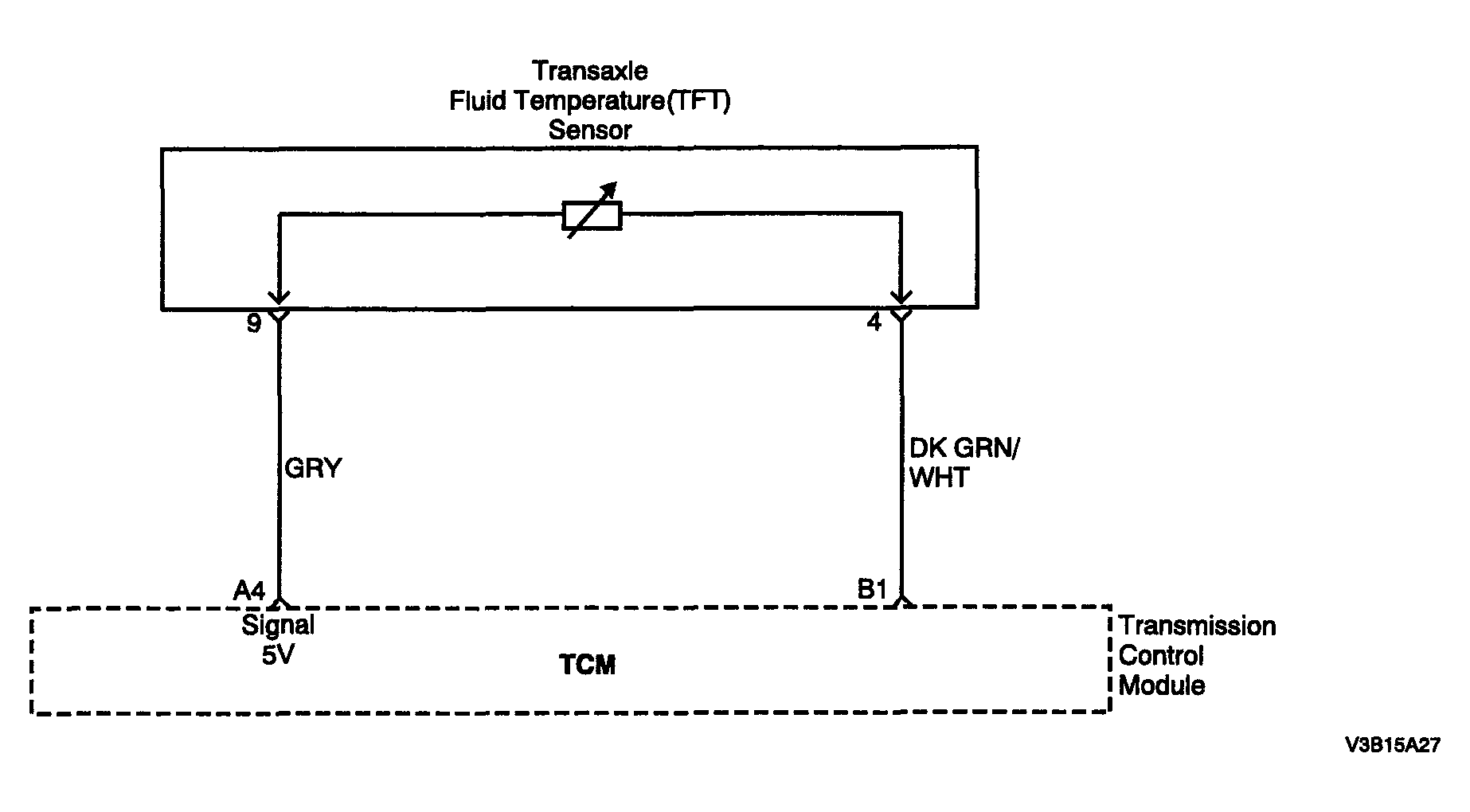

Fig 1: DTC P0712 Transmission Fluid Temperature Sensor Circuit Shorted To Ground
G04095364Courtesy of SUZUKI OF AMERICA CORP.
