Trailing Link Installation

Install the trailing link with bolt-to-knuckle and the bolts-to-trailing link bracket.
Tighten

Tighten the trailing link bolt-to-knuckle to 120 N.m (89 lb-ft) and the trailing link bracket bolts 90 N.m (66 lb-ft).

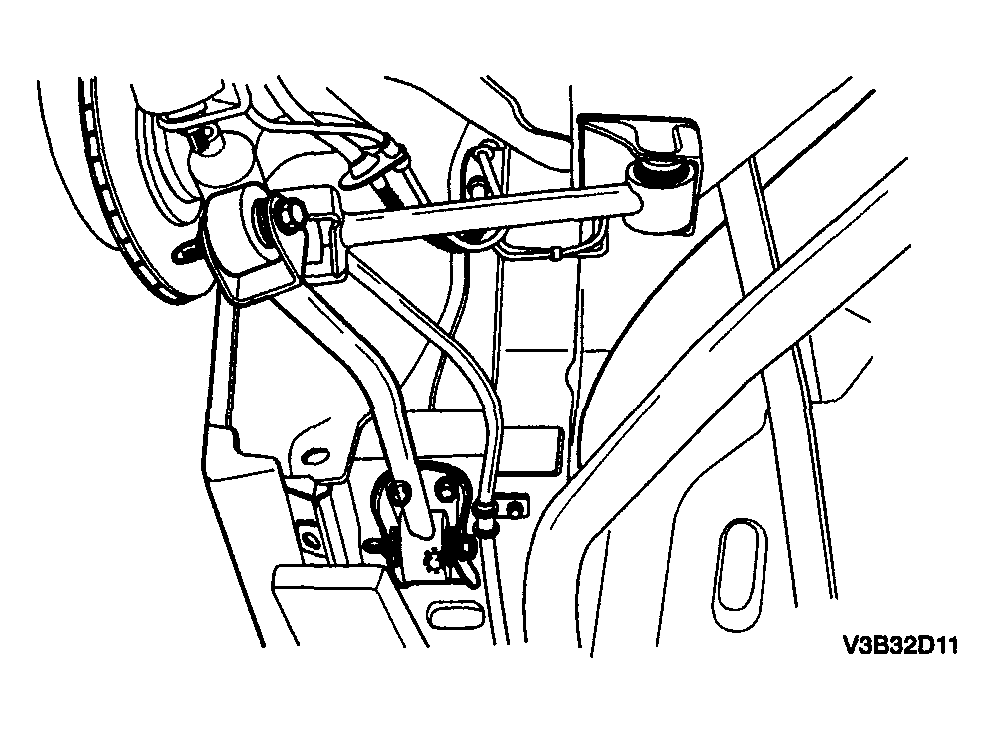

Fig 1: Installing Trailing Link
Courtesy of SUZUKI OF AMERICA CORP.
