DTC B1401 Driver Side Airbag Sensor Short to Ground: Notes

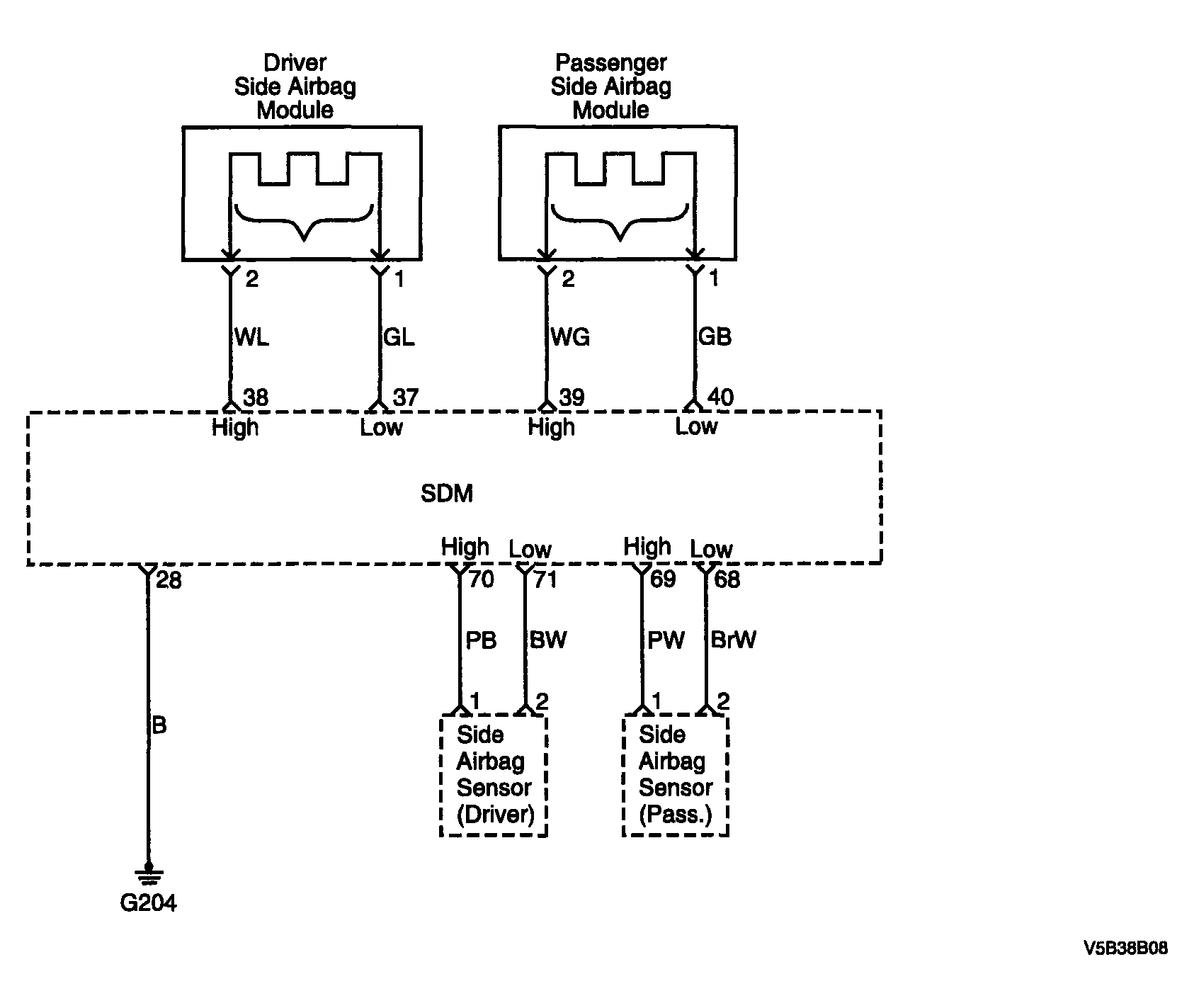

Fig 1: DTC B1401 Circuit Driver Side Airbag Sensor Short To Ground
G04096034Courtesy of SUZUKI OF AMERICA CORP.
