DTC B1327 Early Crash Sensor Driver (LH) Short to Power (Battery): Notes

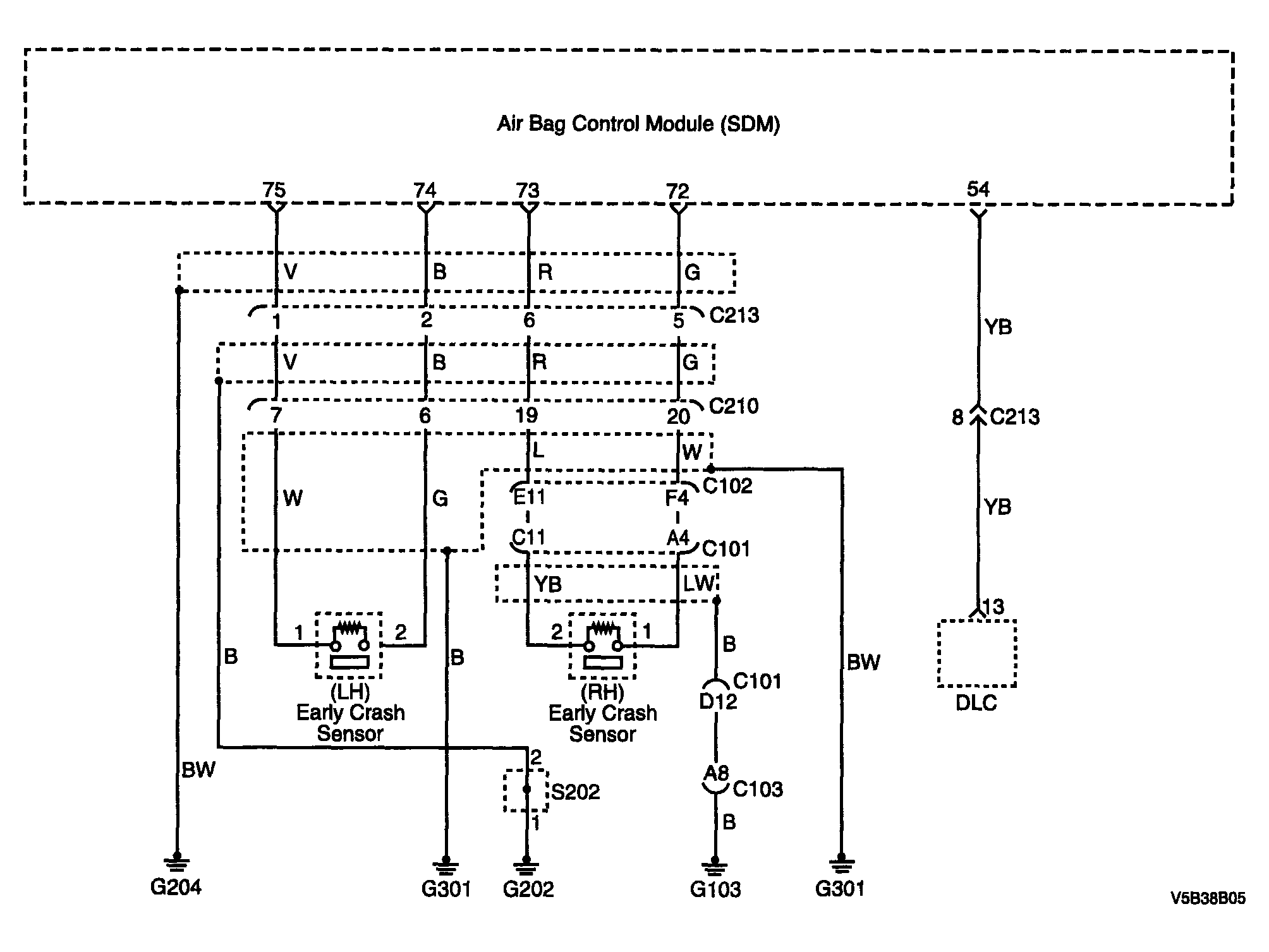

Fig 1: DTC B1327 Early Crash Sensor Circuit Driver (LH) Short To Power (Battery)
G04095999Courtesy of SUZUKI OF AMERICA CORP.
