DTC P2101 Main Throttle Idle Actuator (MTIA) Circuit Malfunction: Notes

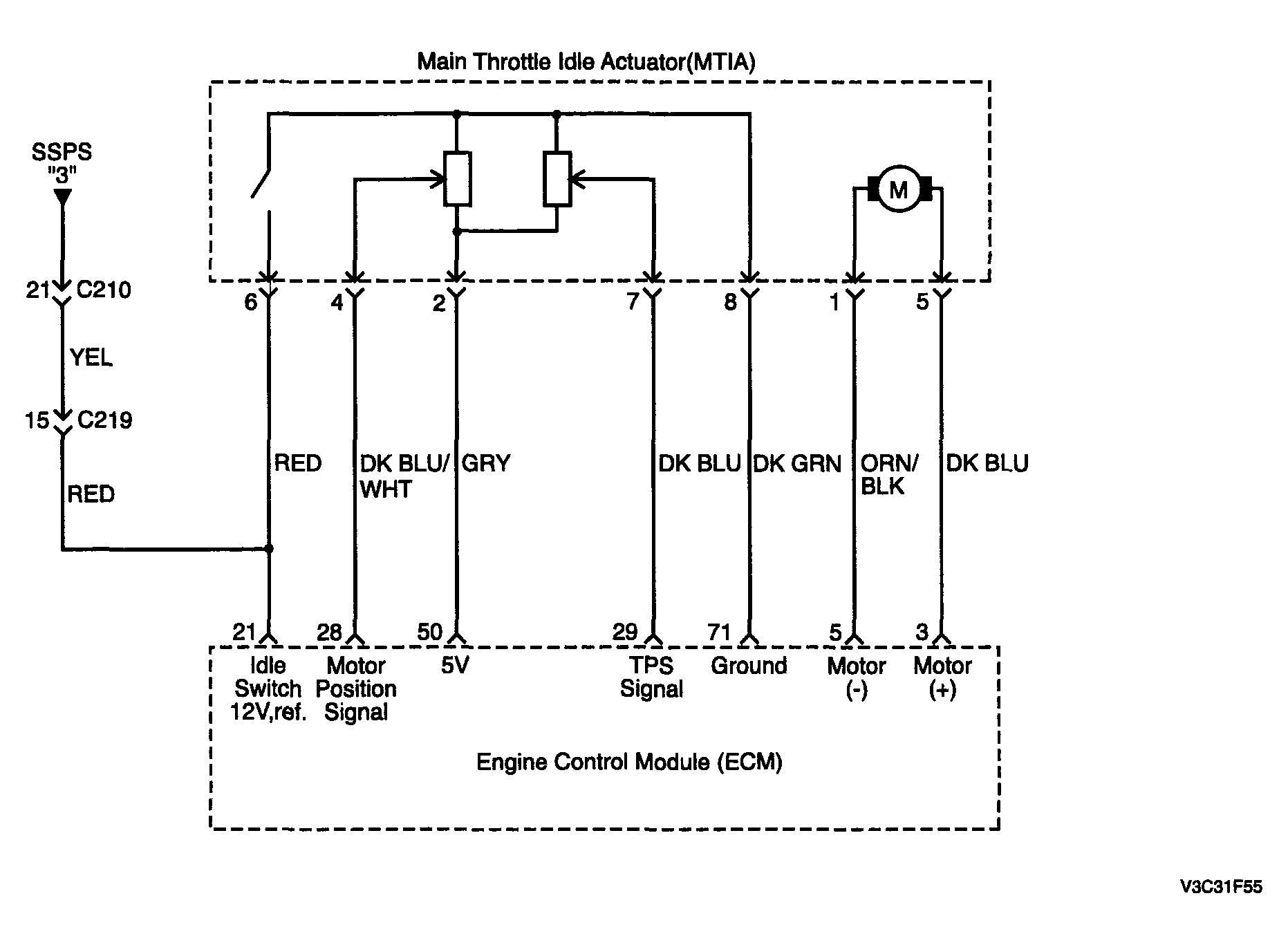

Fig 1: P2101 Main Throttle Idle Actuator (MTIA) Circuit Malfunction - Circuit Diagram
G04094528Courtesy of SUZUKI OF AMERICA CORP.
