Cigar Lighter Installation

Install the cigar lighter housing in the ashtray housing.
Install the cigar lighter in the cigar lighter housing.
Connect the cigar lighter electrical connector.
Install the ashtray housing.
Tighten

Tighten the ashtray housing screws to 2.5 N-m (22 lb-in).

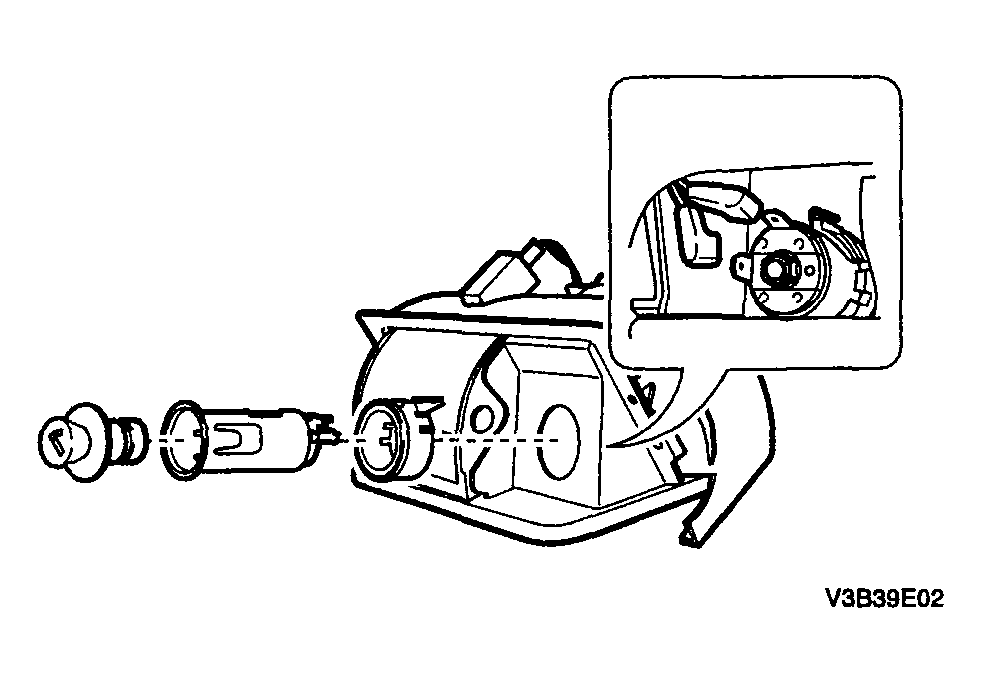

Fig 1: Installing Cigar Lighter In Cigar Lighter Housing
Courtesy of SUZUKI OF AMERICA CORP.
Connect the electrical connectors.
Install the ashtray housing trim panel with the screws.
Tighten

Tighten the ashtray housing screws to 2.5 N-m (22 lb-in).
Install the shift lever trim panel.
Connect the negative battery cable.

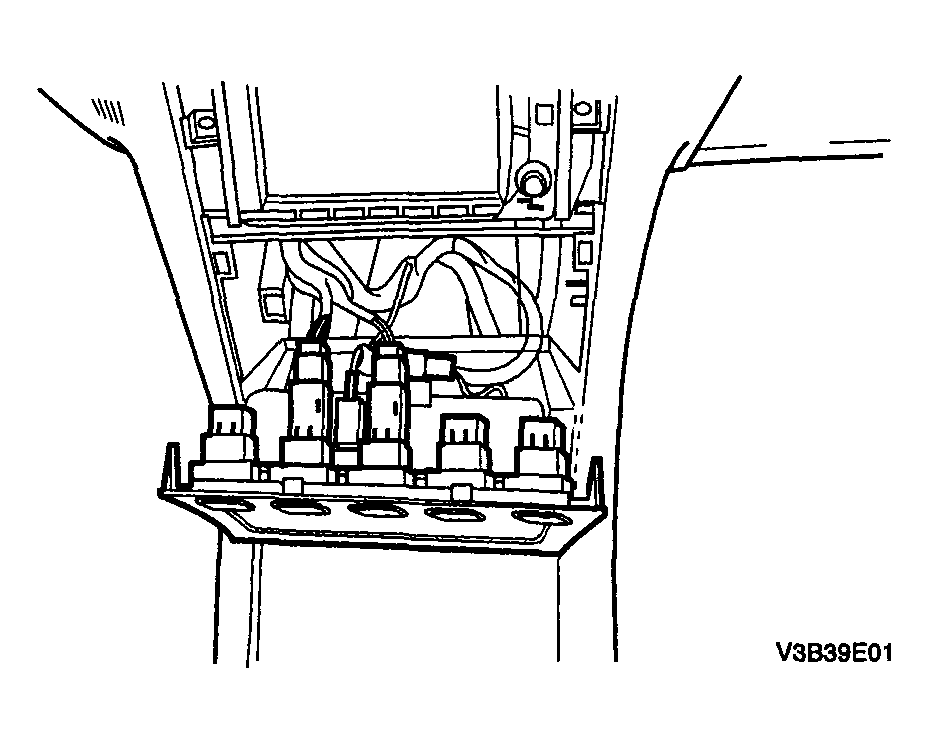

Fig 2: Installing Ashtray Housing Trim Panel With Screws
Courtesy of SUZUKI OF AMERICA CORP.
