Intake EGR Pipe Removal

  1. Remove the intake EGR pipe retaining bolts and the intake EGR pipe.
  2. Remove the intake EGR pipe gasket.

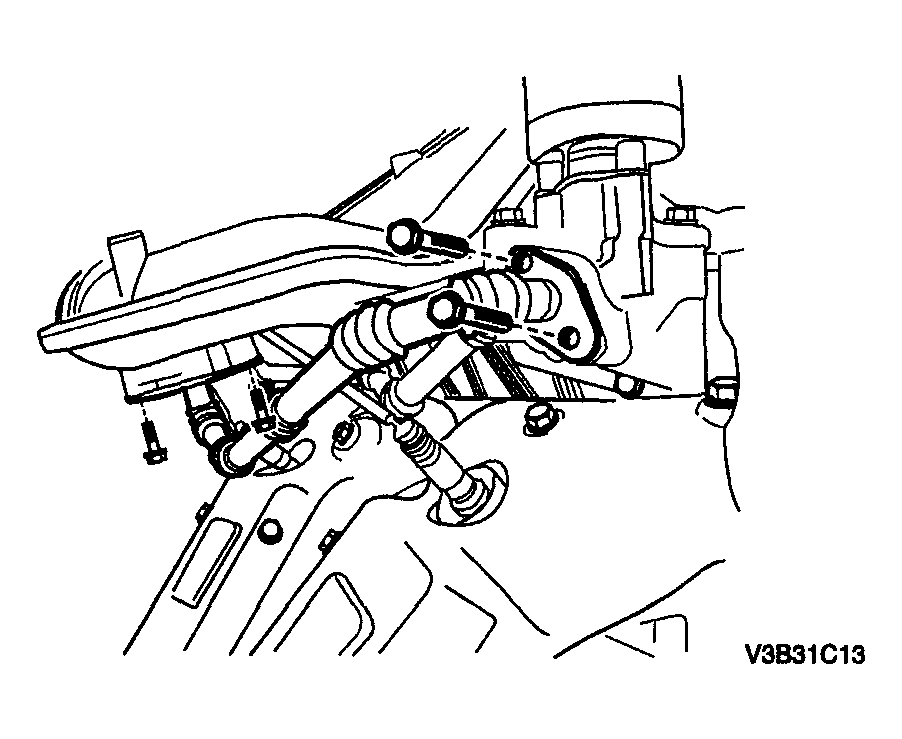

    Fig 1: Removing Intake EGR Pipe Retaining Bolts And Intake EGR Pipe
    G04094556Courtesy of SUZUKI OF AMERICA CORP.
