Gap Chart

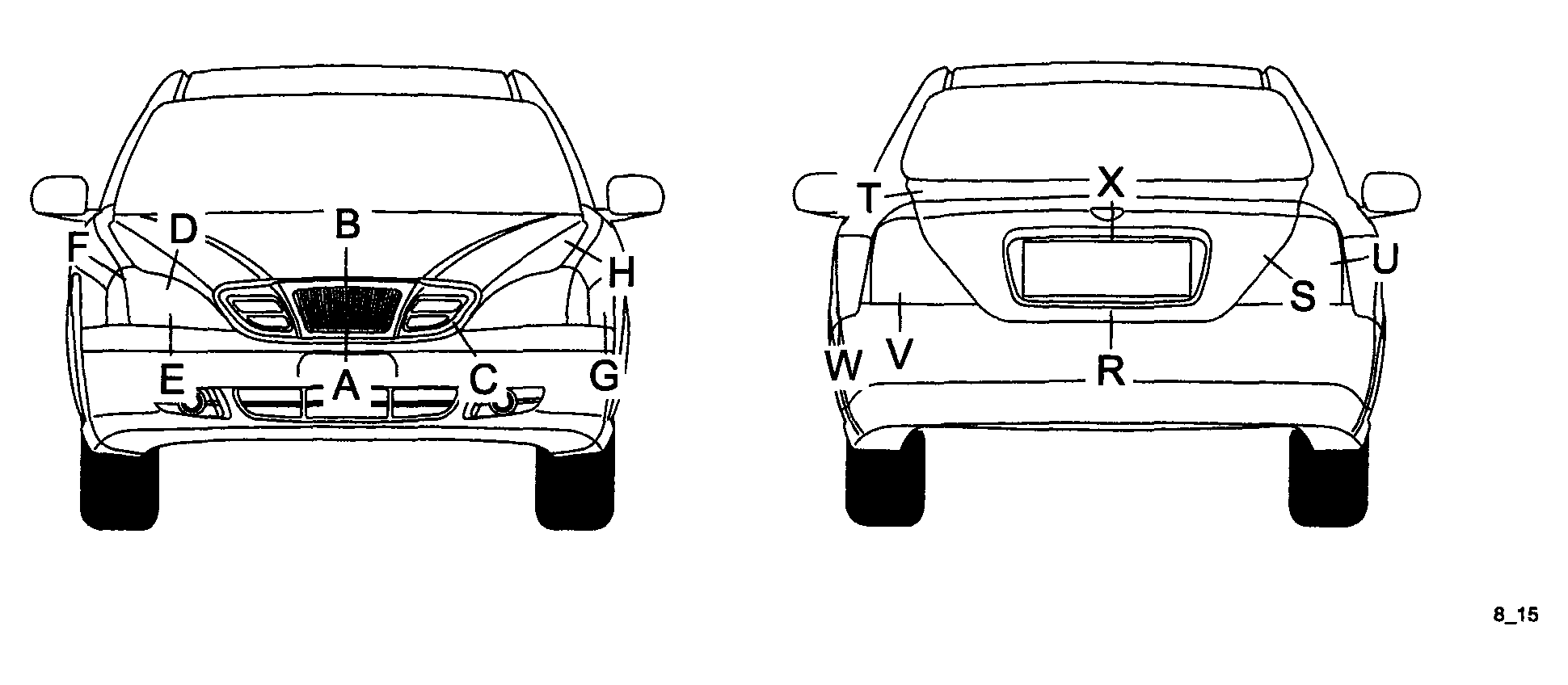

GAP CHART SPECIFICATIONS
| Description | Radiator Grill x Bumper | Engine Hood x Radiator Grill | Engine Hood x Bumper | Engine Hood x Head Lamp | Head Lamp x Bumper |
|---|---|---|---|---|---|
| Location | A | B | C | D | E |
| Gap | 5.0 (+2.0, 0) | - | 5.0 (+2.0, 0) | 4.5 (+1.0,-0.5) | 3.5 +/- 1.0 |
GAP CHART SPECIFICATIONS
| Description | Fender x Head Lamp | Fender x Bumper | Fender x Engine Hood | Trunk Lid x Bumper | Trunk Lid x Tail Lamp |
|---|---|---|---|---|---|
| Location | F | G | H | R | S |
| Gap | 3.5 +/- 1.0 | 0 | 3.0 (+0.1, -0.5) | 5.0 (+2.0, 0) | 3.8 (+1.0, 0) |
GAP CHART SPECIFICATIONS
| Description | Side Outer x Trunk Lid | Side Outer x Tail Lamp | Tail Lamp x Bumper | Side Outer x Bumper | Trunk Lid x Rear Garnish |
|---|---|---|---|---|---|
| Location | T | U | V | W | X |
| Gap | 3.0 (+1.0, 0) | 2.5 + (+1.0, 0) | 2.0 +/- 1.0 | 0 | 1.5 +/- 0.5 |

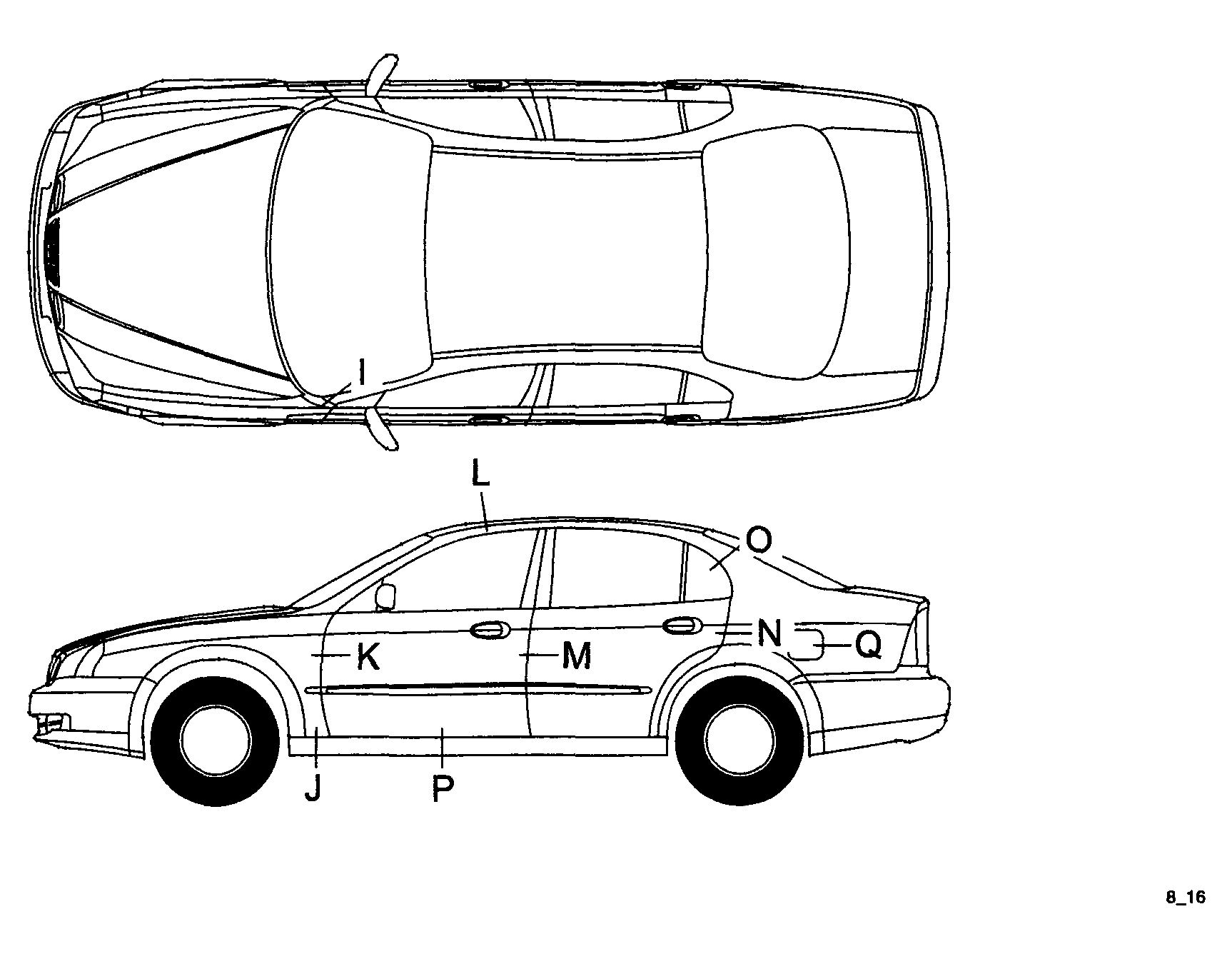

GAP CHART SPECIFICATIONS
| Description | Front Pillar x Fender | Fender x Locker Panel | Front Door x Fender | Side Outer x Door | Front Door x Rear Door |
|---|---|---|---|---|---|
| Location | I | J | K | L | M |
| Gap | 3.0 (+1.0, -0.5) | 5.0 +/- 1.0 | 3.0 (+1.0, 0.5) | 4.6 +/- 1.0 | 4.0 (+1.0, 0) |
GAP CHART SPECIFICATIONS
| Description | Side Outer x Rear Door | Side Outer x Fixed Glass | Door x Locker Panel | Side Outer x Fuel Pillar Door |
|---|---|---|---|---|
| Location | N | O | P | Q |
| Gap | 3.5 (+1.0, 0) | 4.6 +/- 1.0 | 5.0 +/- 1.0 | 4.5 +/- 0.3 |
