Shift Mode Diagram

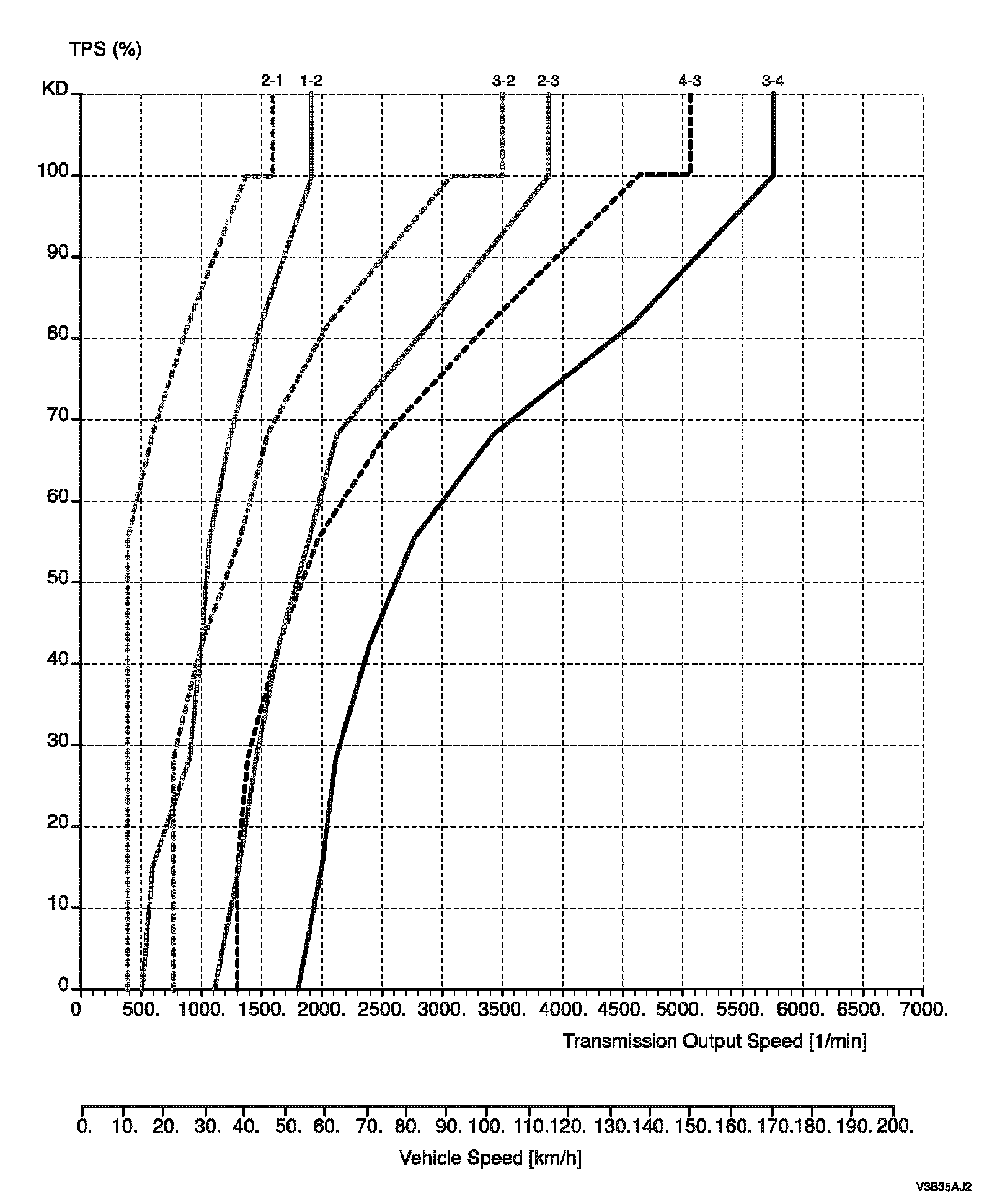

Economic Mode (2.5 DOHC):

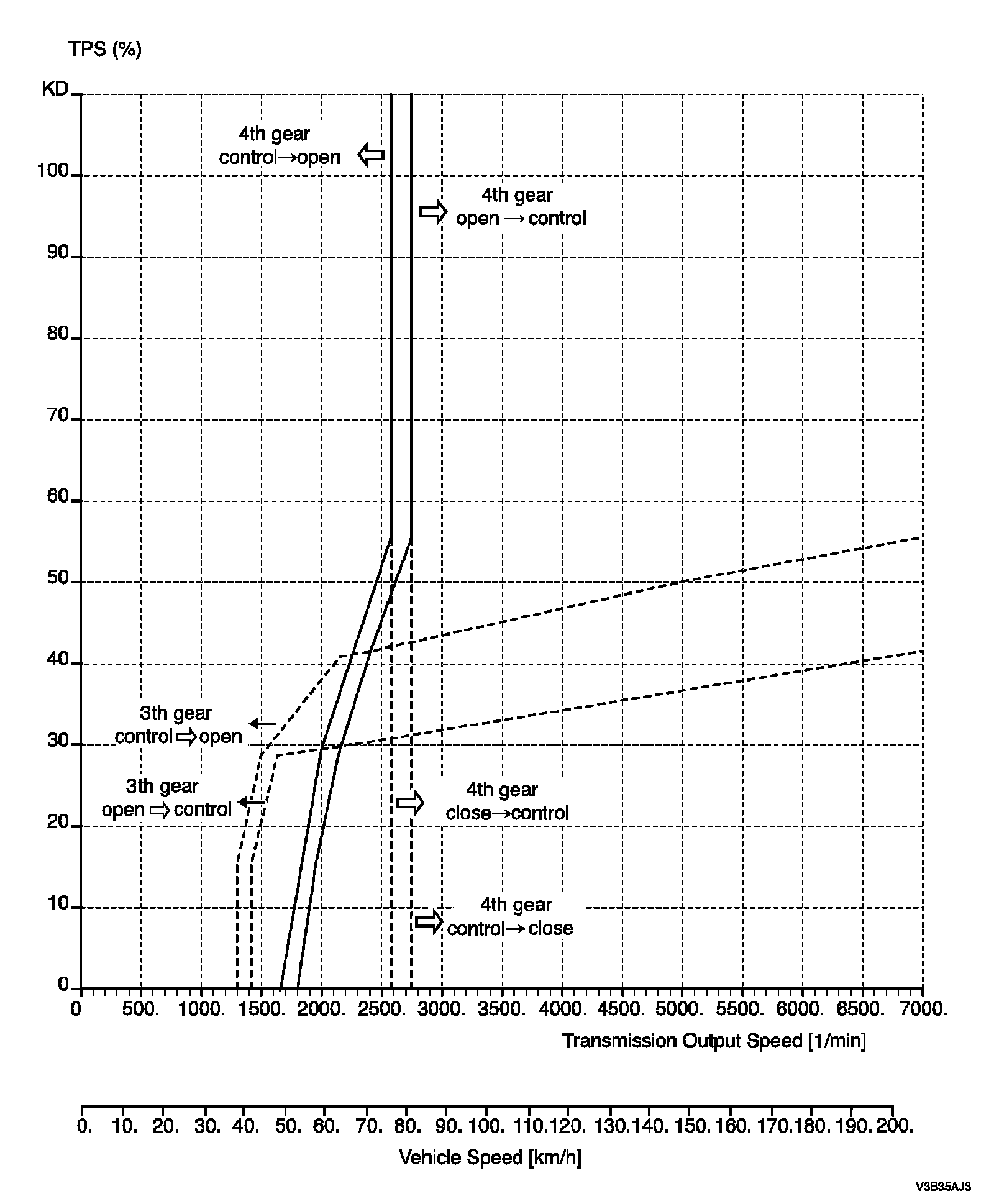

Lock-Up Clutch Applied (Economic Mode; Third Gear, Fourth Gear) (2.5 DOHC):

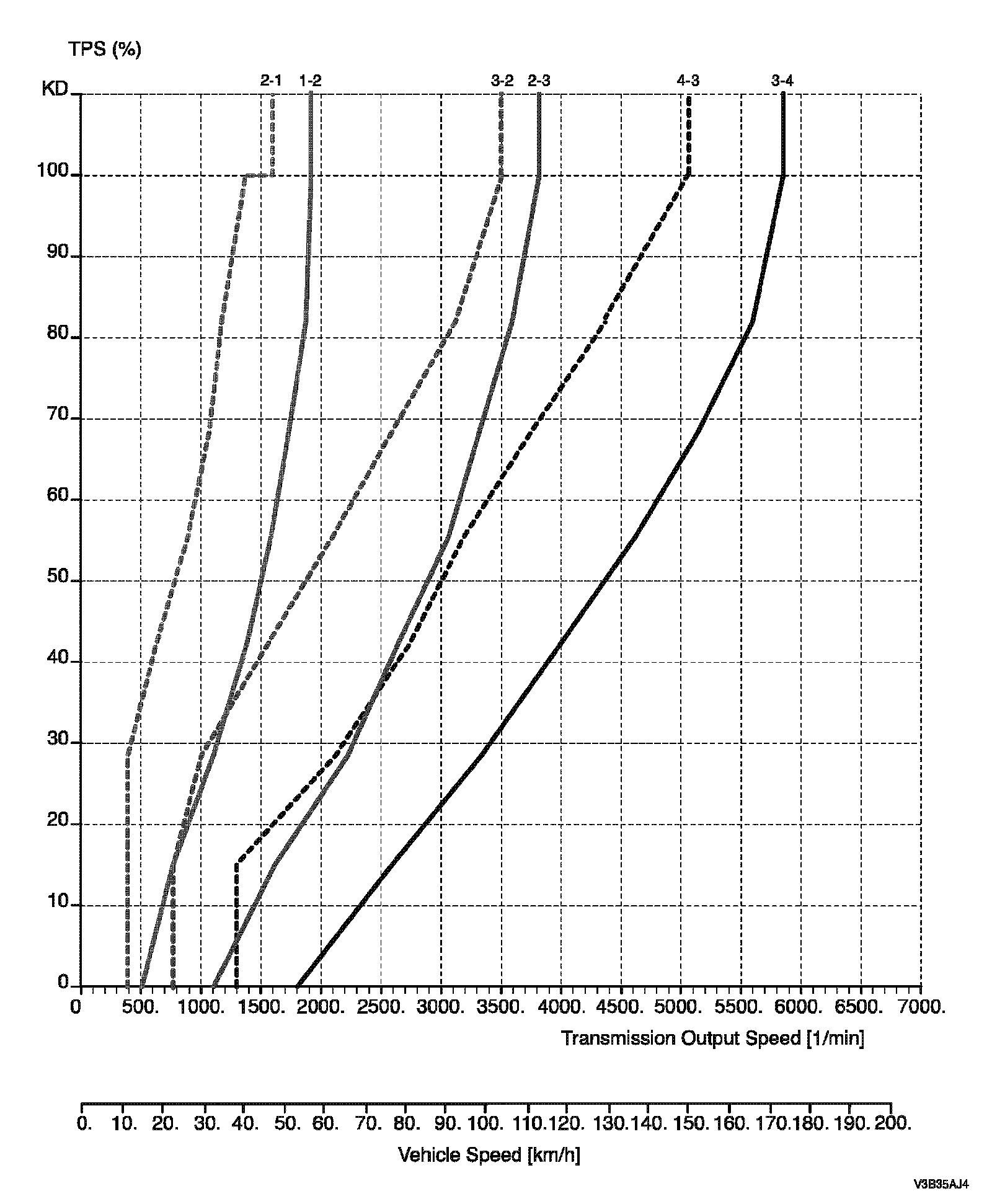

Power Mode (2.5 DOHC):

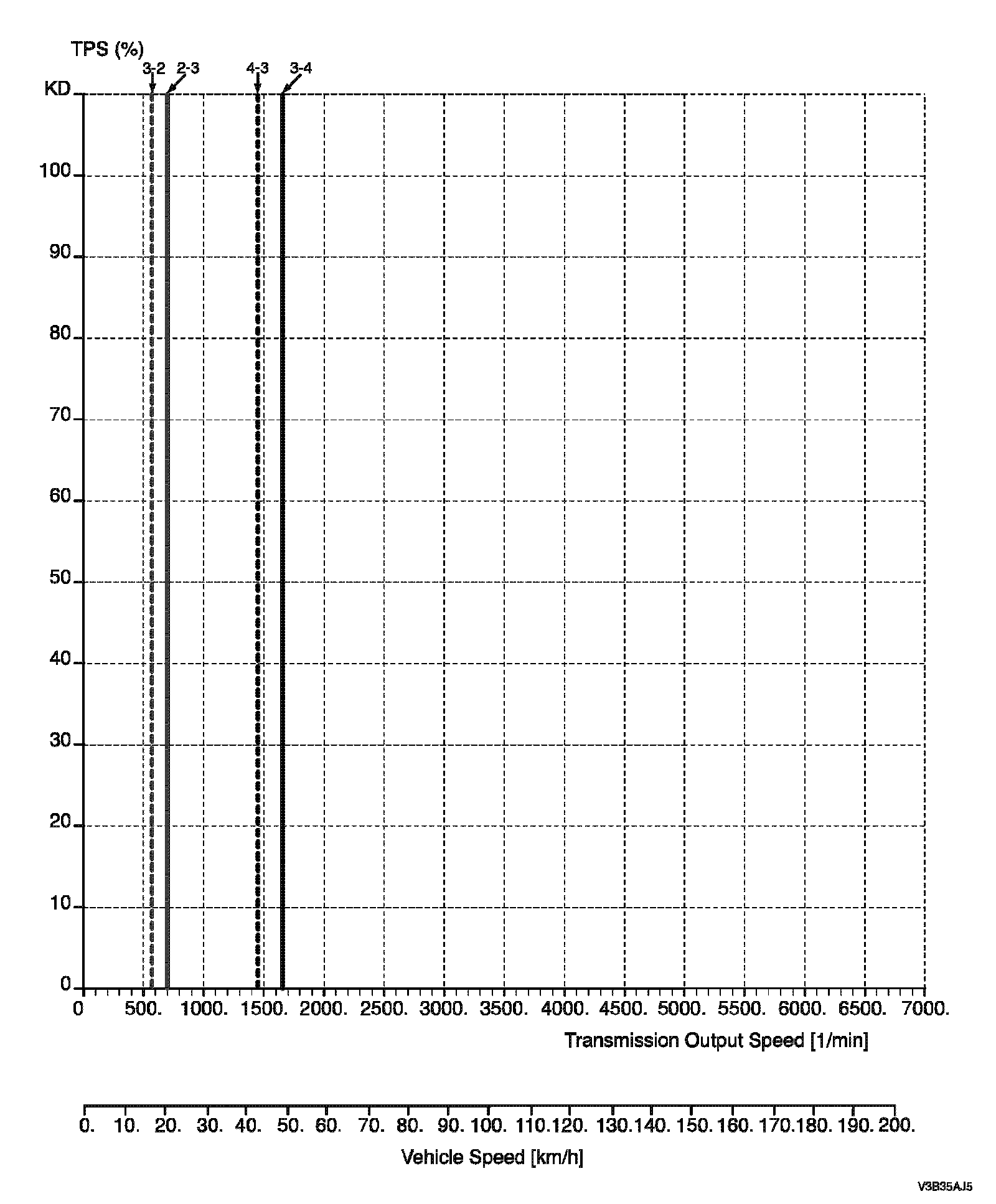

Hold Mode (2.5 DOHC):
