Electrical Diagrams
Ignition Switch, Starter Motor, Generator and PNP Switch Circuit Diagram:

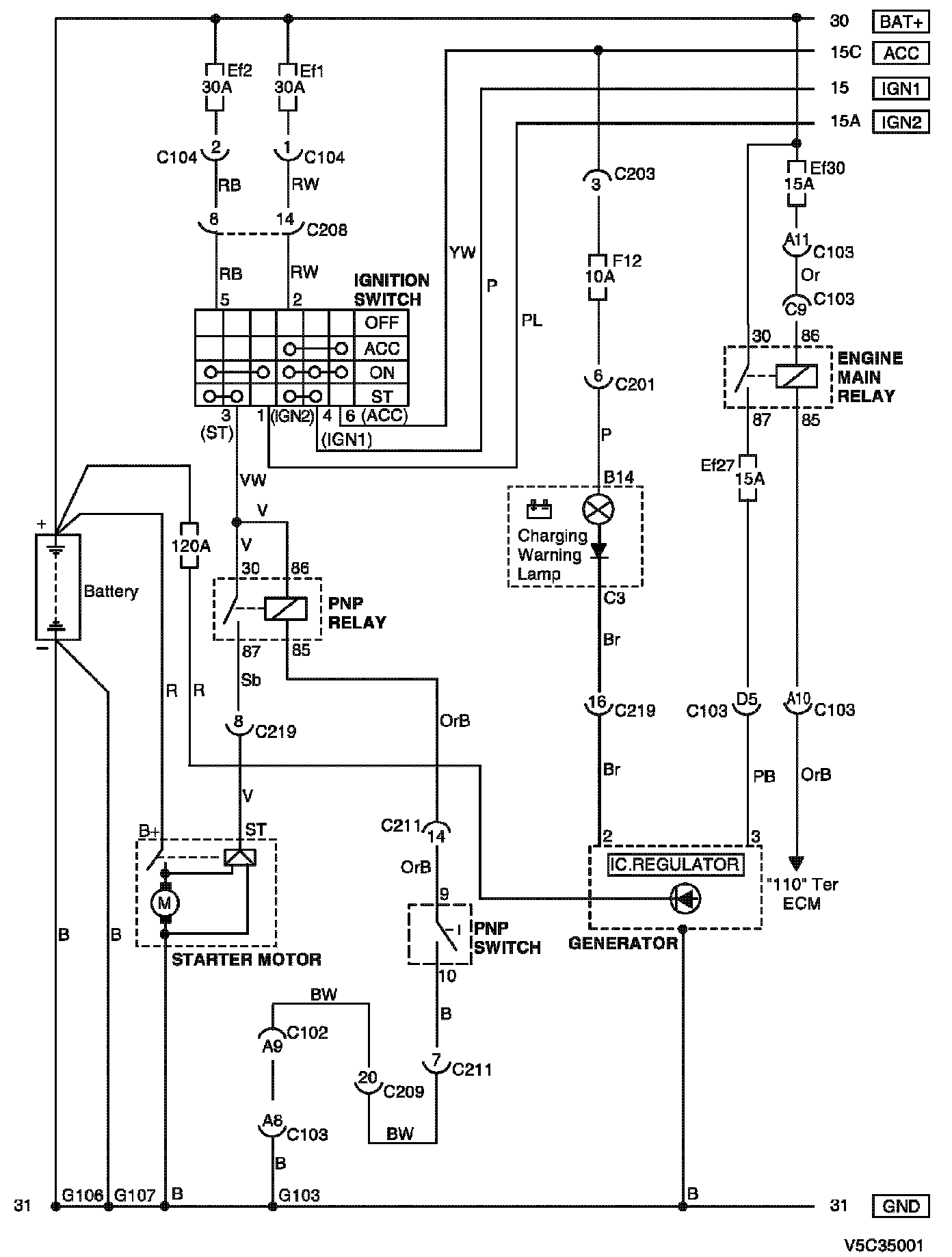

WIRING DIAGRAM
C102 - G107:

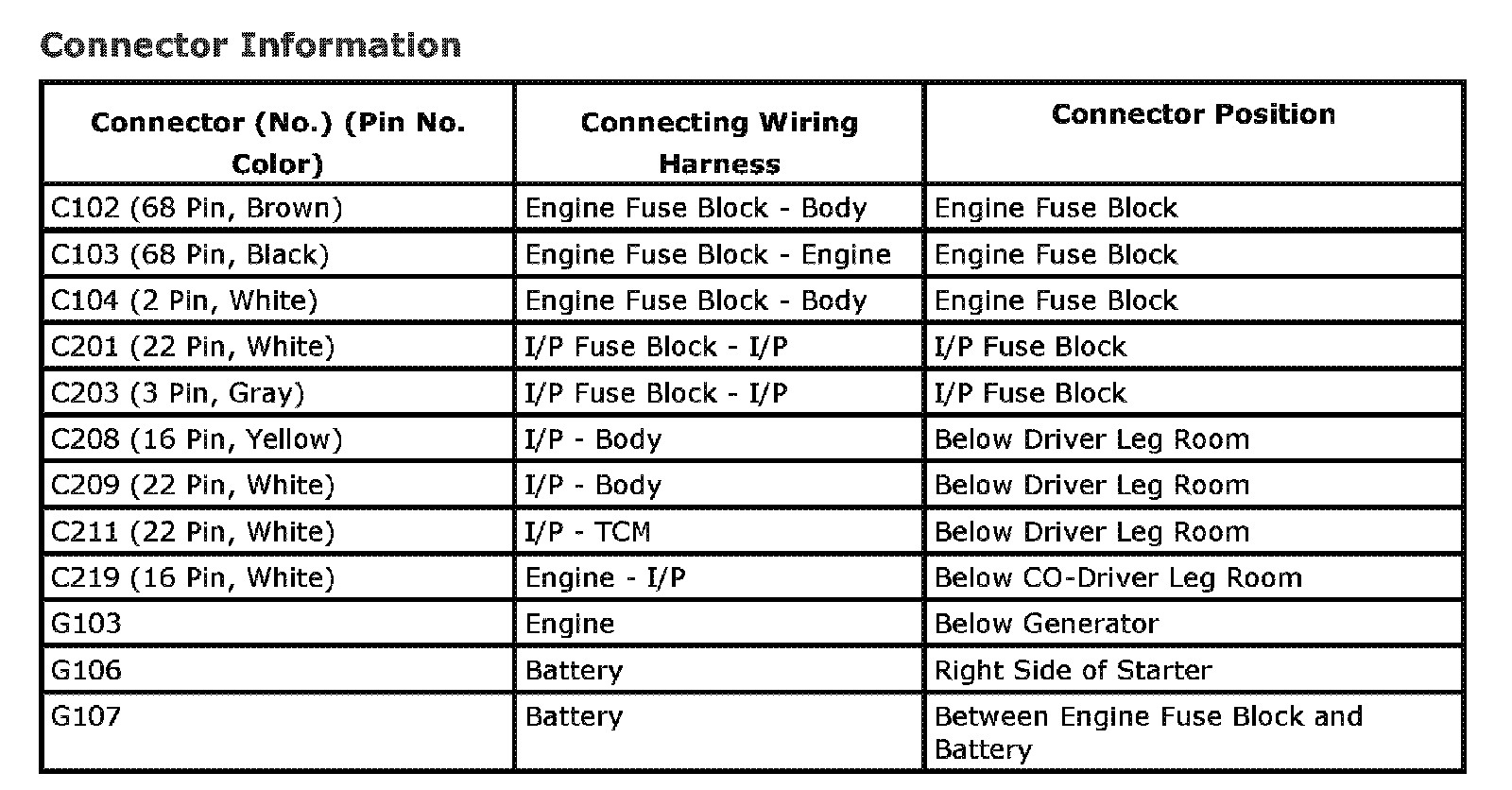

CONNECTOR INFORMATION

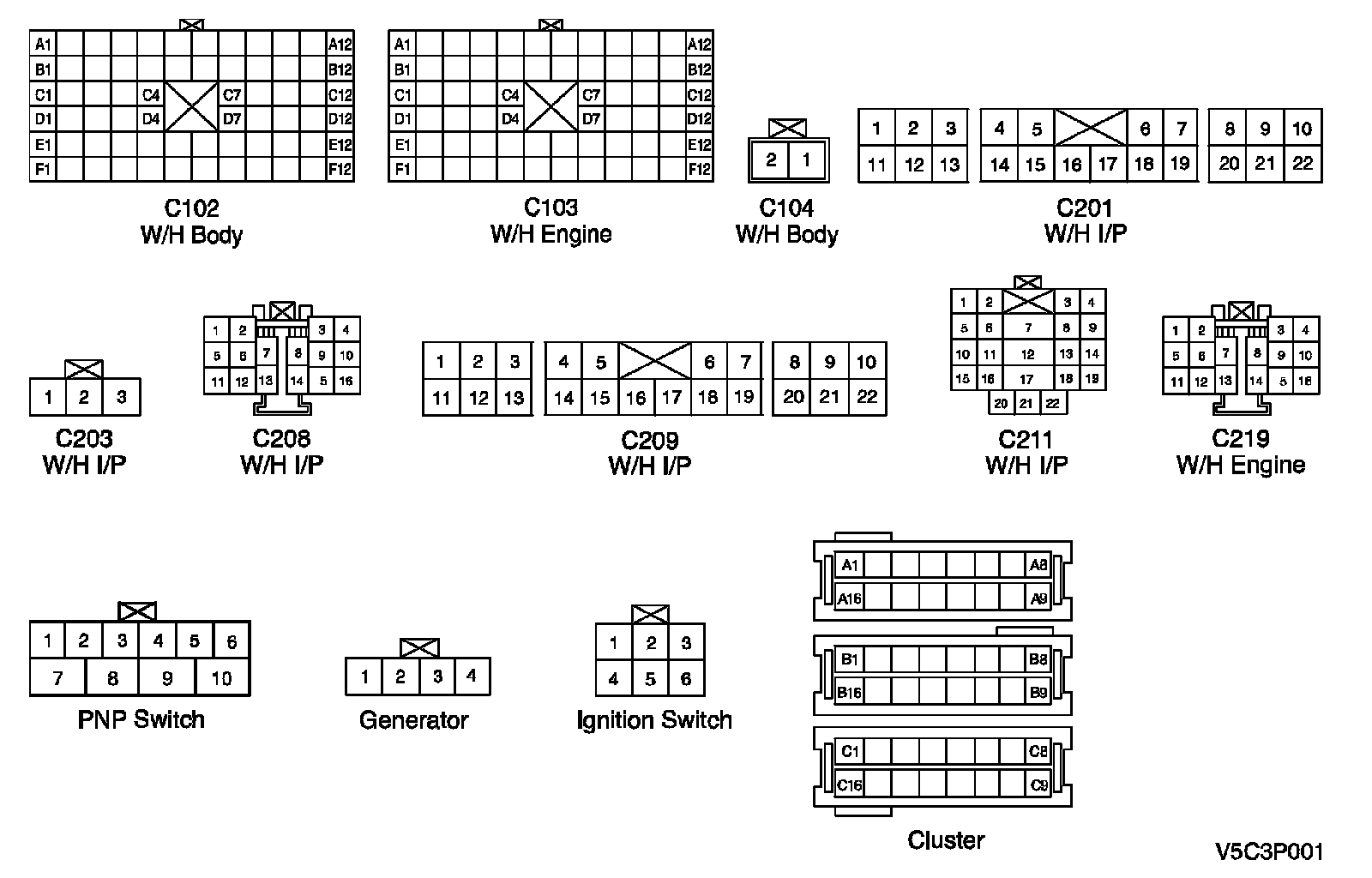

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

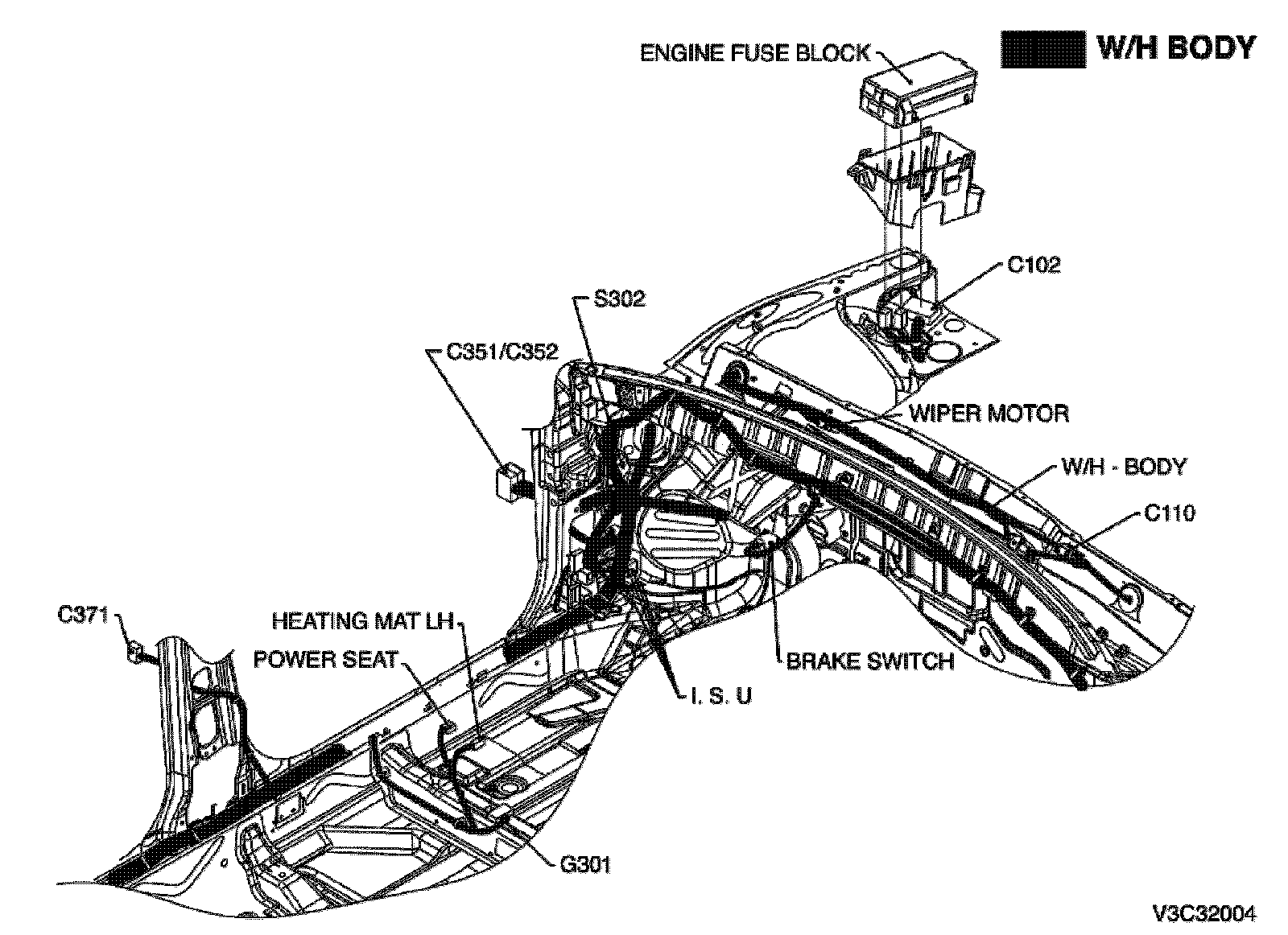

W/H Body:

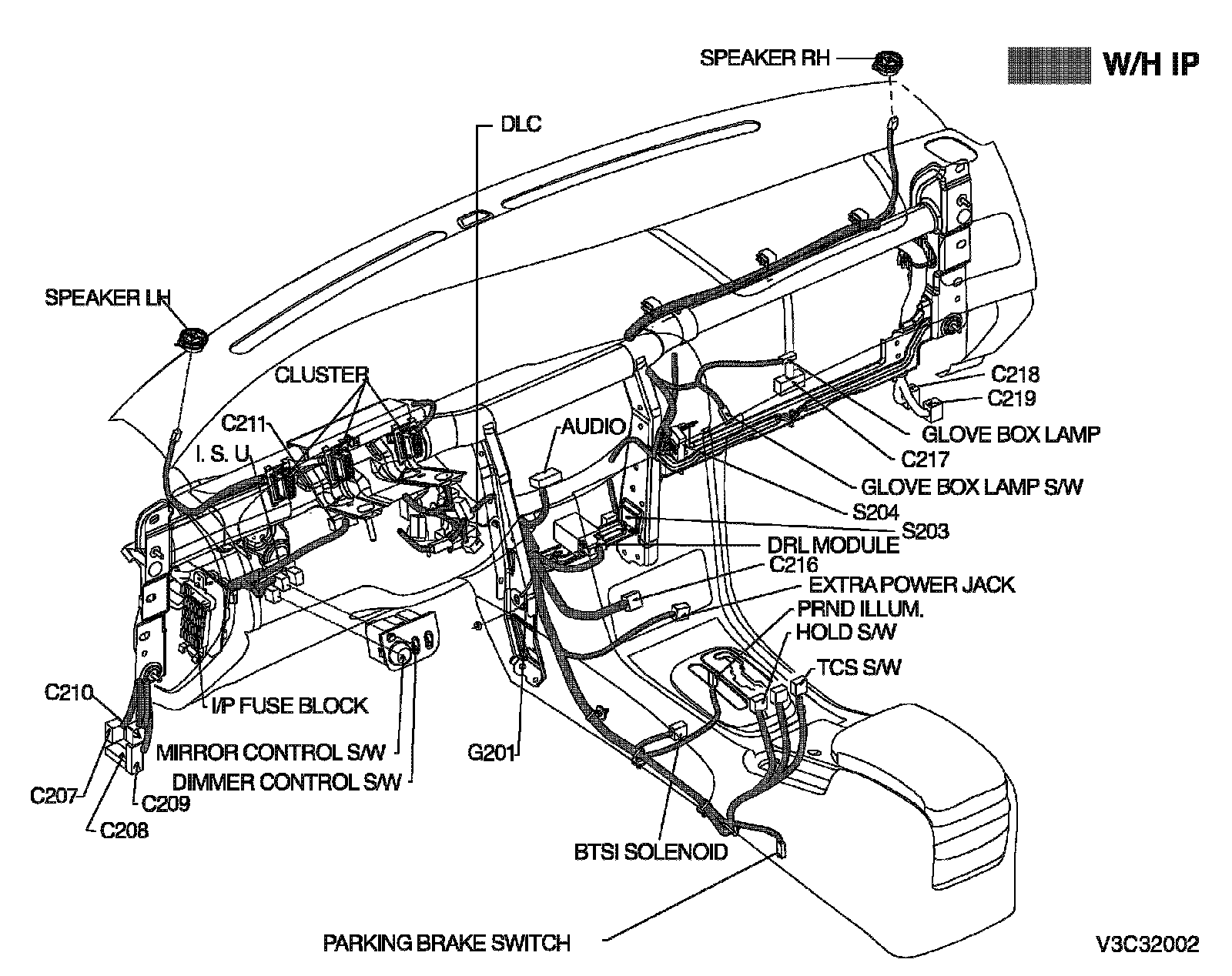

W/H Instrument Panel:
POSITION OF CONNECTORS AND GROUNDS
