Steering
SSPS (Speed Sensitive Power Steering) Circuit Diagram:
WIRING DIAGRAM
C201 - G303:

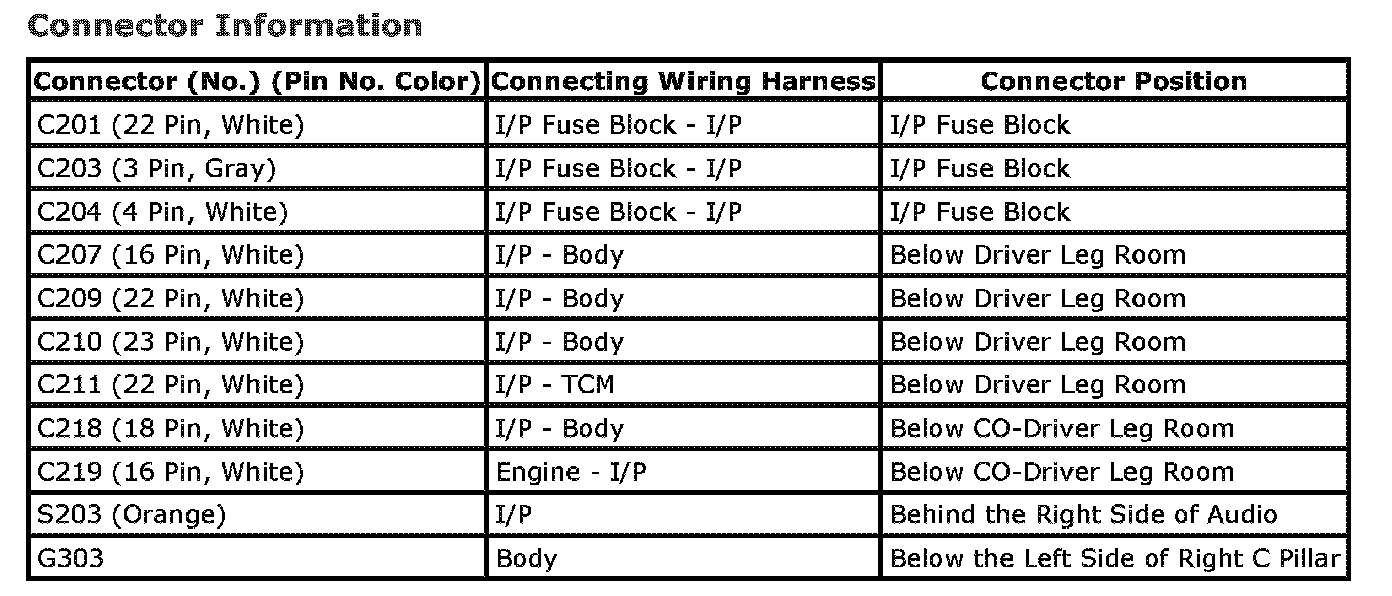

CONNECTOR INFORMATION
Connector Identification Symbol And Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

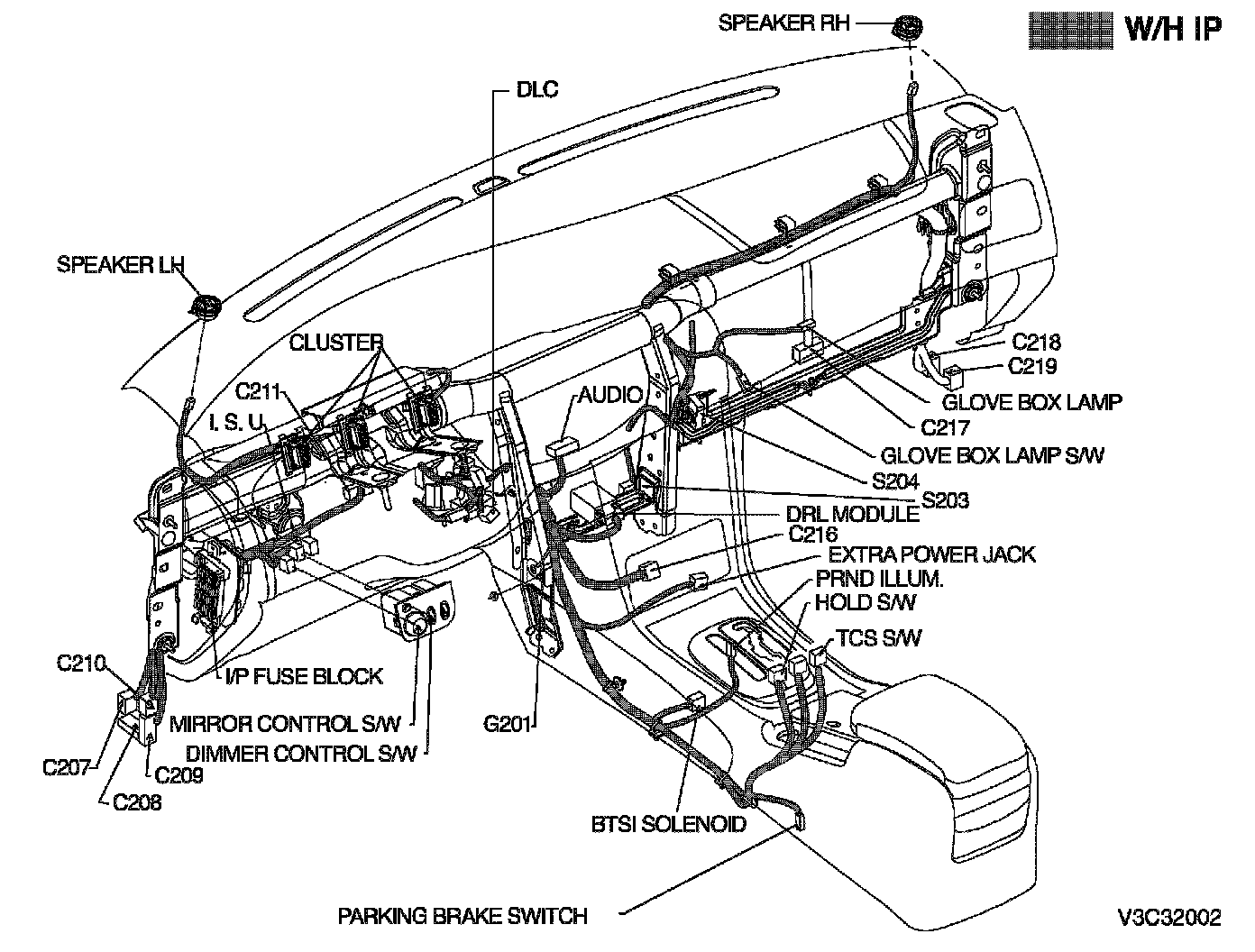

W/H INSTRUMENT PANEL:
POSITION OF CONNECTORS AND GROUNDS
S203 (ORANGE):
SPLICE PACK
