System Diagram

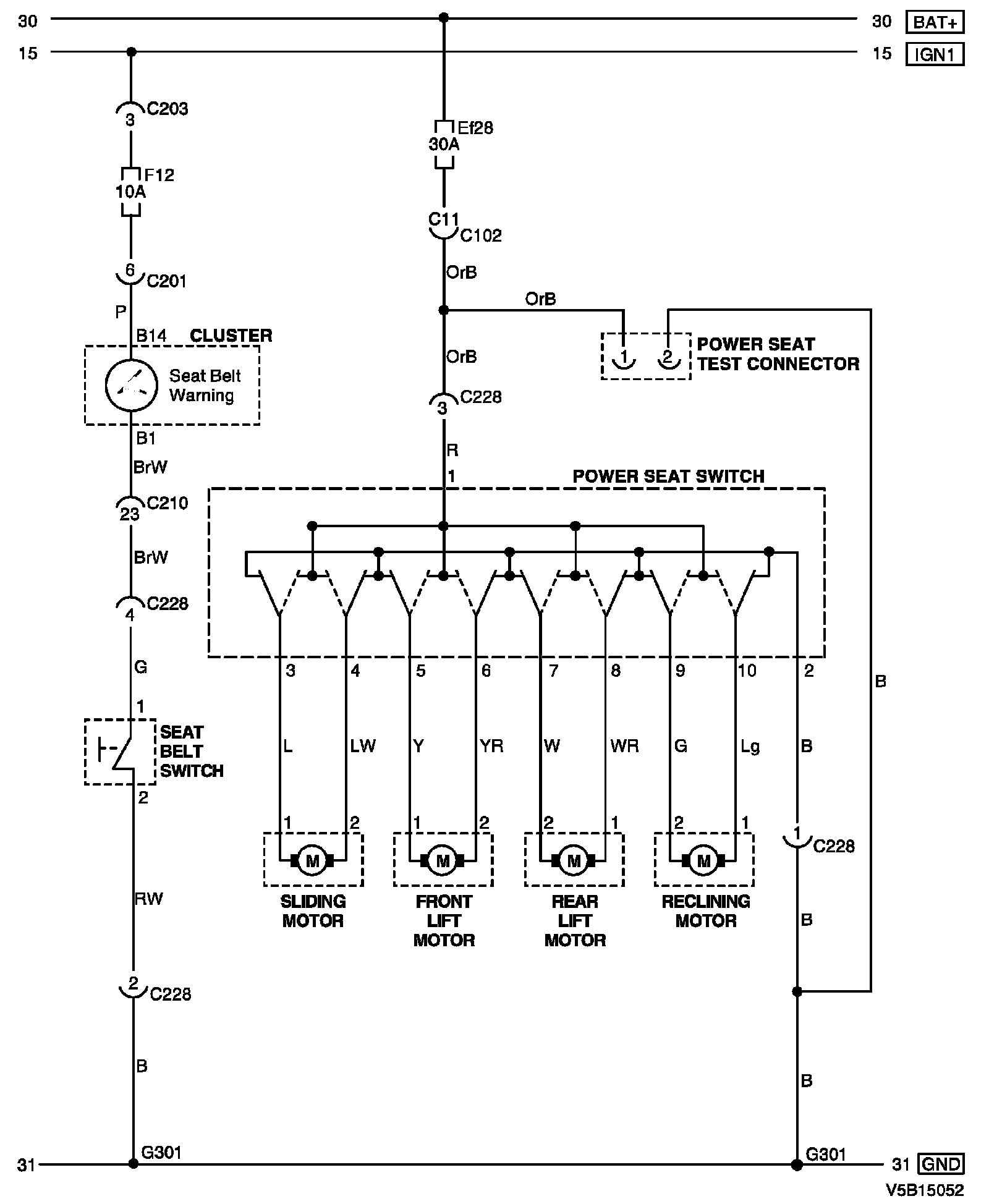

Power Seat Circuit Diagram:
WIRING DIAGRAM
C102 - G301:
CONNECTOR INFORMATION
Connector Identification Symbol And Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

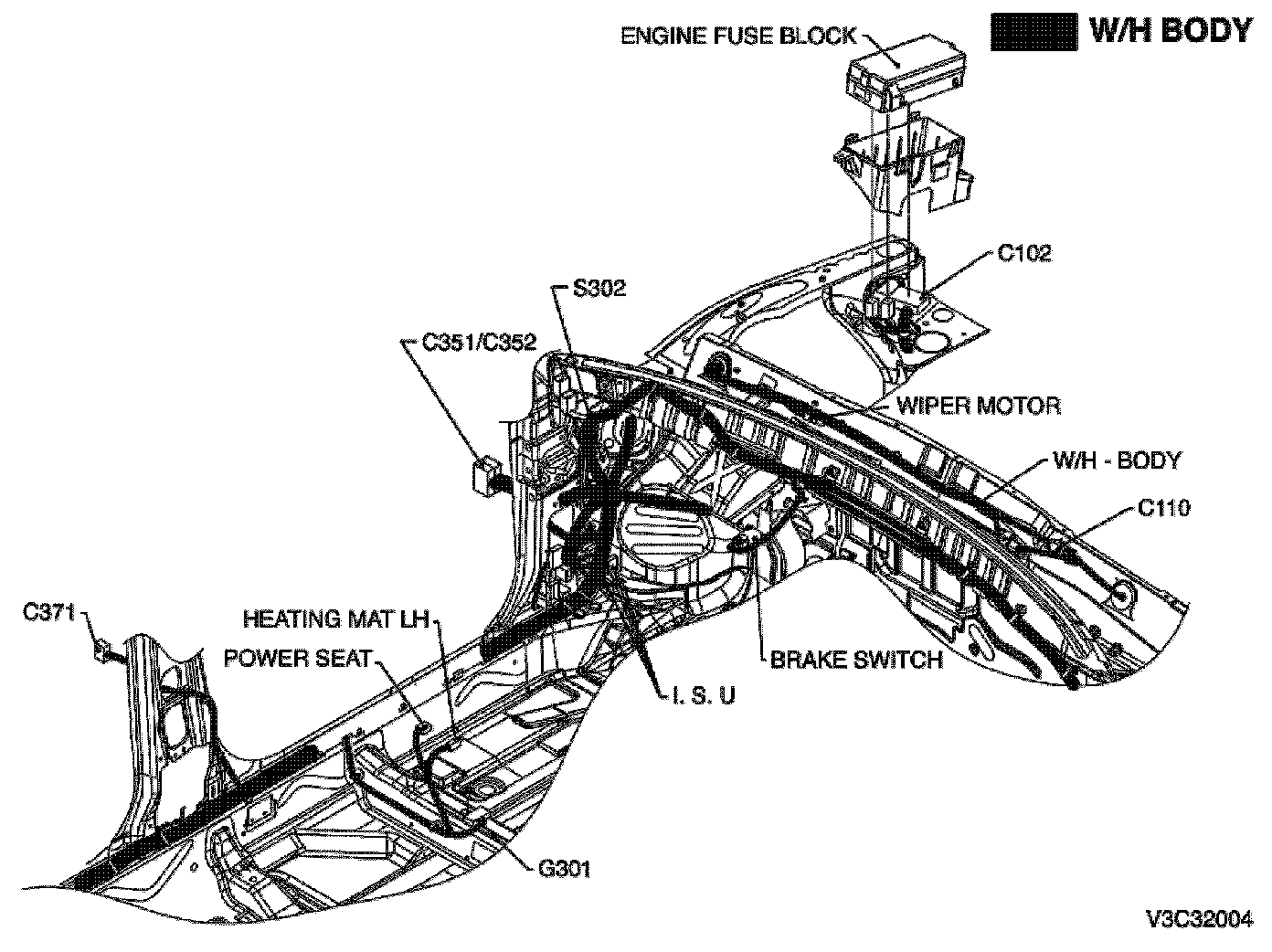

W/H BODY (LH):

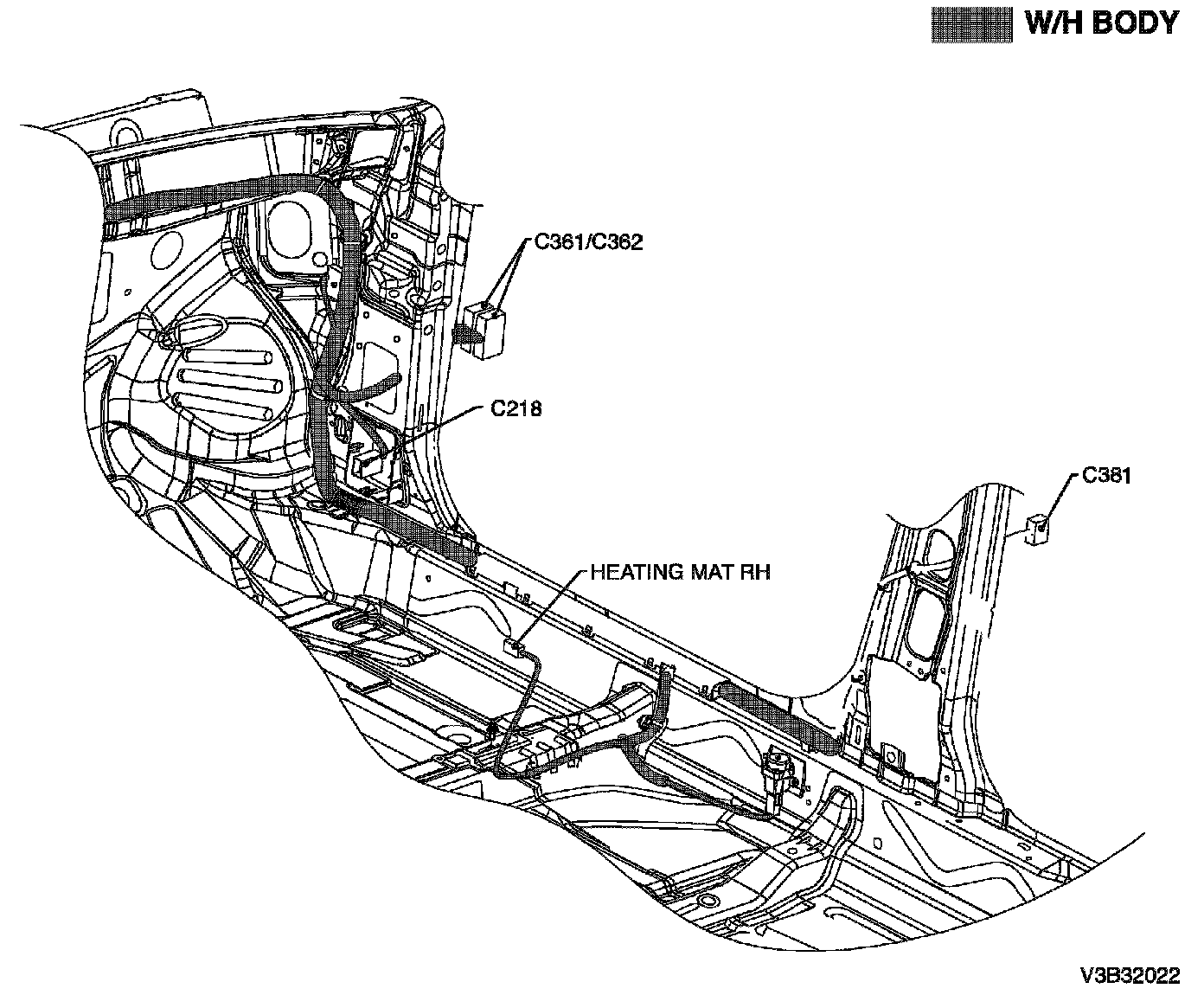

W/H BODY (RH):
POSITION OF CONNECTORS AND GROUNDS
