Marker Lamp

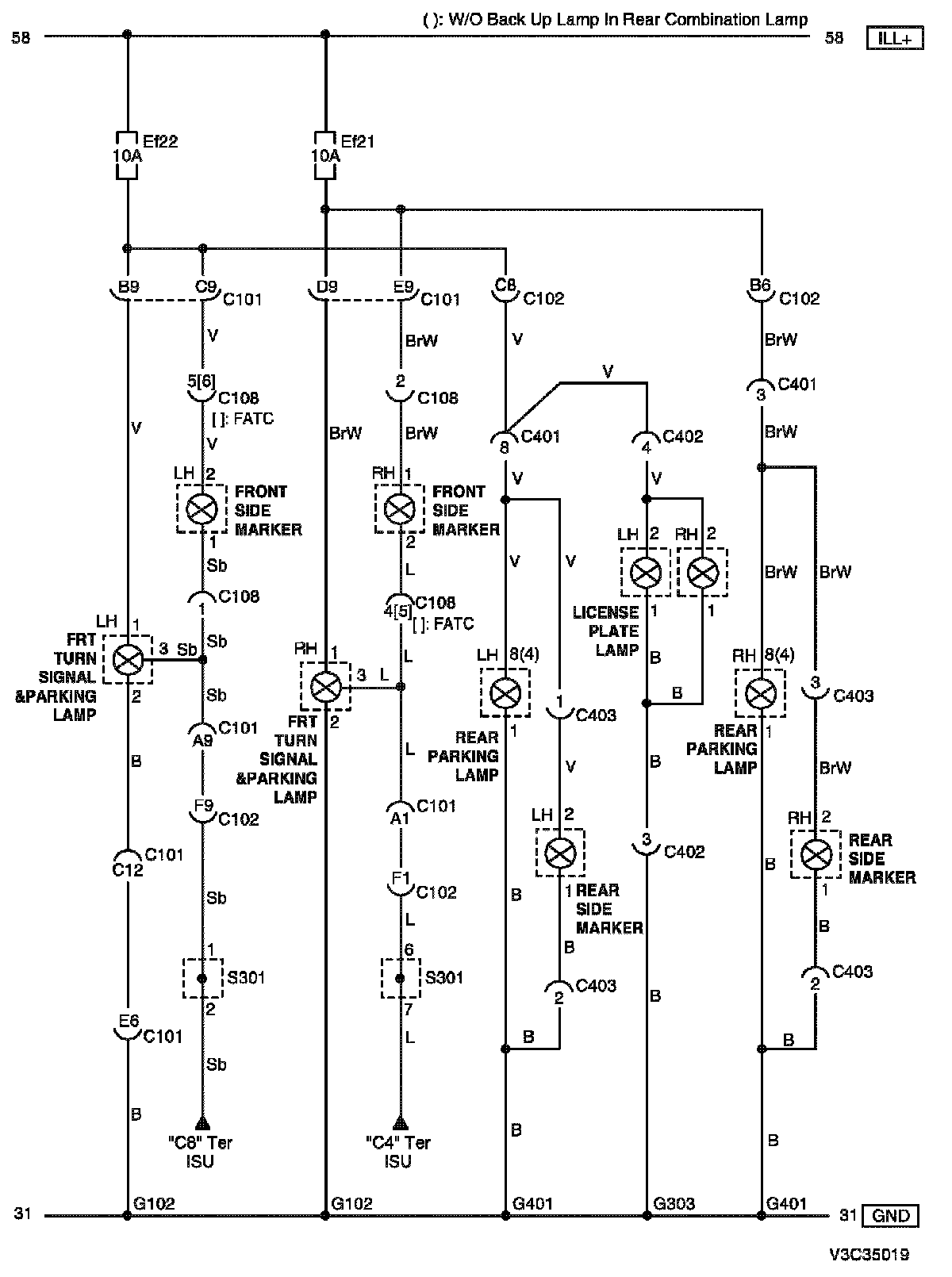

License Plate Lamp, Front Turn Signal and Parking Lamp, Side Marker and Rear Parking Lamp Circuit Diagram:
WIRING DIAGRAM
C101 - G401:

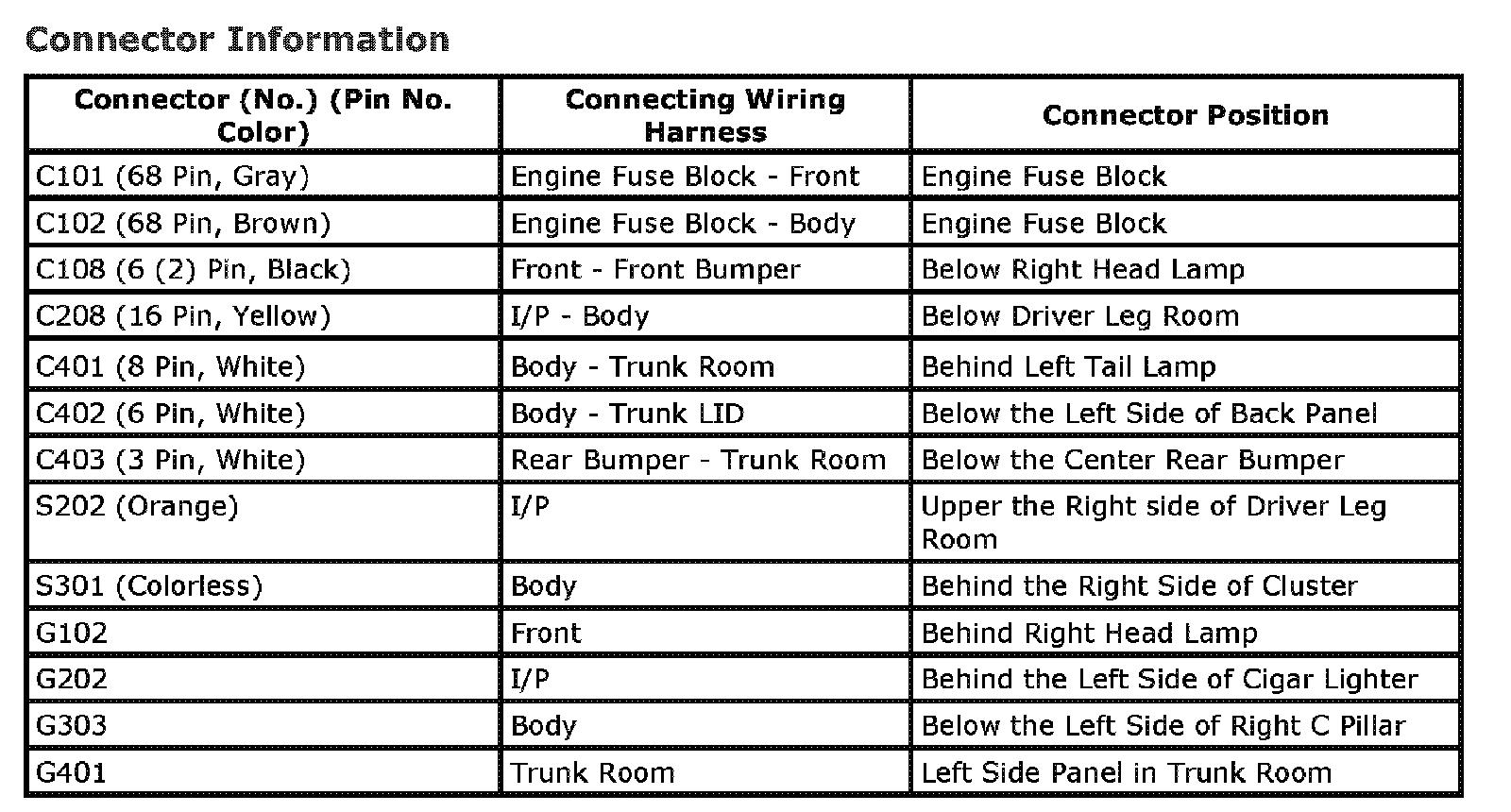

CONNECTOR INFORMATION
Connector Identification Symbol And Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

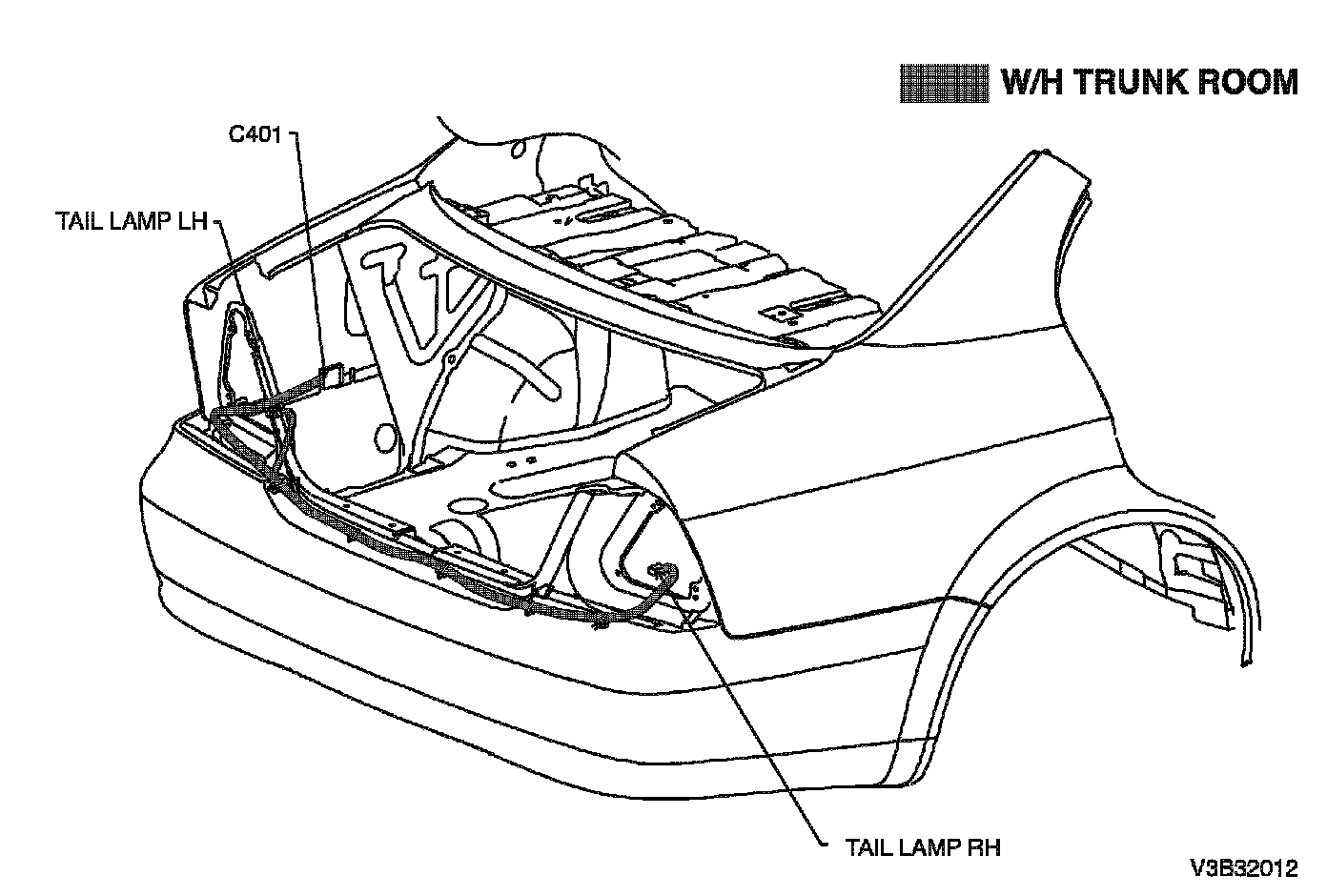

W/H TRUNK ROOM:

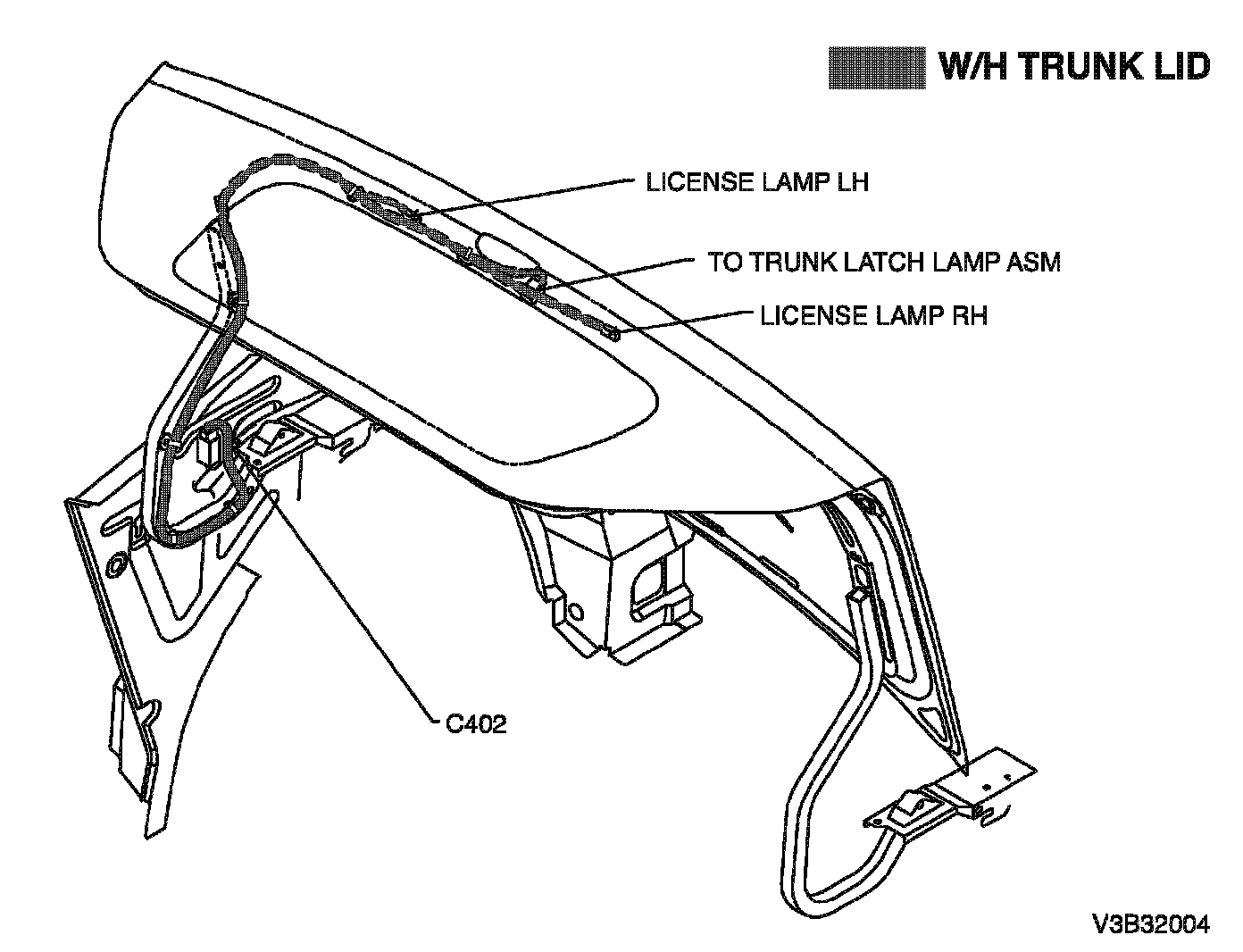

W/H TRUNK LID:
POSITION OF CONNECTORS AND GROUNDS
S301 (COLORLESS):
SPLICE PACK
