Horn

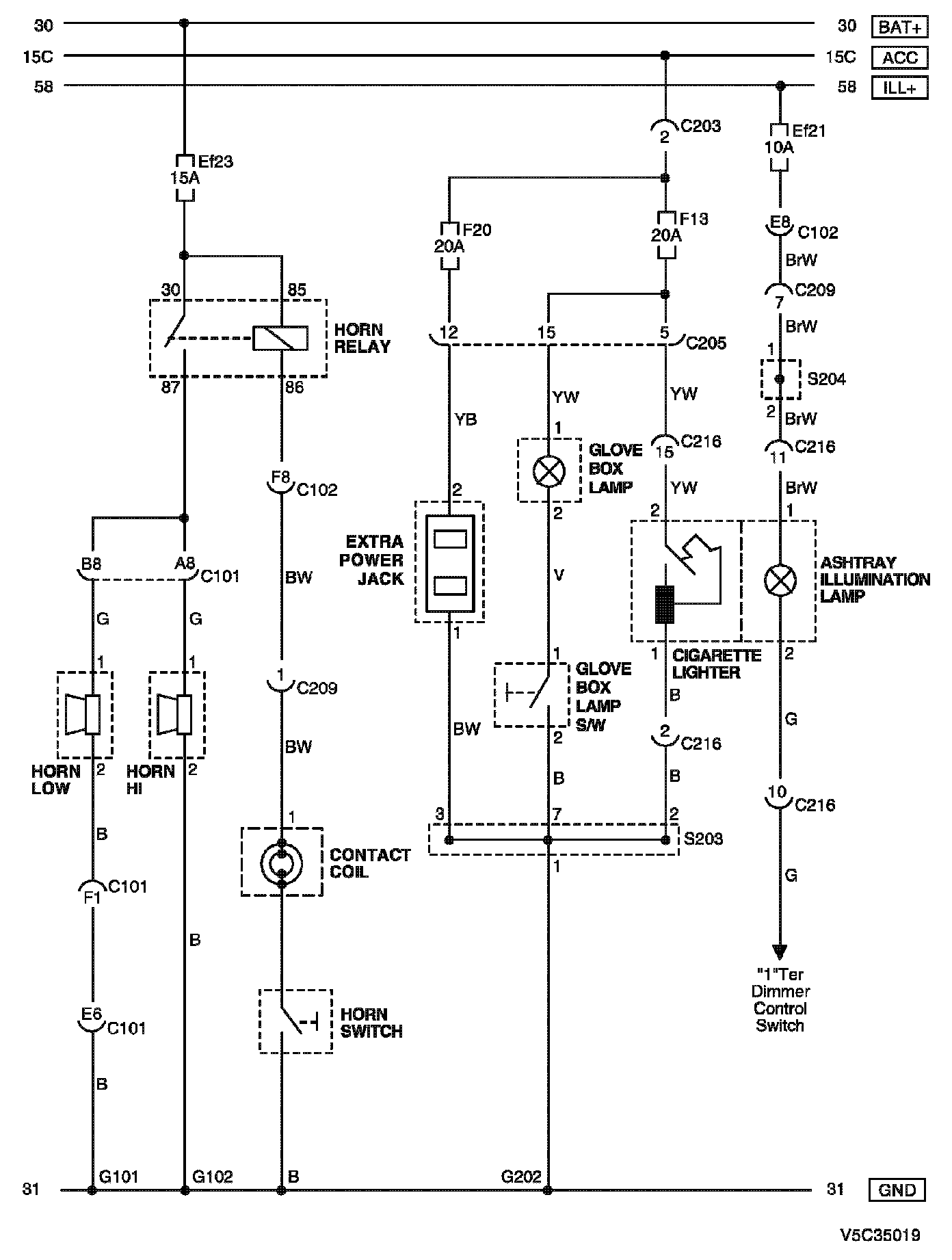

Horn, Extra Power Jack, Cigarette Lighter and Ashtray, Illumination Lamp Circuit Diagram:
WIRING DIAGRAM

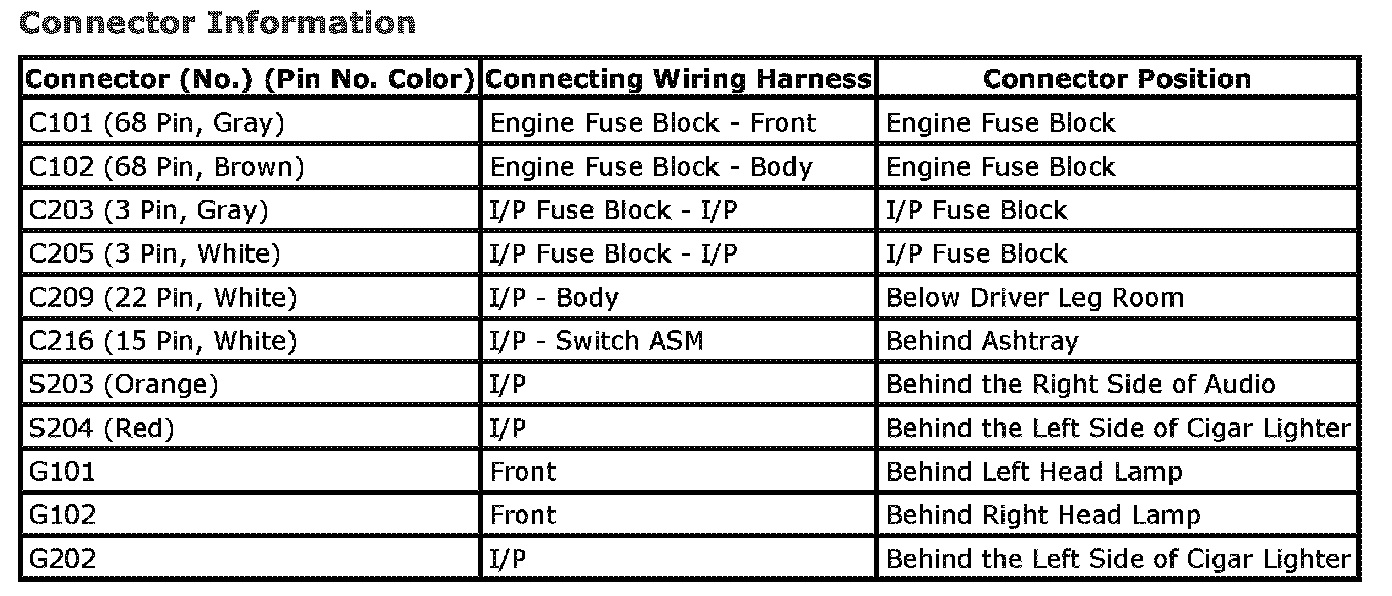

C101 - G202:
CONNECTOR INFORMATION
Connector Identification Symbol And Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

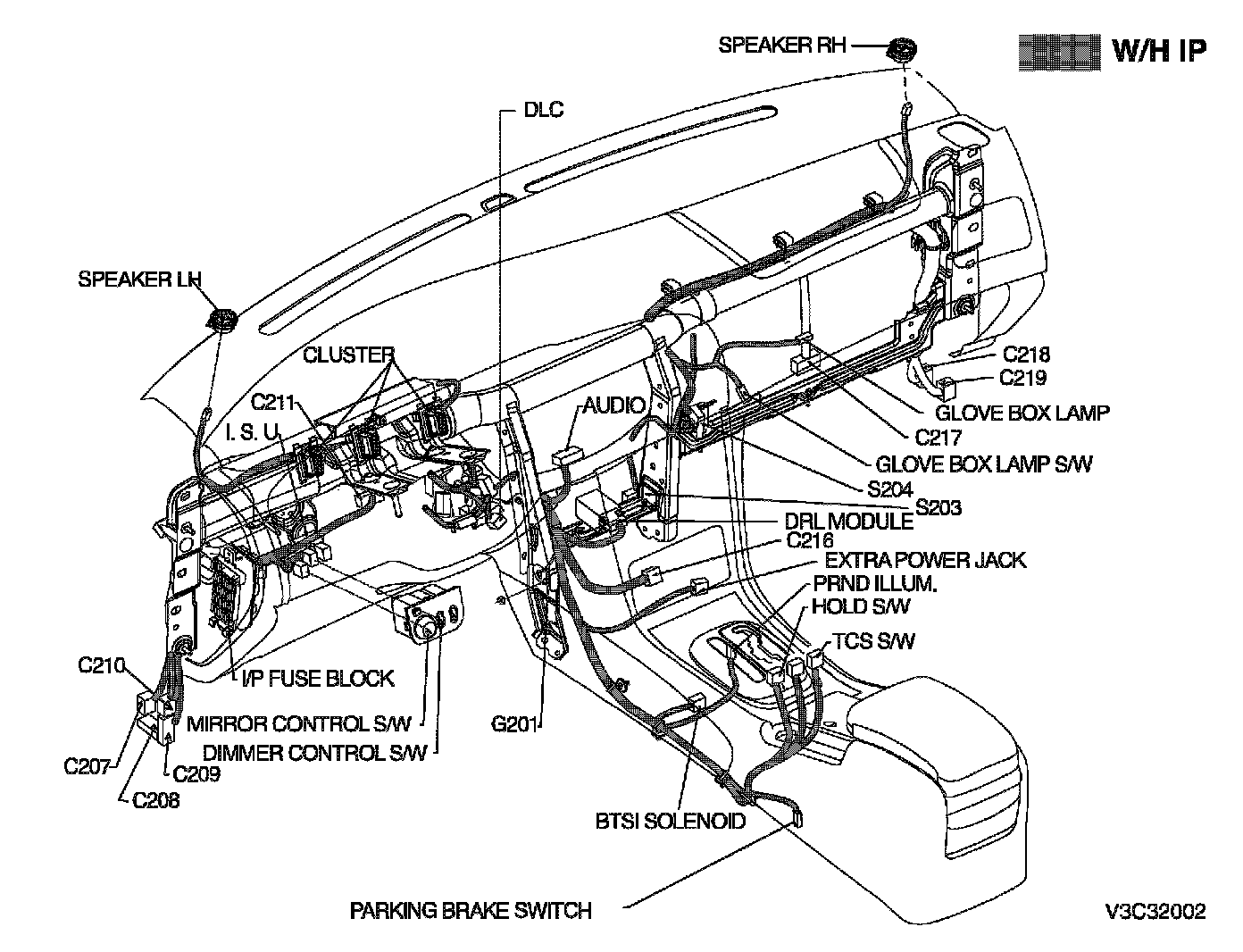

W/H INSTRUMENT PANEL:
POSITION OF CONNECTORS AND GROUNDS
S203 (ORANGE):
S204 (RED):
SPLICE PACK
