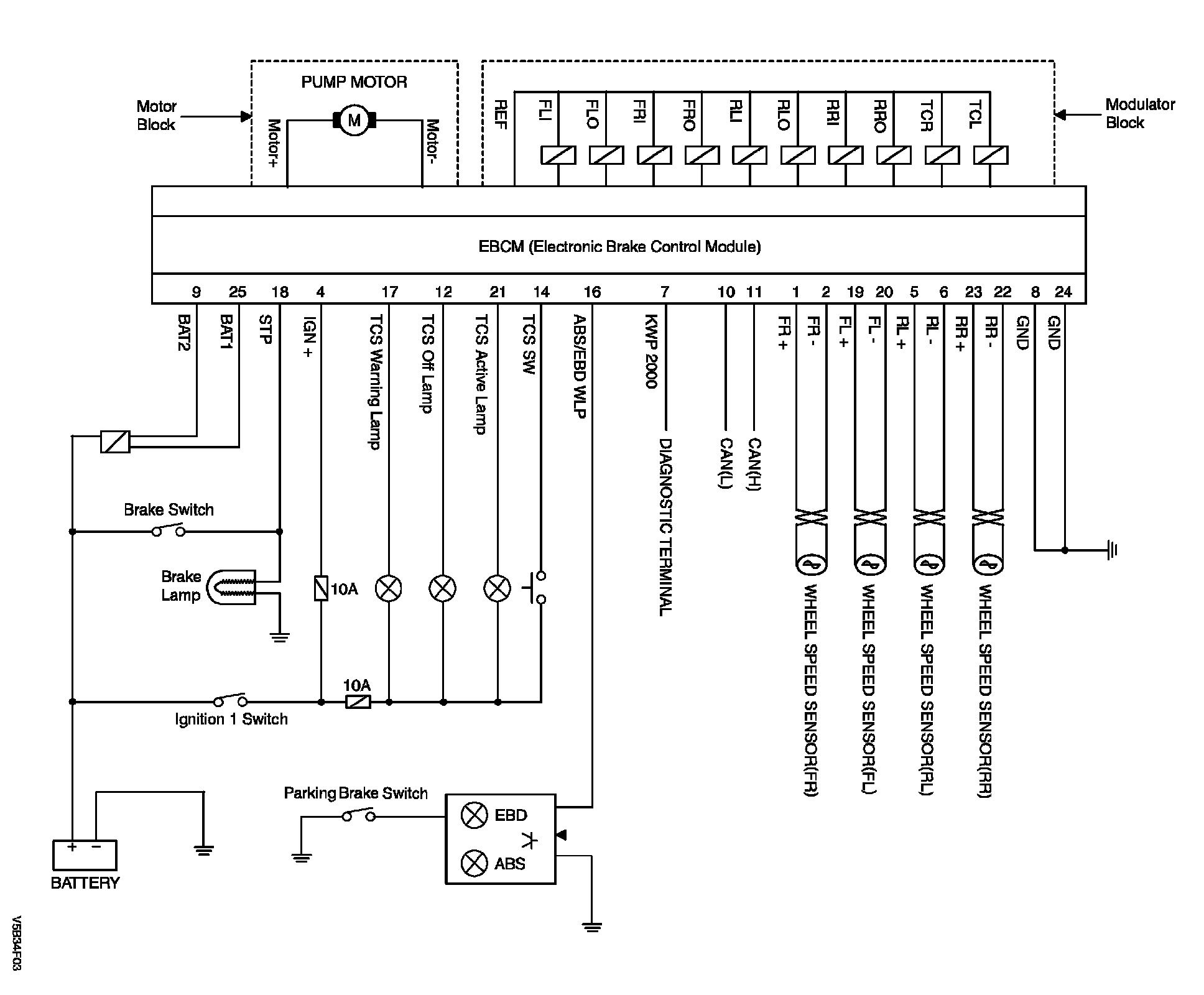

Electrical Schematic Diagram - ABS With FTCS (Full - Function TCS)

Electrical Schematic Diagram - ABS With FTCS (Full - Function TCS):
