Wiper Circuit

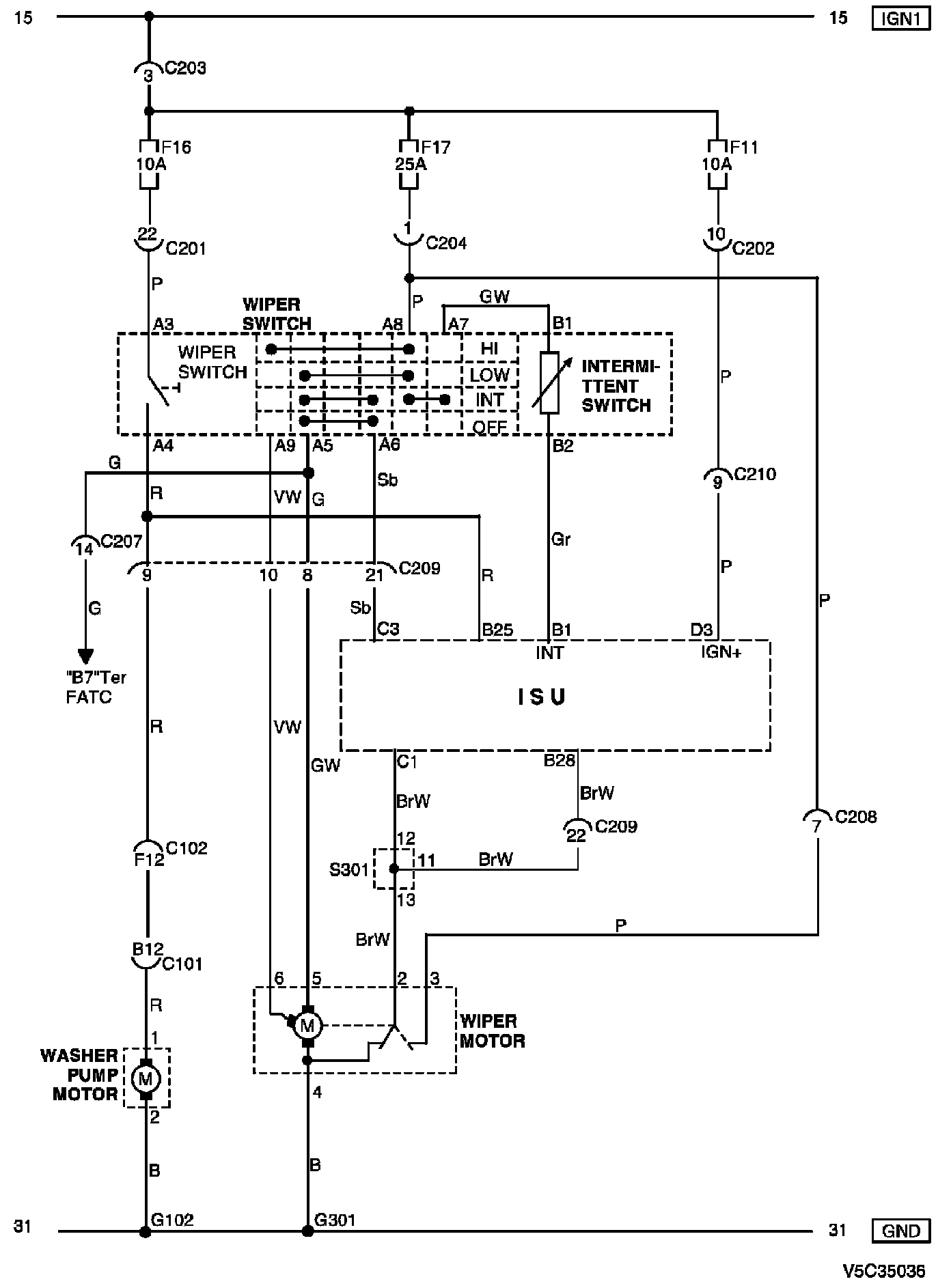

Wiper Circuit Diagram:
WIRING DIAGRAM

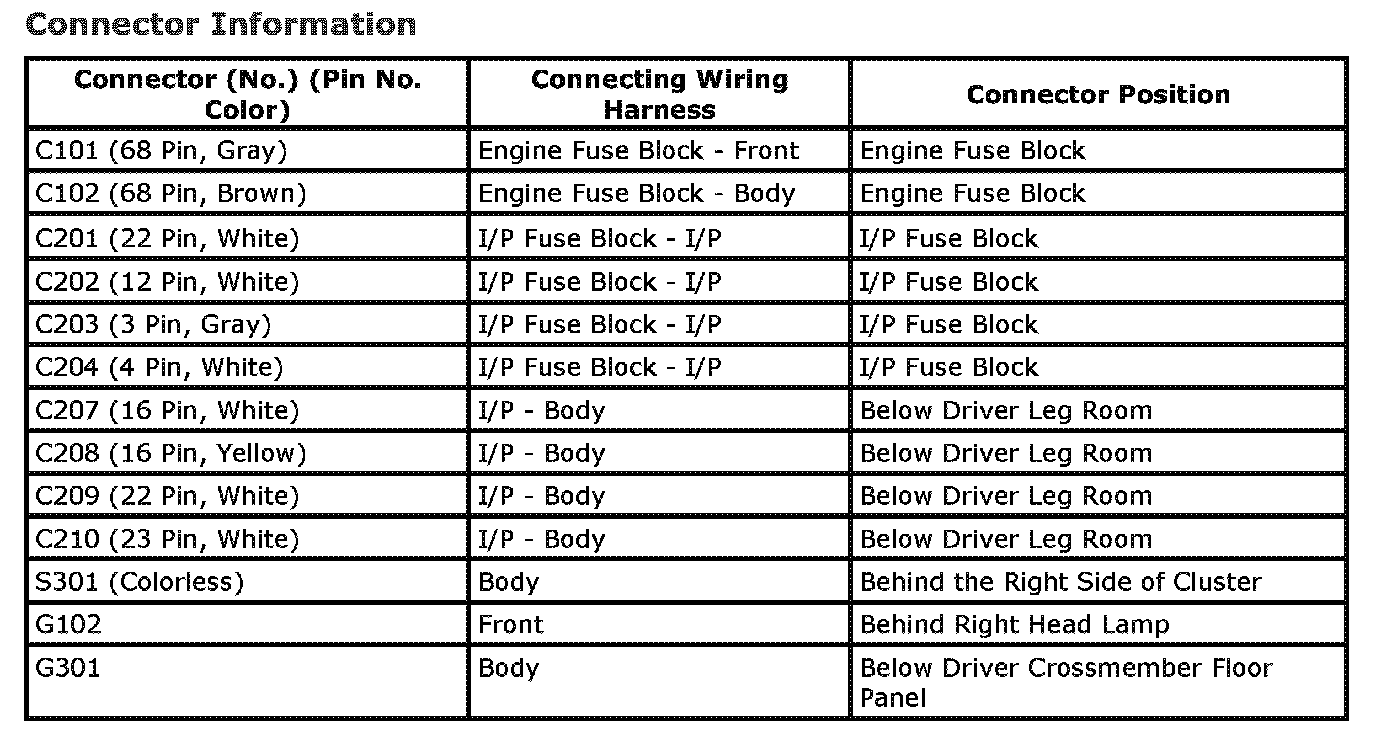

C101 - G301:
CONNECTOR INFORMATION

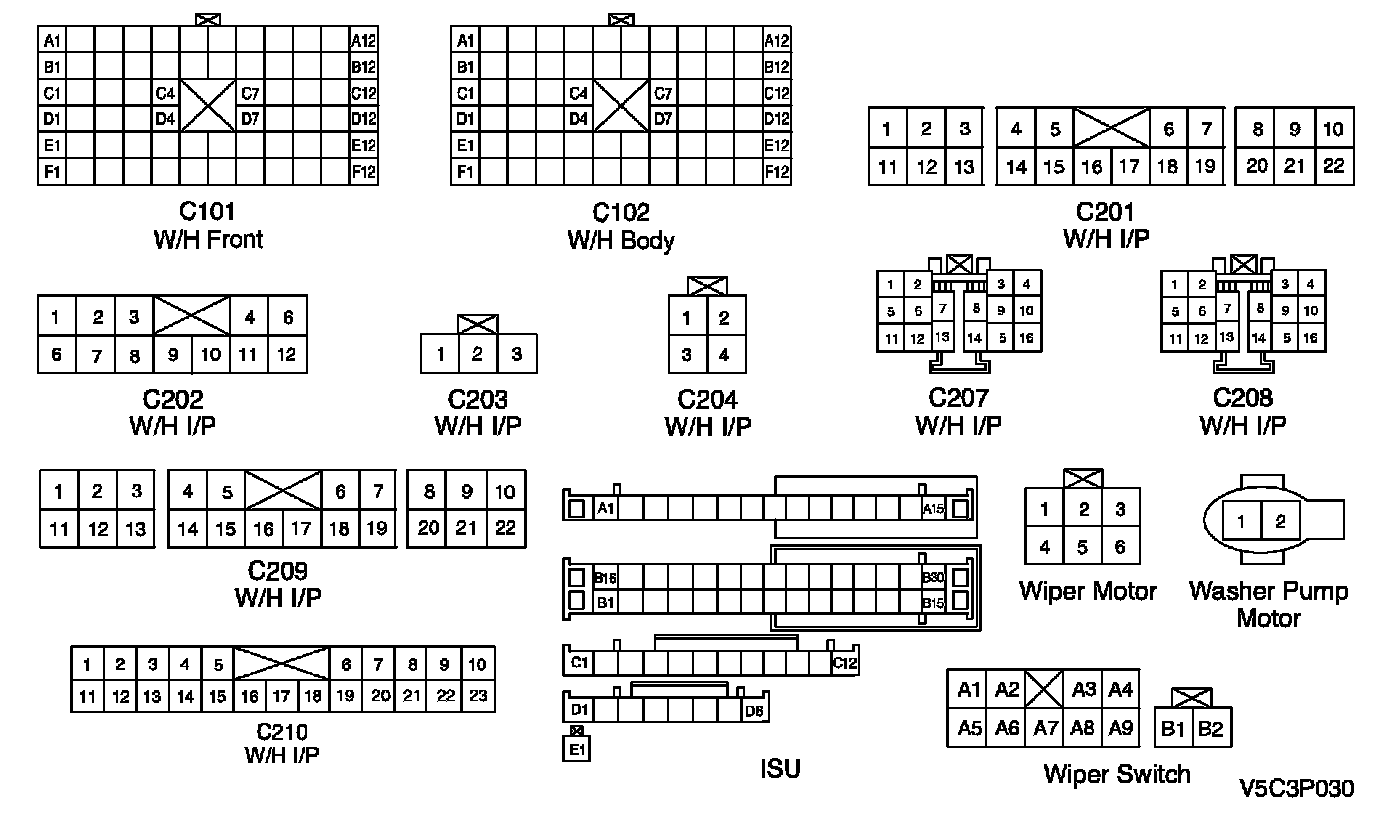

Connector Identification Symbol And Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

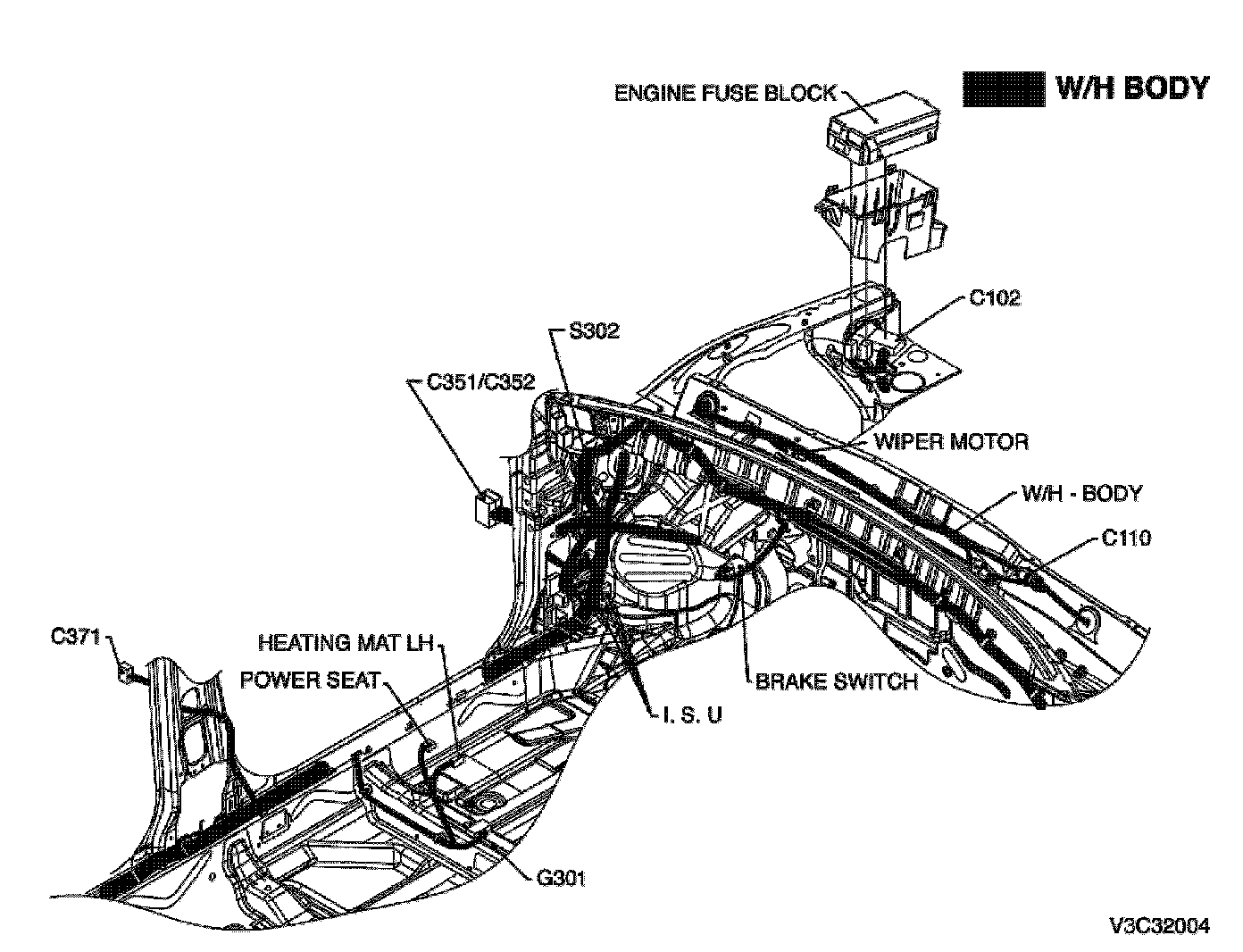

W/H BODY:
POSITION OF CONNECTORS AND GROUNDS
S201 (ORANGE):
SPLICE PACK
