Sun Visor, Lamp (Room, Map, Step) and Door Contact Switch Circuit

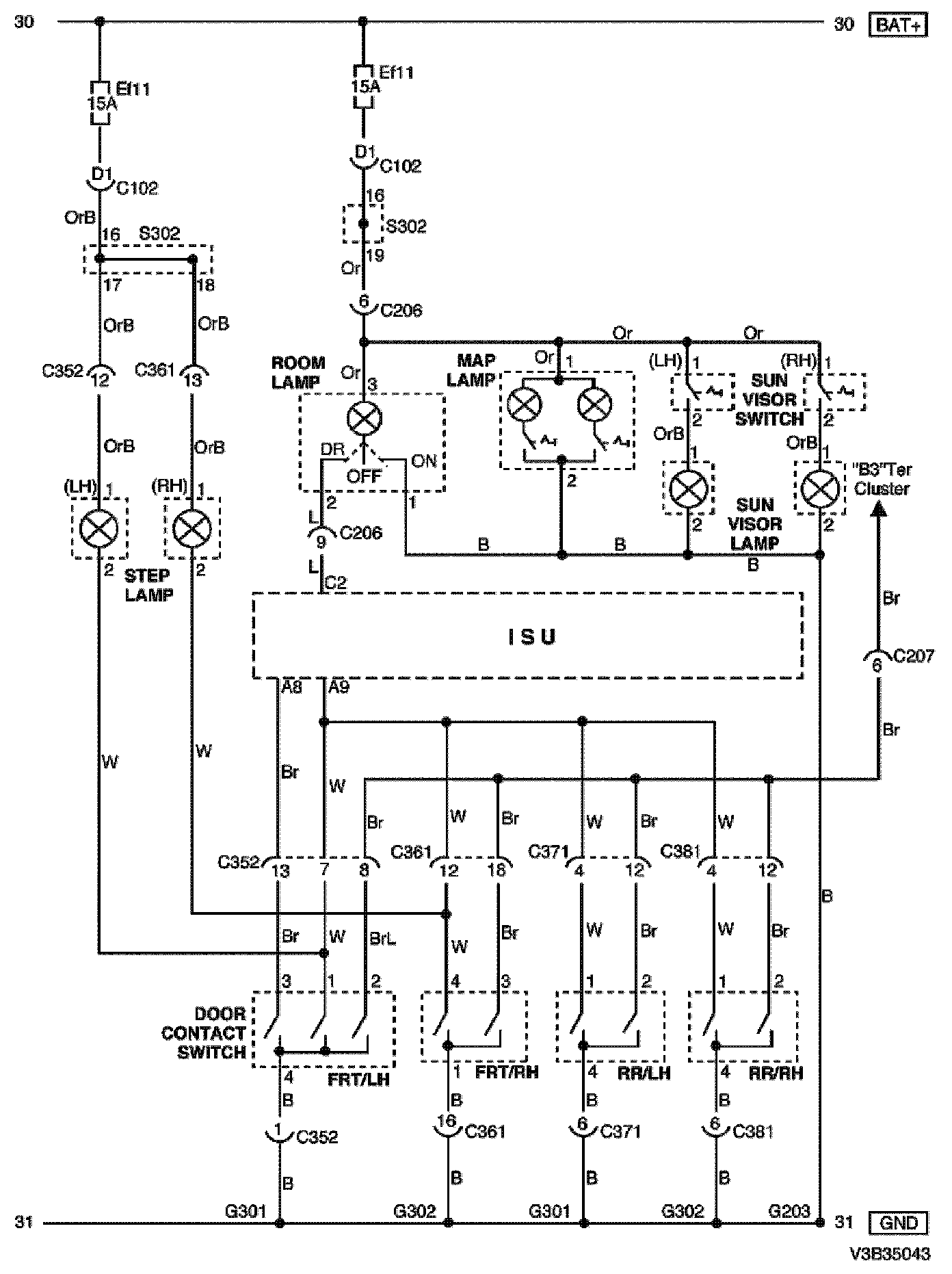

Sun Visor, Lamp (Room, Map, Step) and Door Contact Switch Circuit Diagram:
WIRING DIAGRAM
C102 - G302:

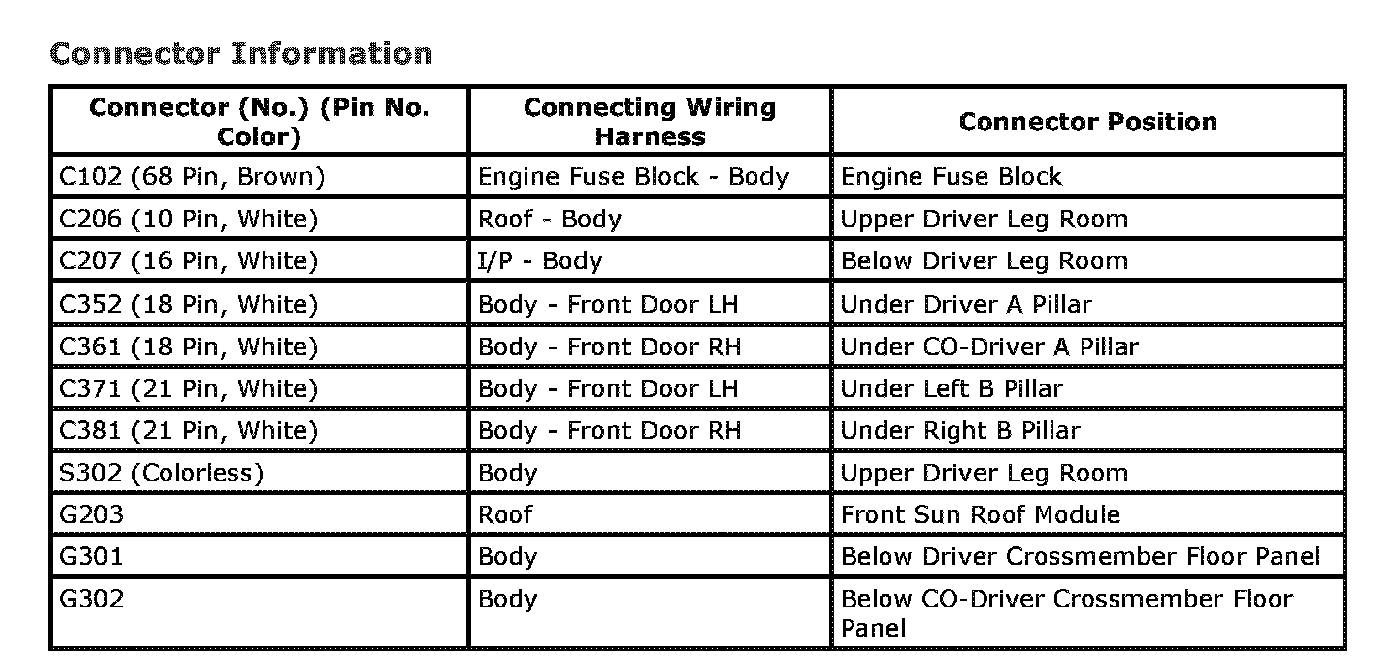

CONNECTOR INFORMATION
Connector Identification Symbol And Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

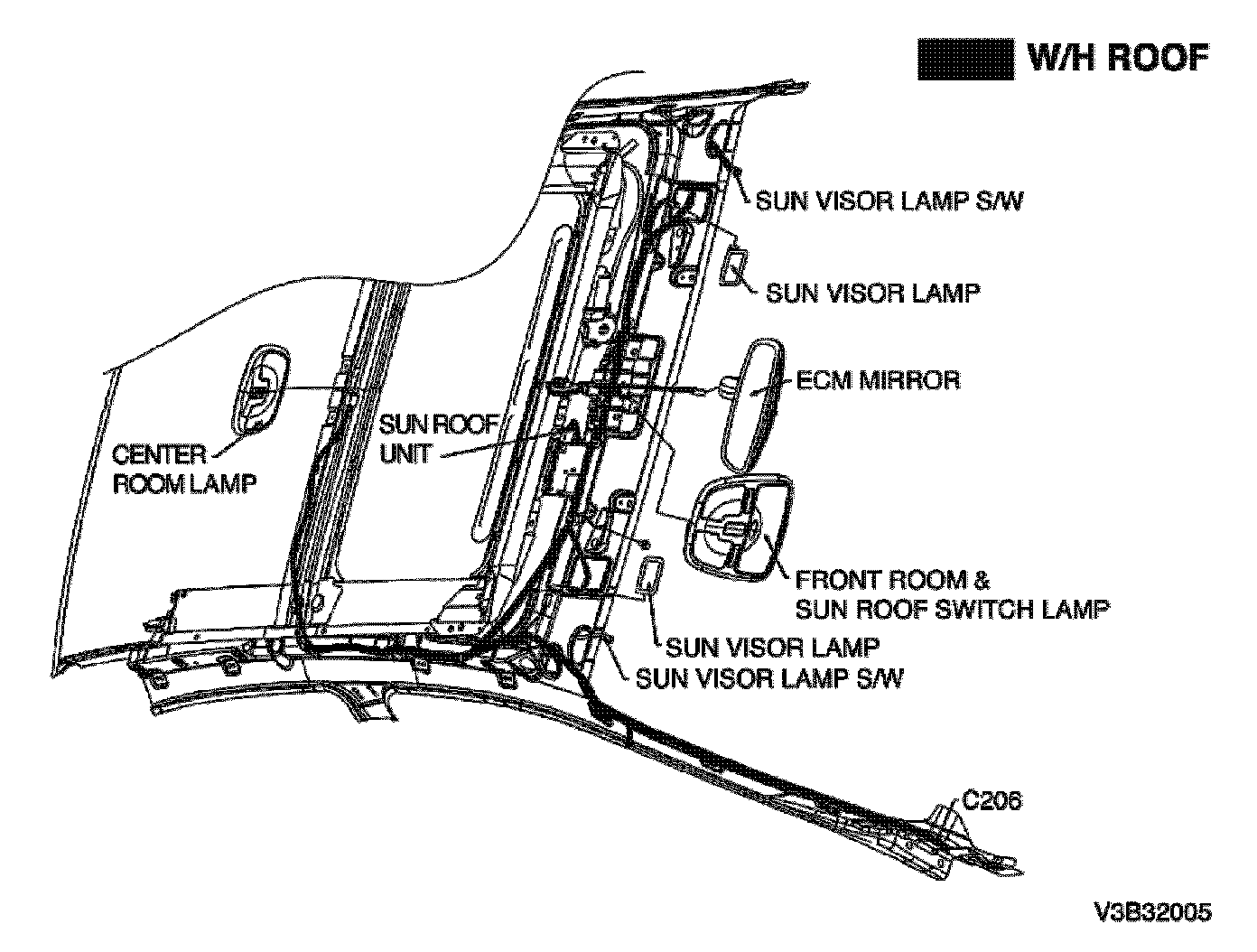

W/H ROOF (WITH SUNROOF):

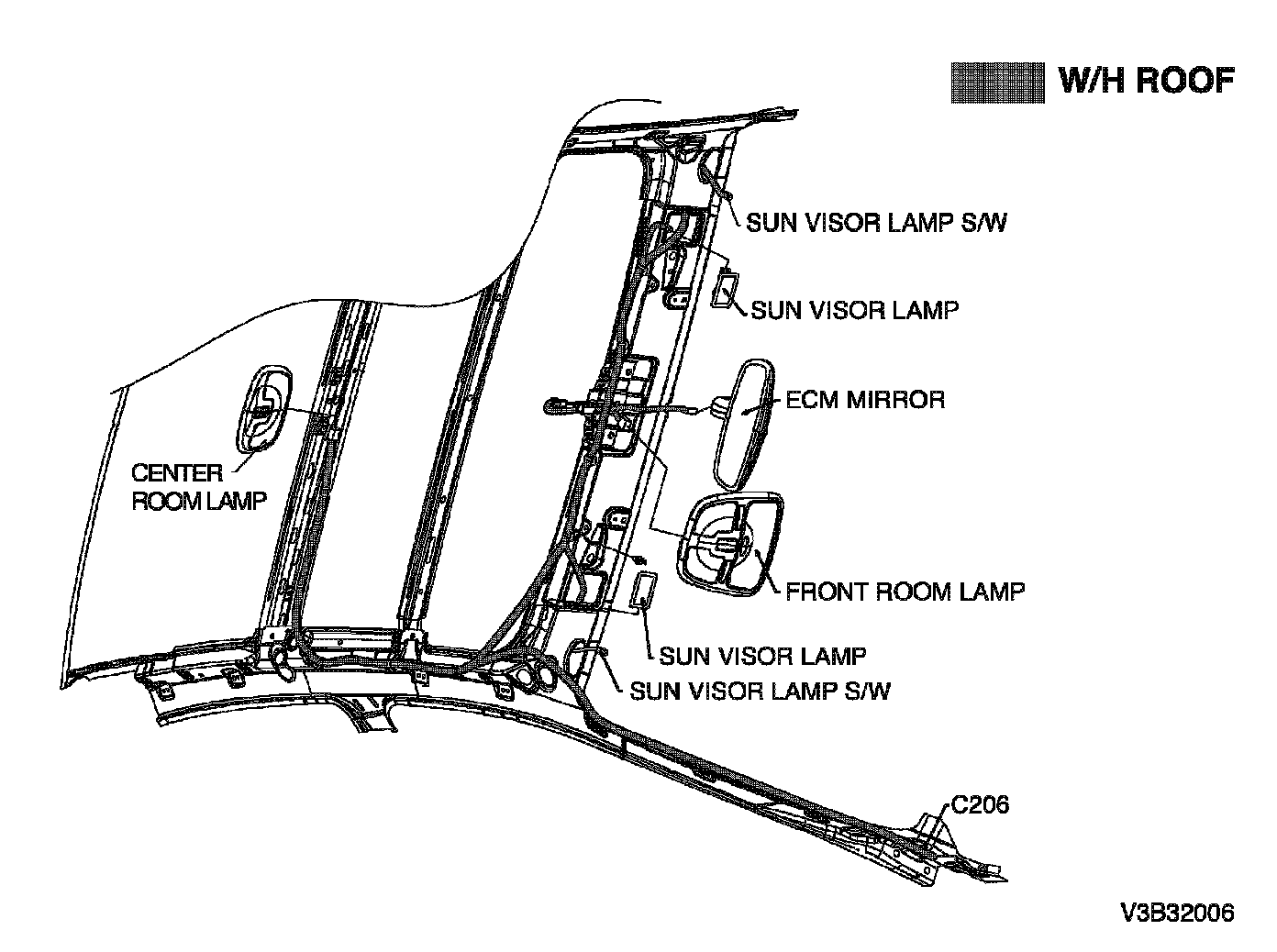

W/H ROOF (WITHOUT SUNROOF):
POSITION OF CONNECTORS AND GROUNDS
S302 (COLORLESS):
SPLICE PACK
