Anti Theft Indicator, Door Tamper Switch and Siren Circuit

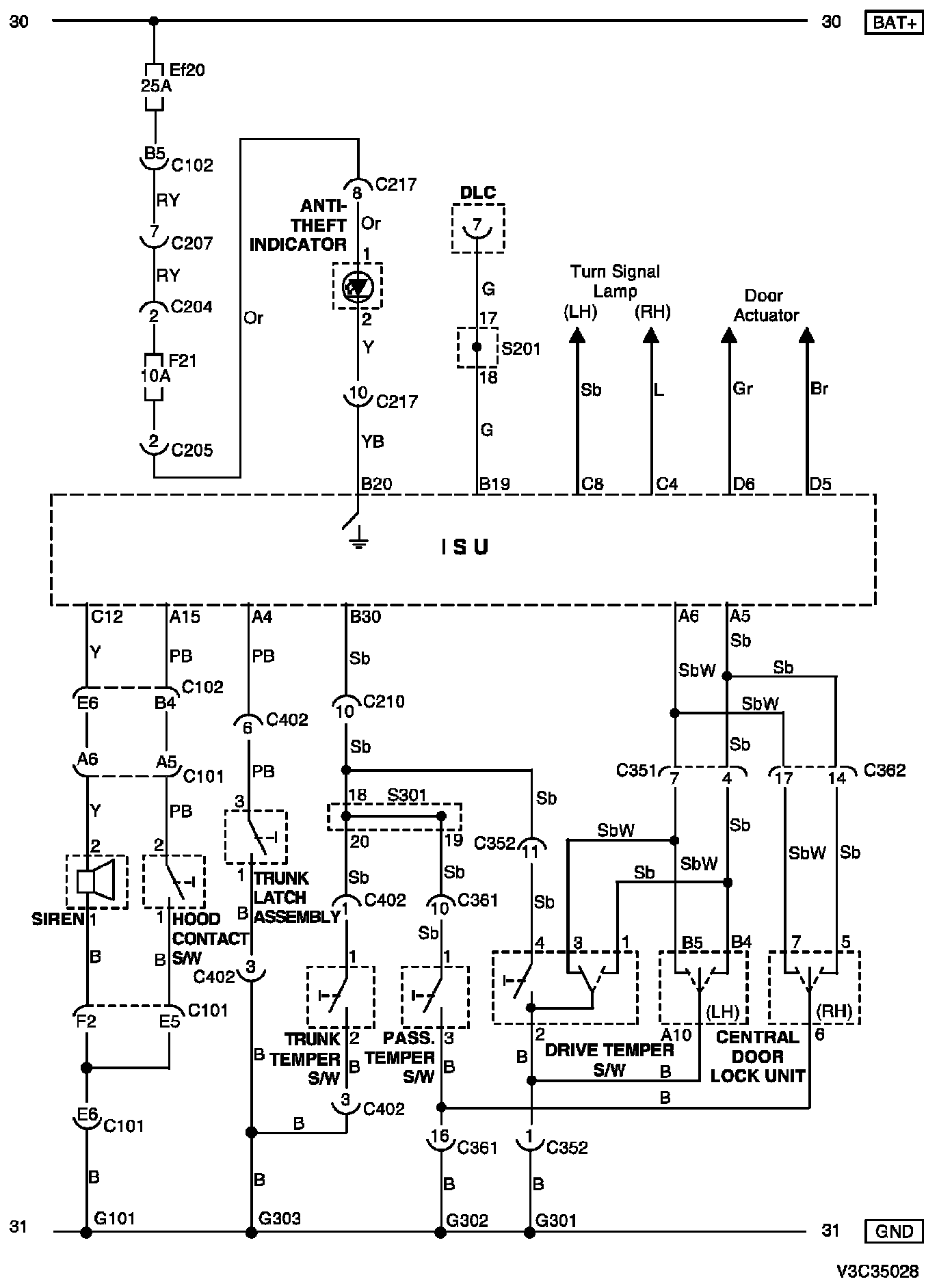

Anti Theft Indicator, Door Tamper Switch and Siren Circuit Diagram:
WIRING DIAGRAM
C101 - G303:

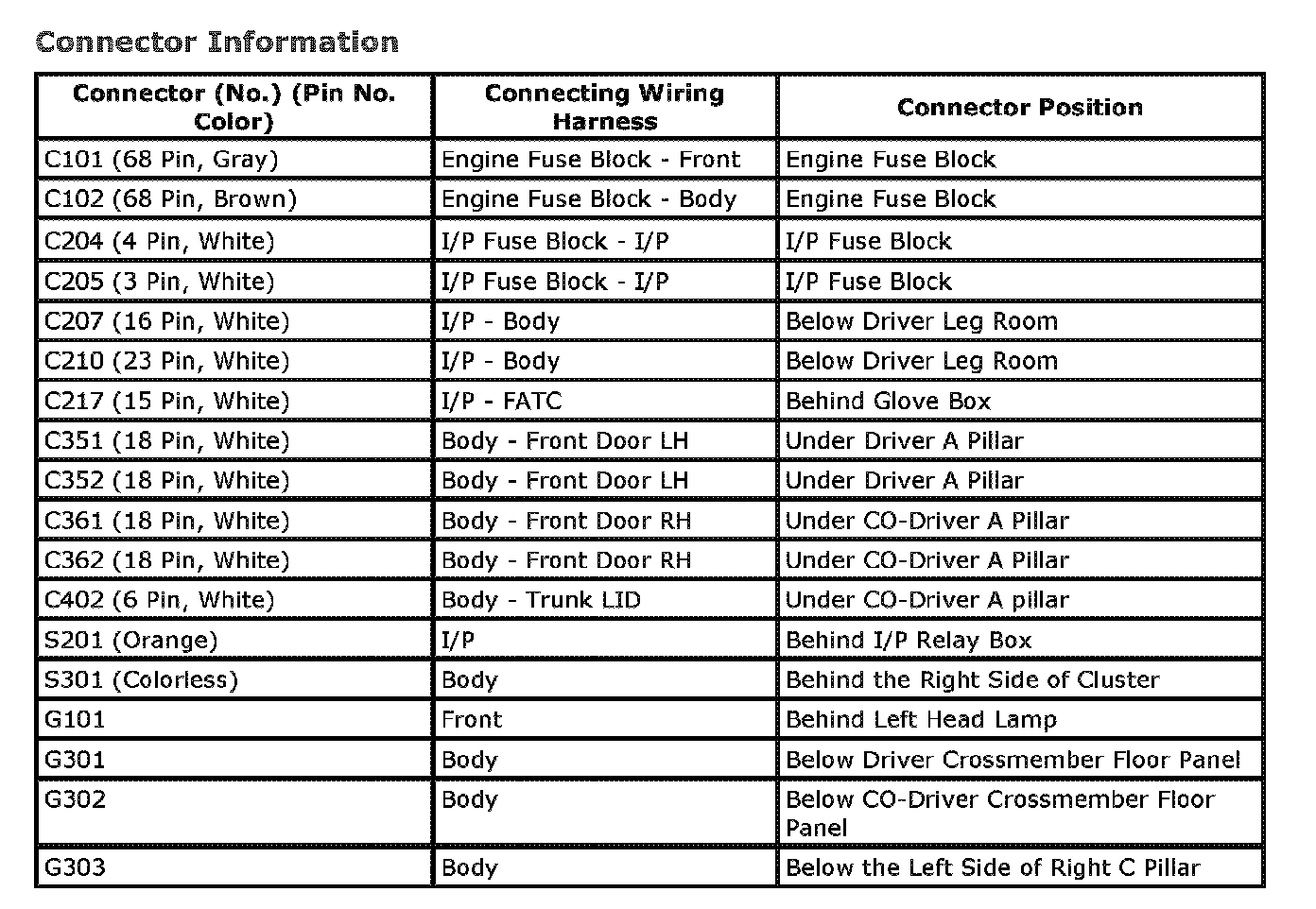

CONNECTOR INFORMATION

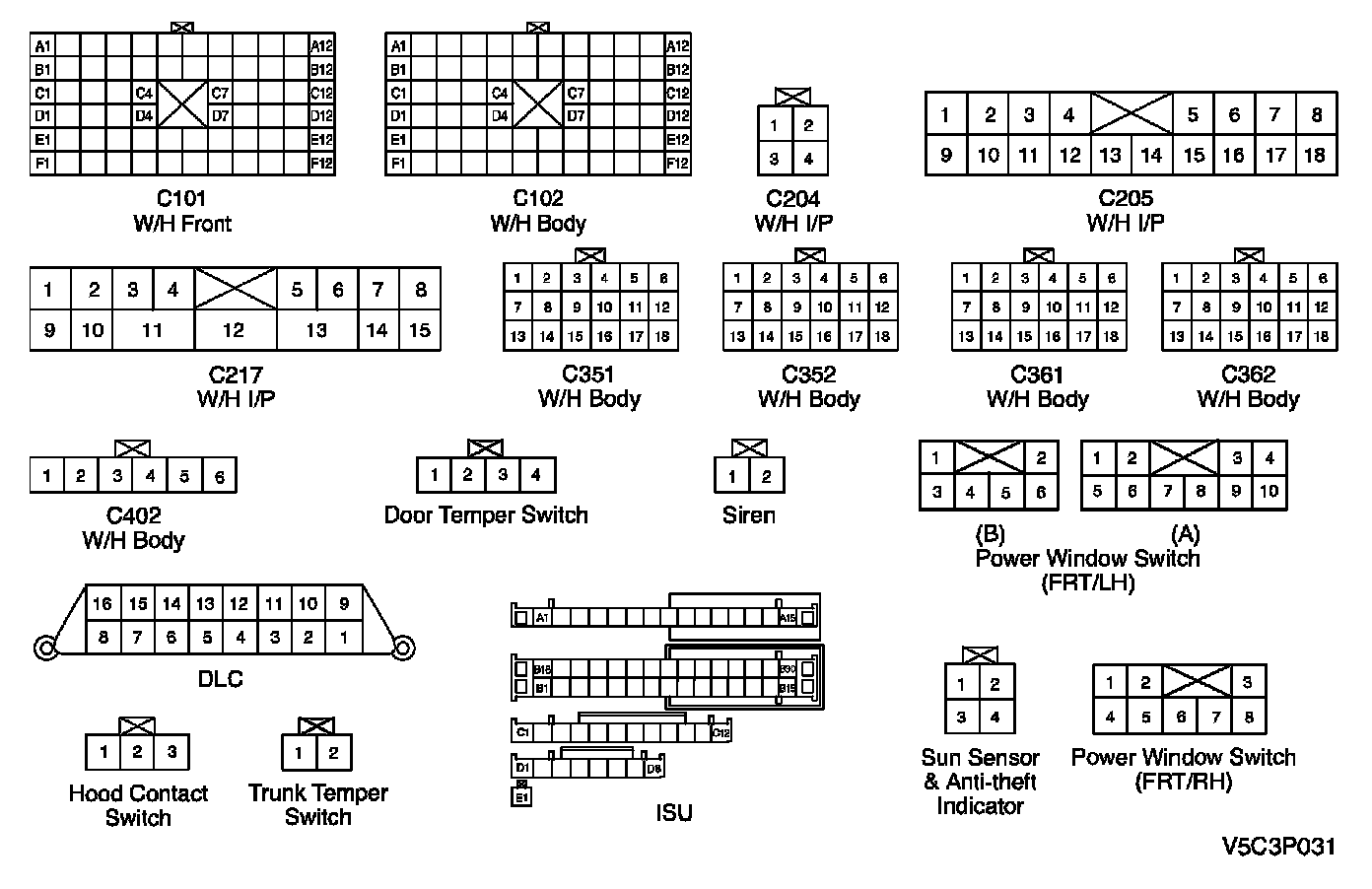

Connector Identification Symbol And Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

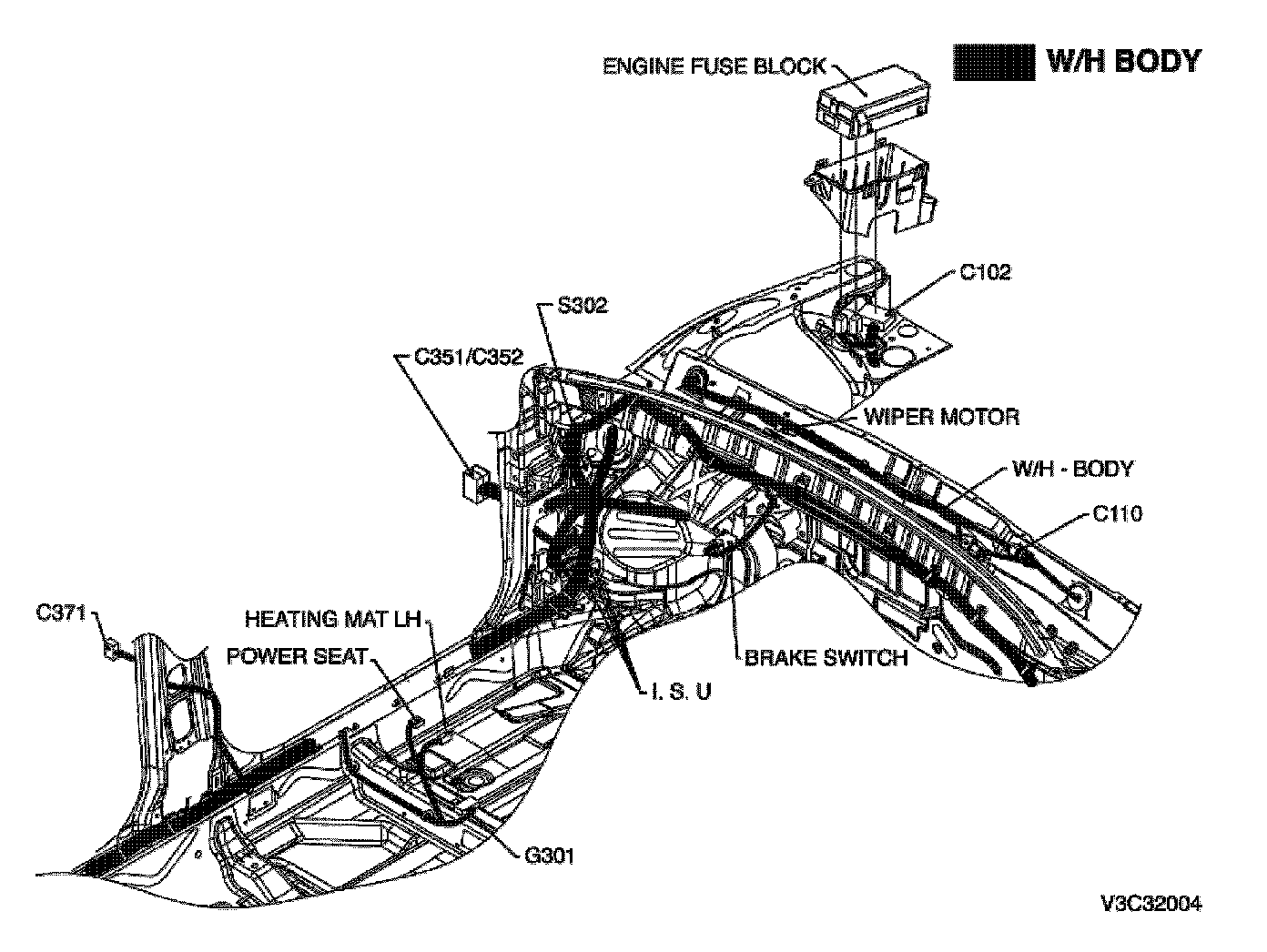

W/H BODY:

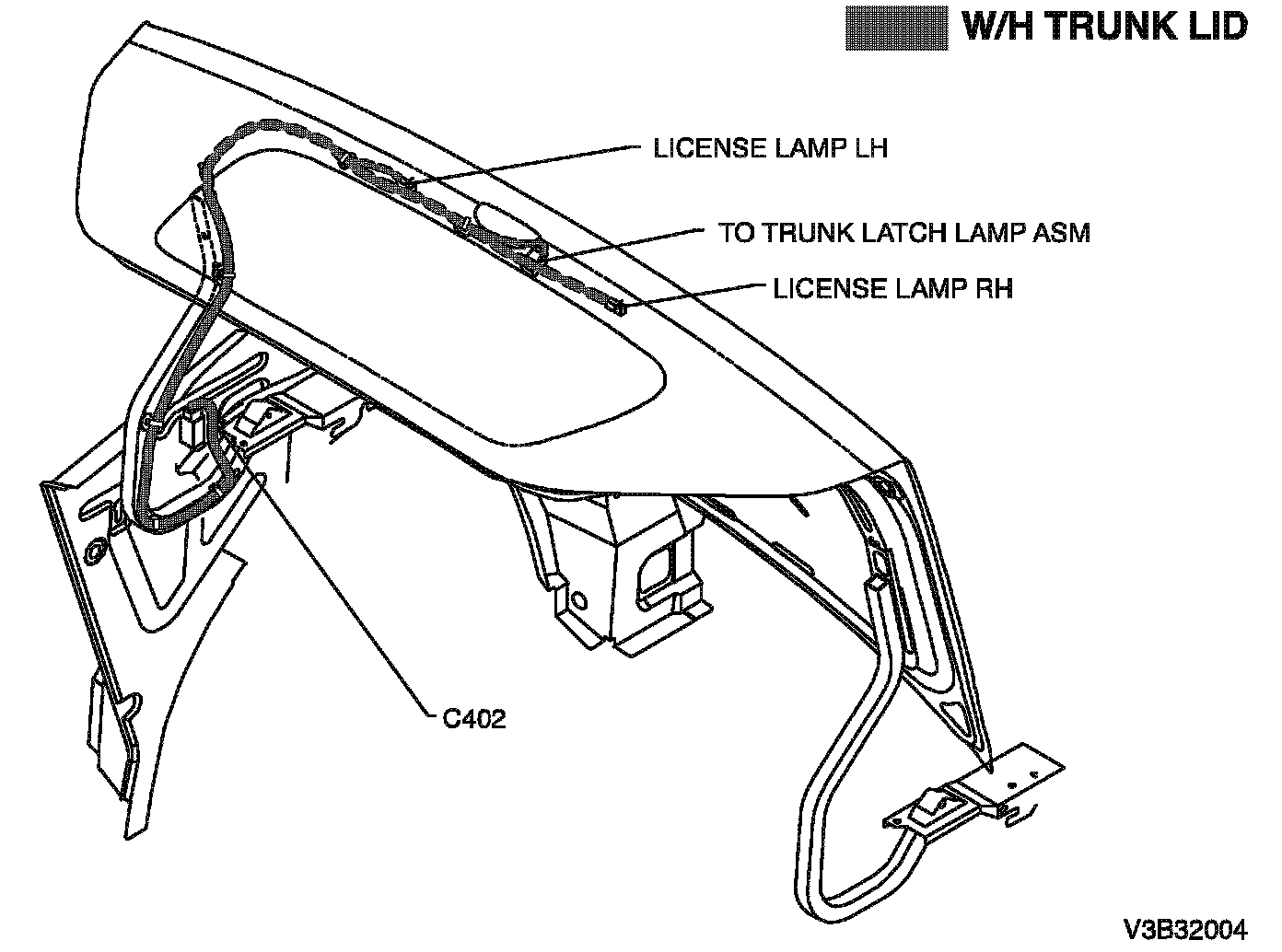

W/H TRUNK LID:
POSITION OF CONNECTORS AND GROUNDS
S201 (ORANGE):
S301 (COLORLESS):
SPLICE PACK
