Power Supply, Ground, PNP Switch, Brake Switch and Solenoid Valve Circuit

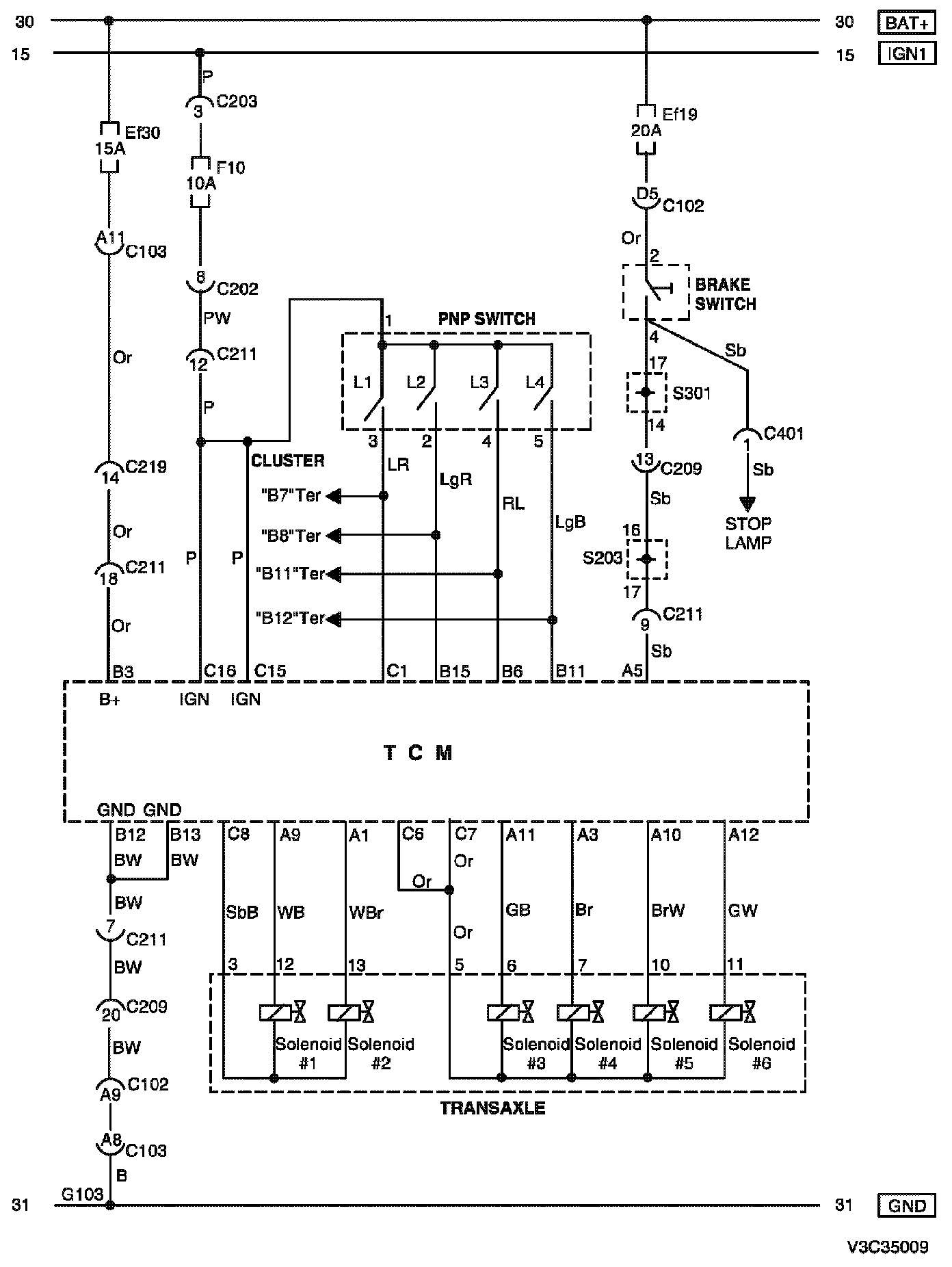

Power Supply, Ground, PNP Switch, Brake Switch and Solenoid Valve Circuit Diagram:
WIRING DIAGRAM
C102 - G103:

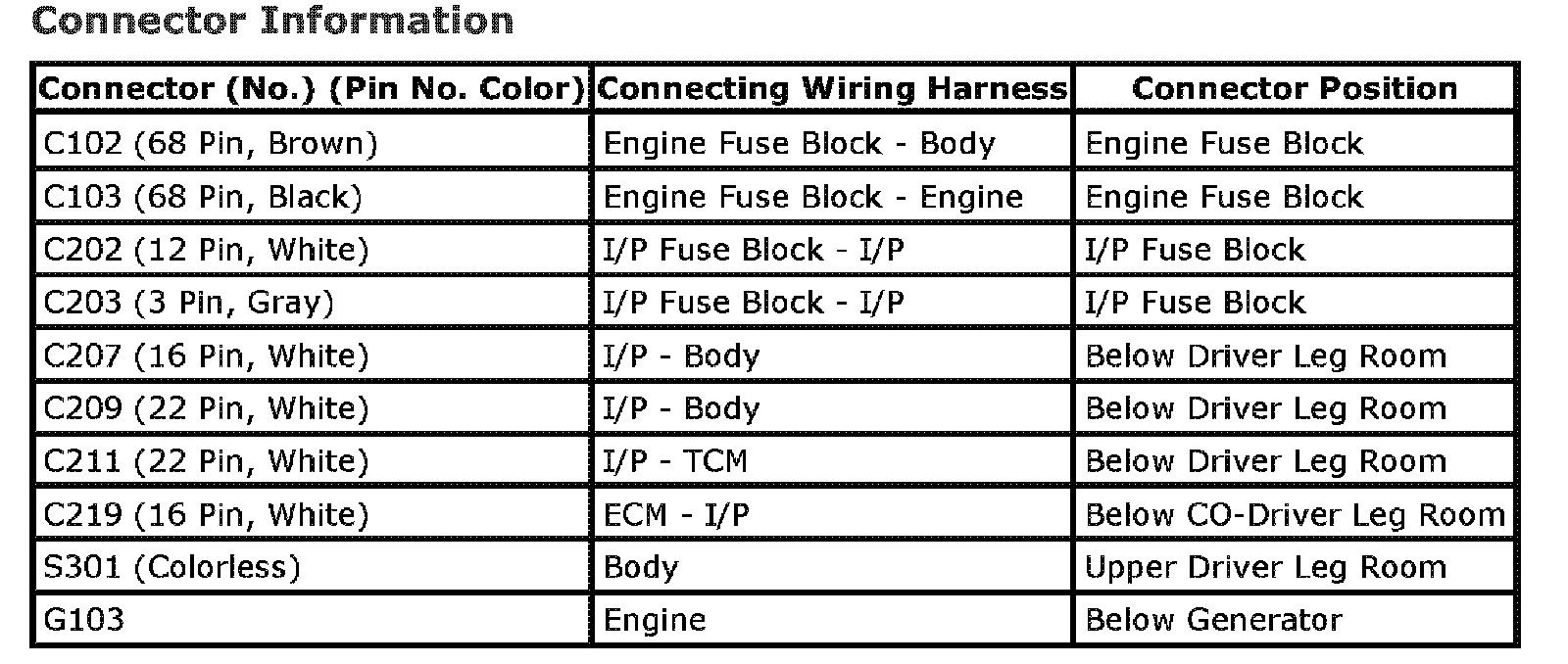

CONNECTOR INFORMATION
Connector Identification Symbol And Pin Number Position:

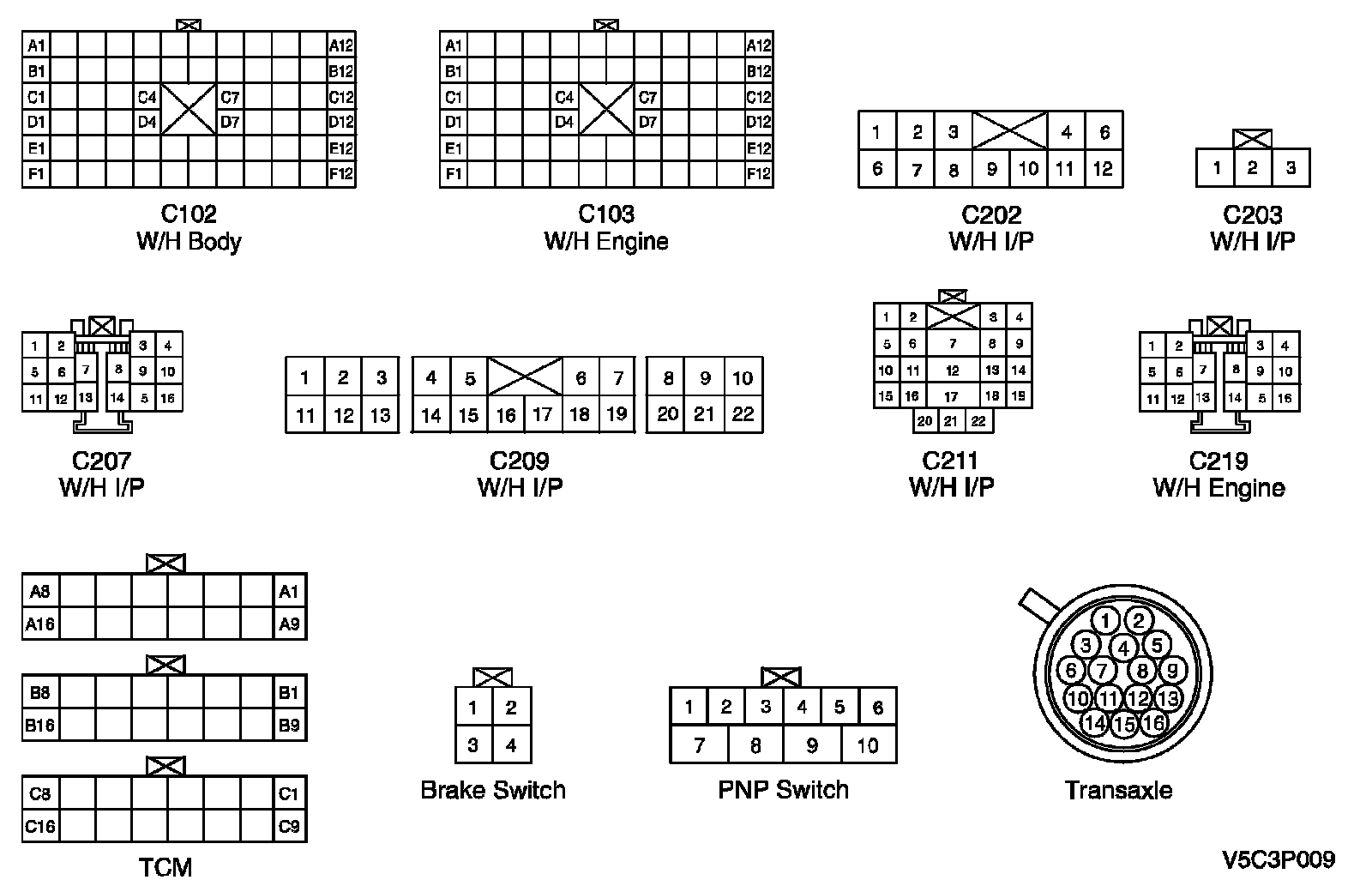

CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION
W/H TCM:
W/H TCM:

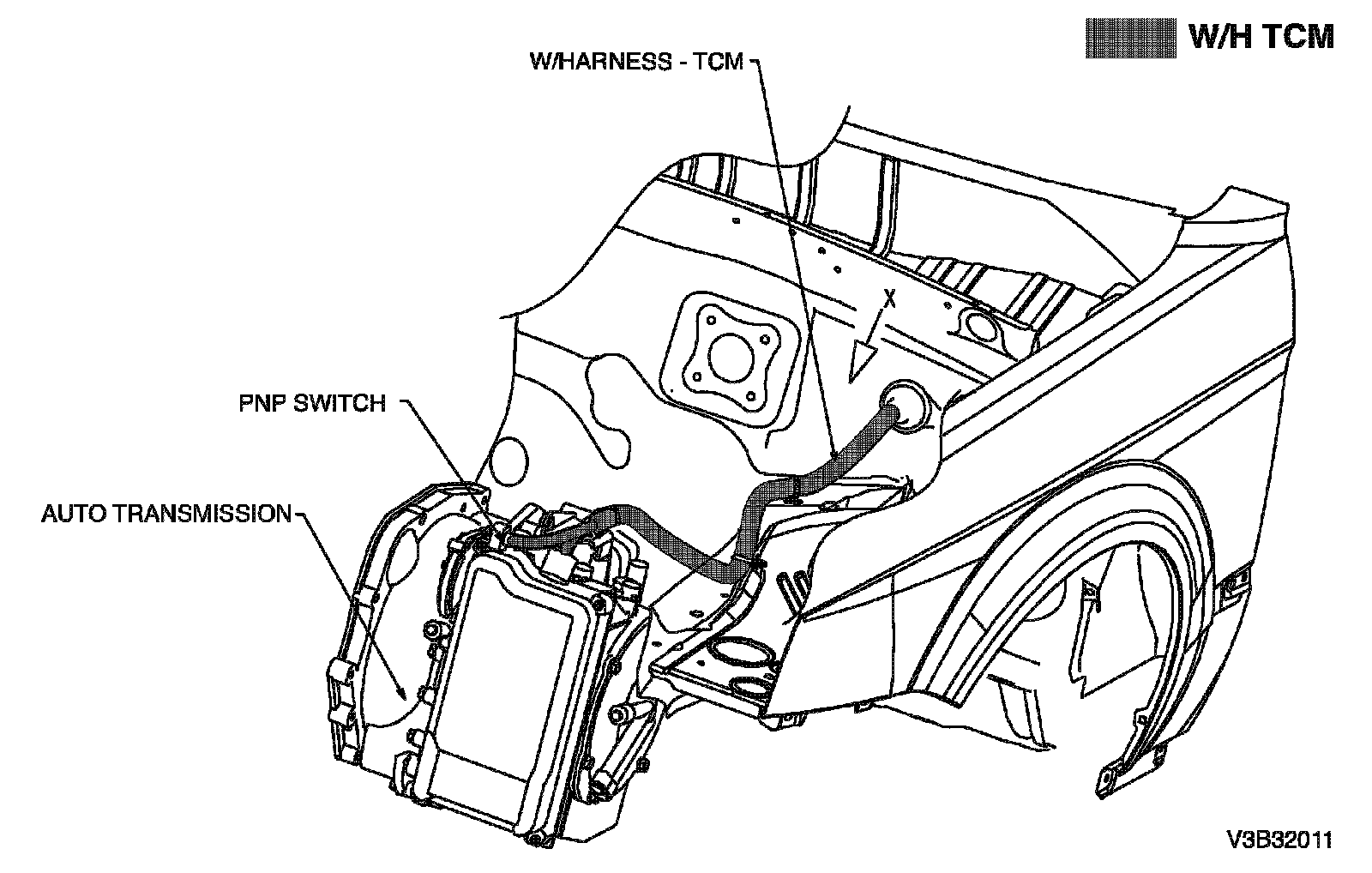

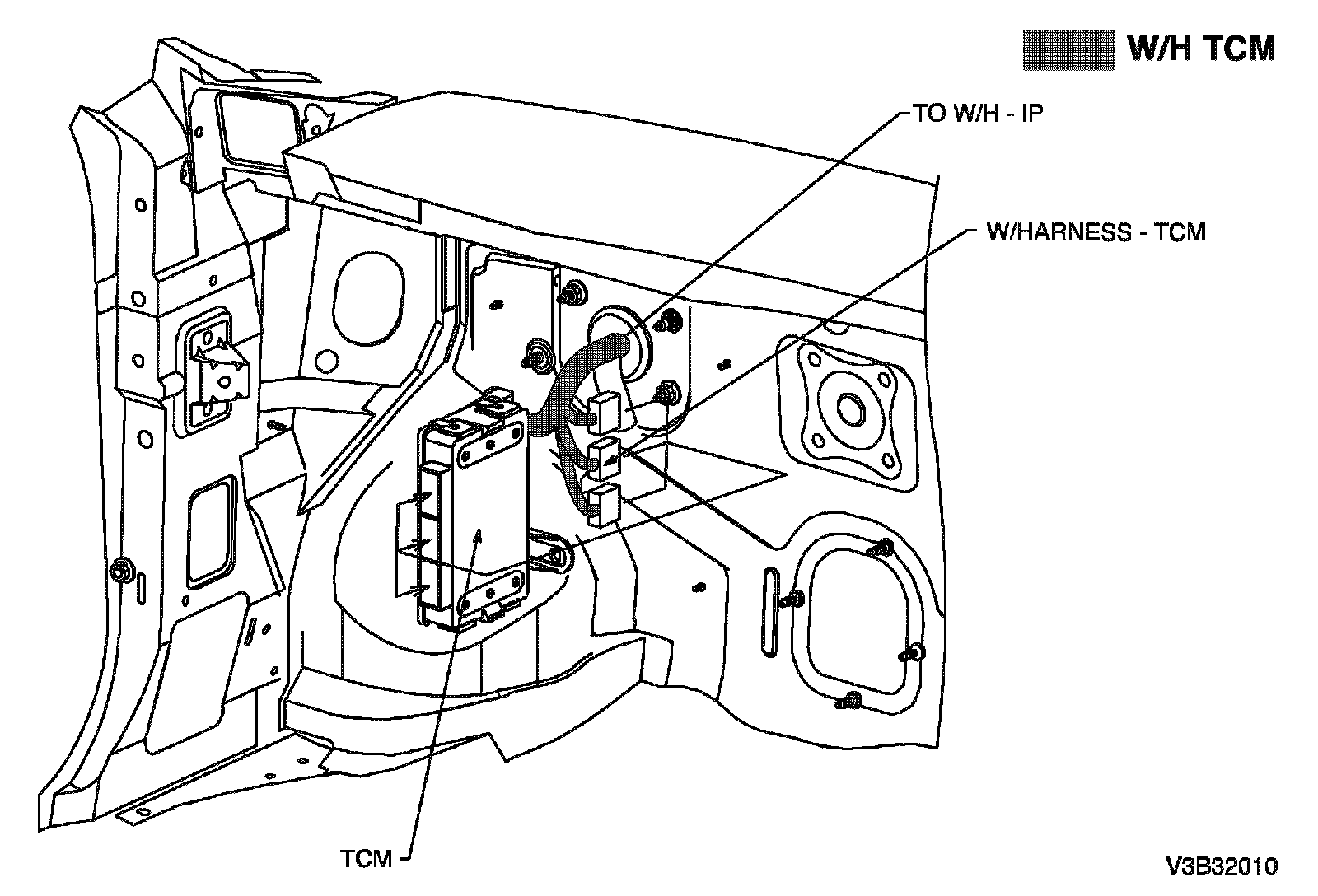

POSITION OF CONNECTORS AND GROUNDS:
S301 (COLORLESS):

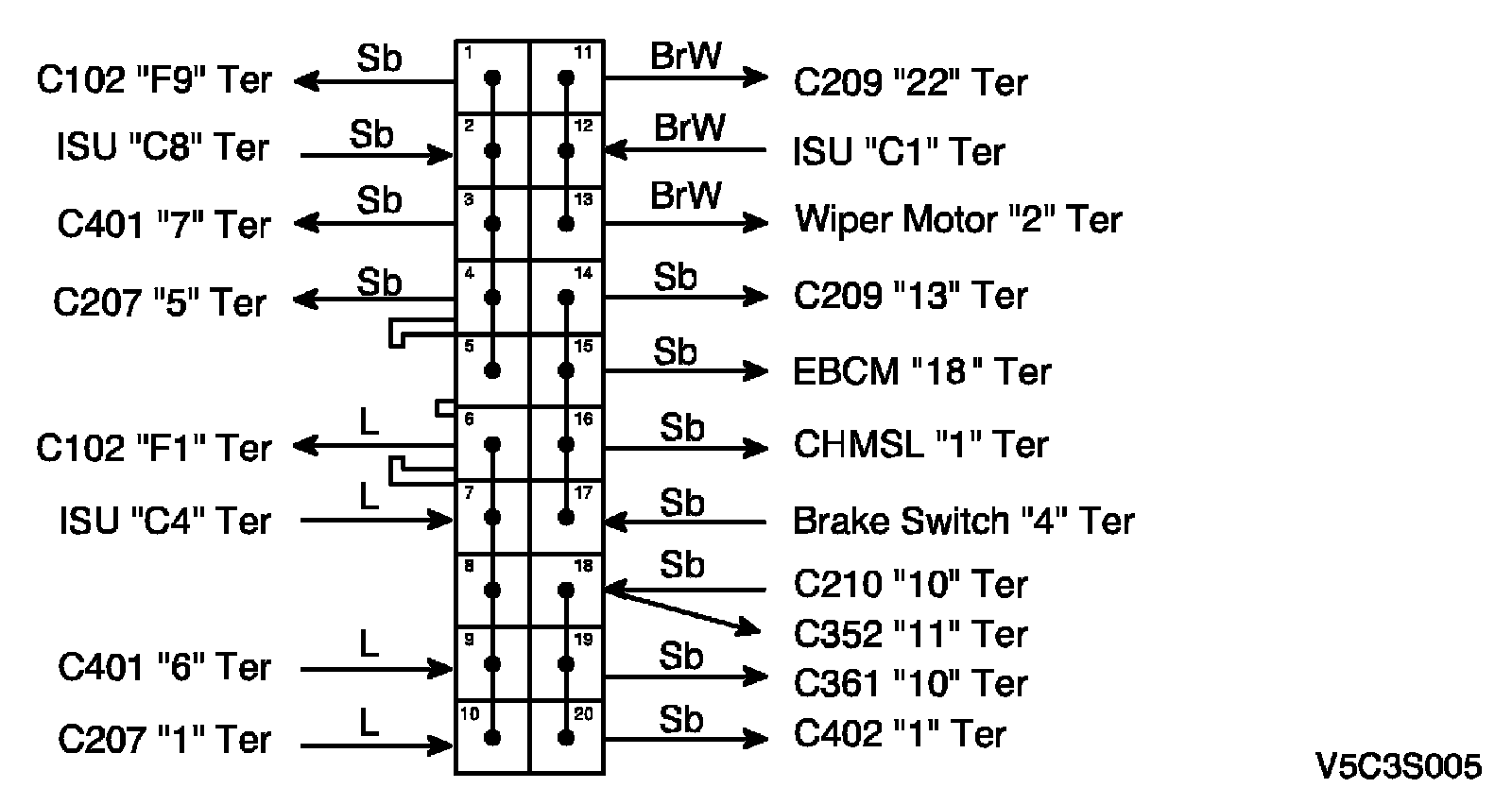

SPLICE PACK
