Special Tool

SPECIAL TOOL SPECIFICATION

G04095556
 DW110-060 Engine Support Fixture
G04095557
 DW260-020 Transaxle Holding Fixture
G04095558
 DW260-010 Transaxle Support Fixture
G04095559
 DW260-030-01 (LH) DW260-030-02 (RH) Axle Seal Installer
G04095560
 DW260-050 Park/Neutral Position Switch Installer
G04095561
 DW260-060 Brake F Split Stop Ring Remover/Installer
G04095562
 DW260-070 Transaxle Fluid Plug Remover/Installer
G04095563
 DW240-010 Universal Pressure Gauge Set
G04095564
 DW260-150 Clutch E Stop Ring Remove/Installer
G04095565
 DW260-140 Clutch B Stop Ring Remover/Installer
G04095566
 DW260-160 Brake C/D Snap Ring Remover/Installer

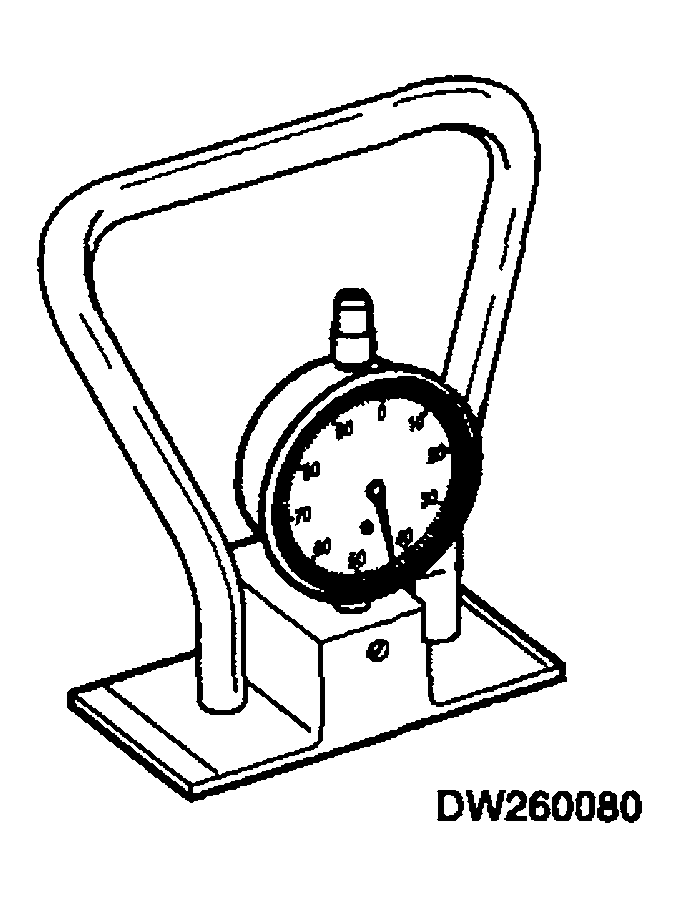

G04095567
 DW260-080 Clutch B/E Shim Setting Gauge
G04095568
 DW260-120 Clutch B Adjust Ring
G04095569
 DW260-130 Clutch E Adjust Ring
G04095570
 DW260-100 Clutch B/E Disc Thickness Measuring Fixture
G04095571
 DW260-090 Clutch B/E (Snap Ring Play, Installation Space) Measuring Fixture
G04095572
 DW260-110 Brake F Disc Clearance Measuring Bar
