Valve Body Disassembly and Assembly

  1. Remove the oil pan bolts and oil pan.
  2. Remove the oil pan gasket.

    Installation Notice

    Tighten the oil pan bolts to 6 N.m (53 lb-in).

    Fig 1: Removing Oil Pan Bolts
    G04095489Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove valve body fixing bolts and transaxle input speed sensor bolt on the valve body.
  4. Remove the holder for the transaxle input speed sensor.

    Installation Notice

    Tighten the bolts to 8 N.m (71 lb-in).

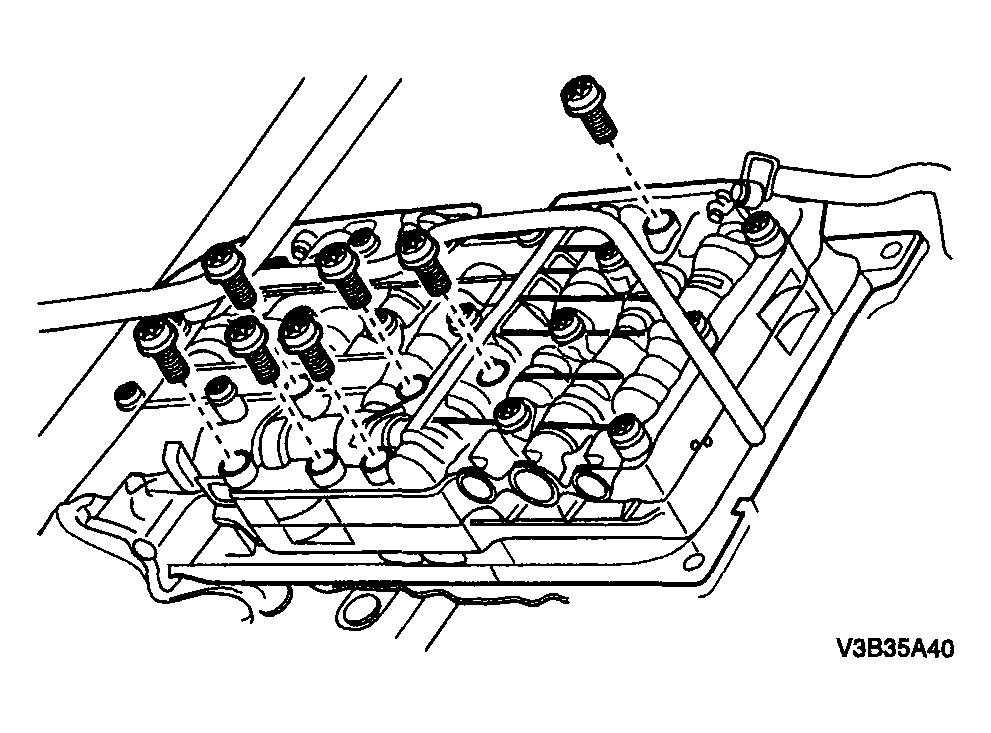

    Fig 2: Removing Valve Body Fixing Bolts
    G04095490Courtesy of SUZUKI OF AMERICA CORP.
  5. Tilt the valve body.
  6. Remove the fastening screw for the output speed sensor under the valve body assembly.
  7. Lever the cable out of the retaining clip and pull out the output speed sensor.
  8. Installation should follow the removal procedure in the reverse order.

    Installation Notice

    Tighten the screw to 6 N.m (53 lb-in).

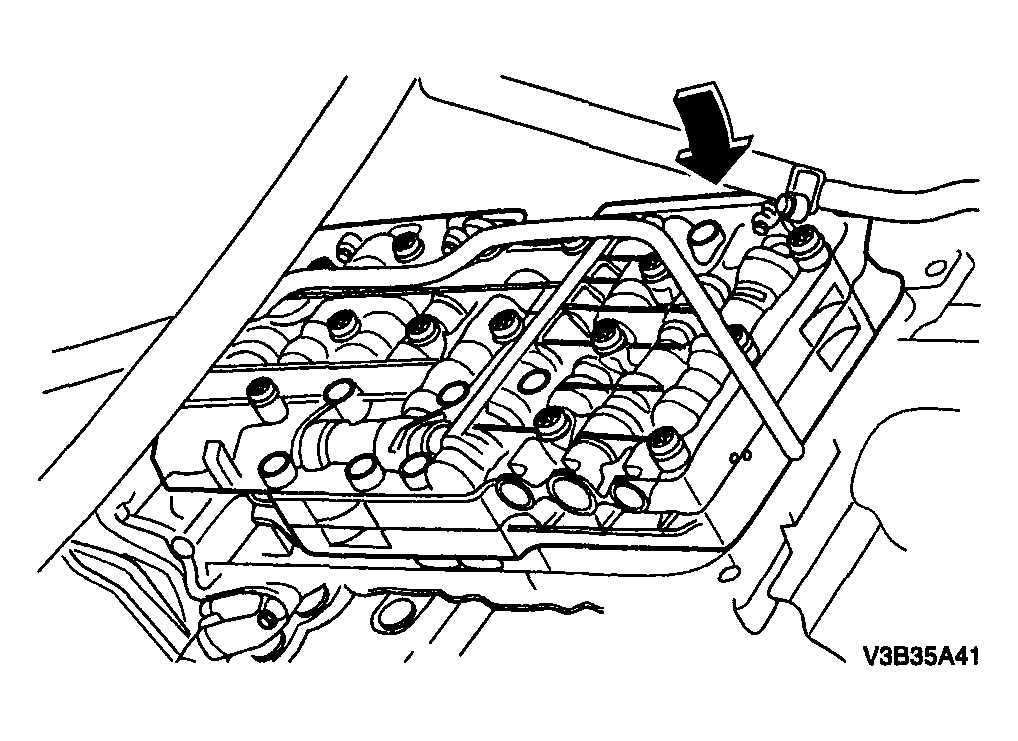

    Fig 3: Installing Valve Body Fixing Bolts
    G04095491Courtesy of SUZUKI OF AMERICA CORP.
