Transaxle Housing Components

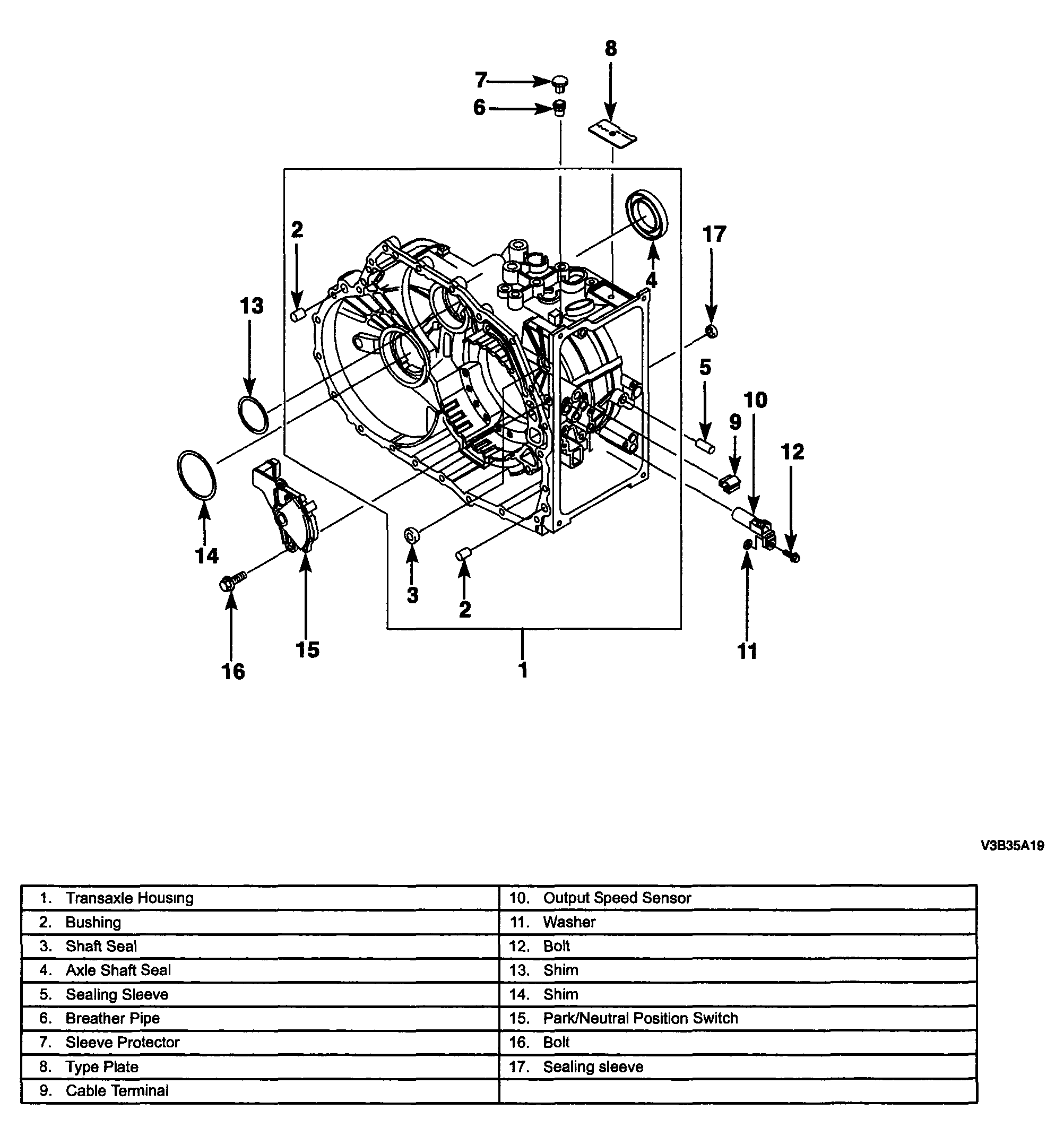

Fig 1: Exploded View Of Transaxle Housing Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
