Torque Converter Disassembly and Assembly

  1. Remove the transaxle assembly. Refer to "TRANSAXLE ASSEMBLY INSTALLATION ".
  2. Remove the torque converter assembly.
  3. Installation should follow the removal procedure in the reverse order.

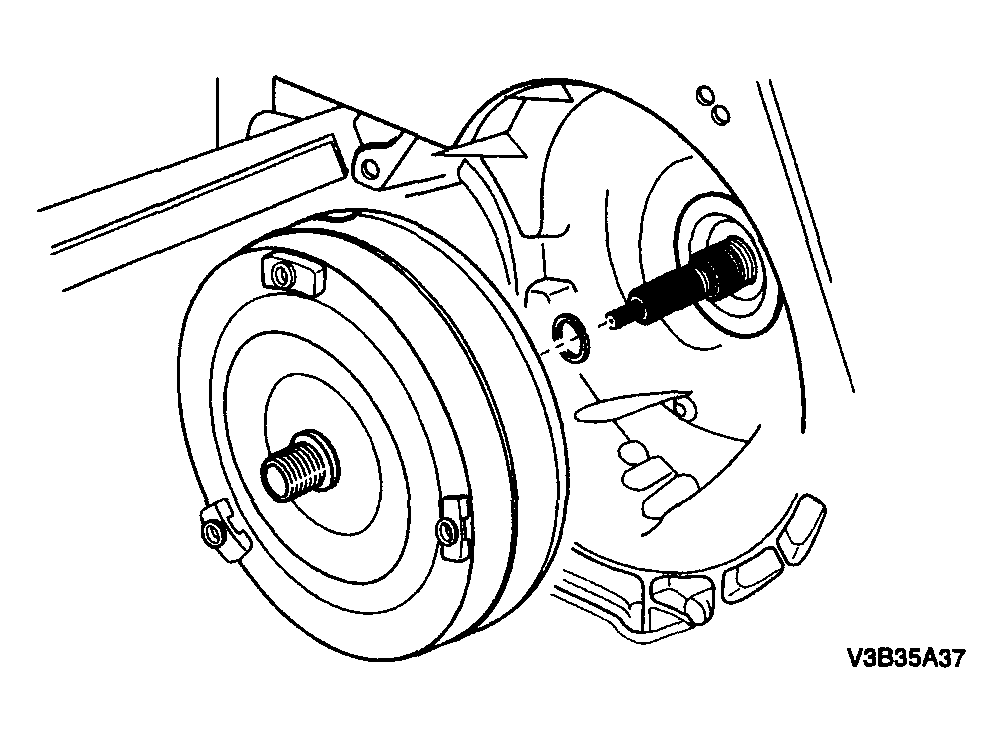

    Fig 1: Disassembling/Assembling Torque Converter
    G04095486Courtesy of SUZUKI OF AMERICA CORP.
