Side Shaft Disassembly and Assembly

  1. Remove the differential.
  2. Tilt and remove the side shaft.
  3. Installation should follow the removal procedure in the reverse order.

    Removal Notice

    • Don't disassemble the differential to avoid incorrect operation.

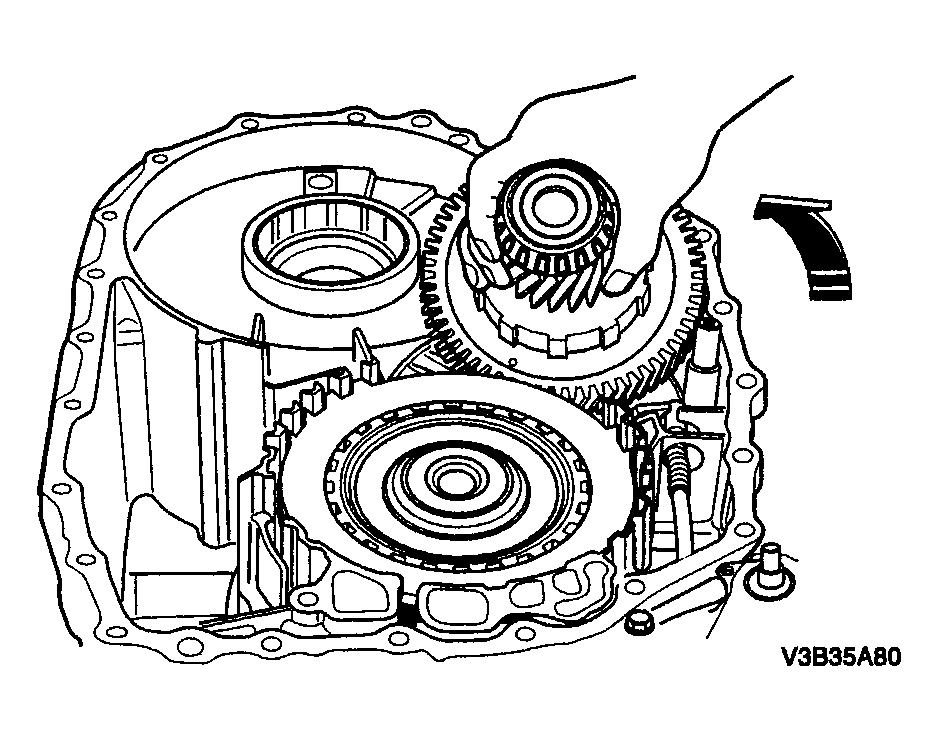

      Fig 1: Removing Side Shaft
      G04095549Courtesy of SUZUKI OF AMERICA CORP.
