Park/neutral Start Switch Installation

Tools Required

DW260-050 P/N Switch Installer

1. Install the park/neutral start switch.

   Tighten

   Tighten the bolts to 10 N.m (89 lb-in).

2. Adjust the park/neutral switch using the P/N switch installer DW260-050.
   CAUTION: When install the park/neutral switch, using the special service tools and the shift lever must be positioned "Neutral".

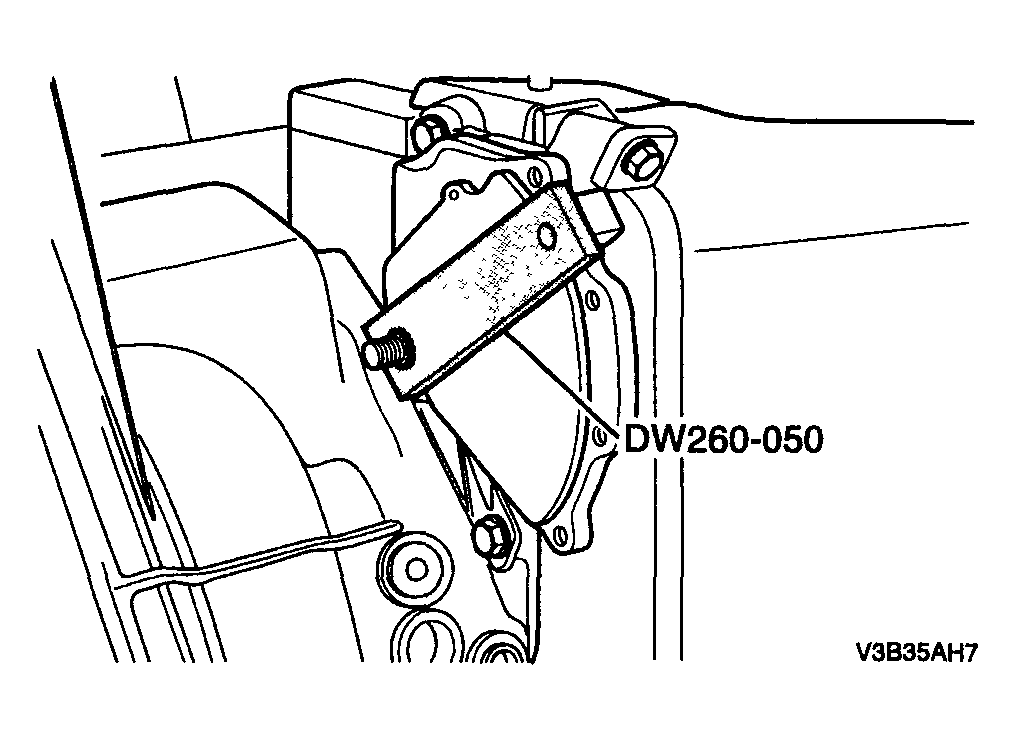

   Fig 1: Adjusting Park/Neutral Switch

   Courtesy of SUZUKI OF AMERICA CORP.
3. Install the shift lever and the shift lever nut.

   Tighten

   Tighten the shift lever nut to 10 N.m (89 lb-in).

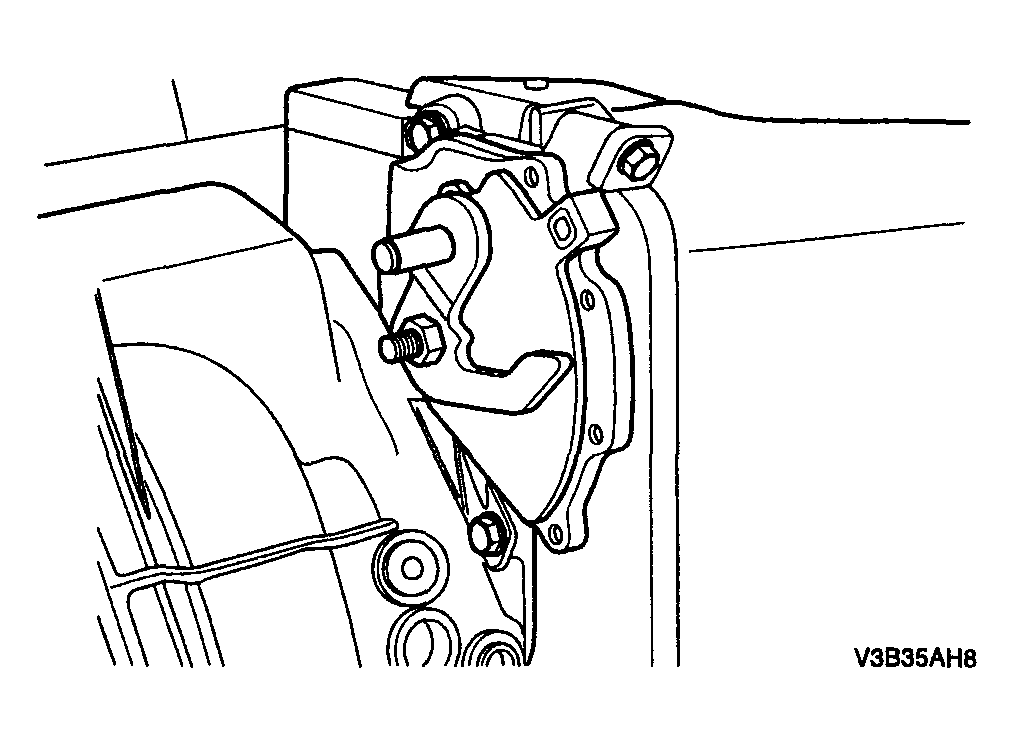

   Fig 2: Installing Shift Lever

   Courtesy of SUZUKI OF AMERICA CORP.
4. Connect the shift control cable and the retaining clip.
5. Connect the park/neutral position switch electrical connector.
6. Install the air filter housing.
7. Connect the negative battery cable.

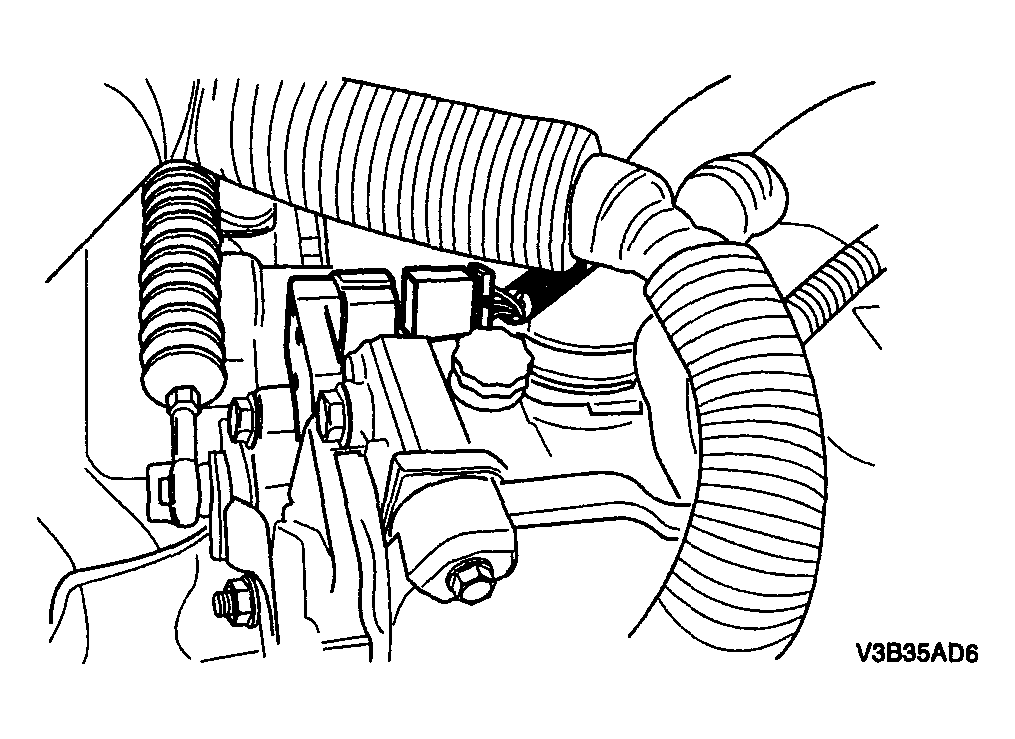

   Fig 3: Connecting Park/Neutral Position Switch Electrical Connector

   Courtesy of SUZUKI OF AMERICA CORP.
