Oil Cooler Pipes / Hoses Installation

Install the oil cooler inlet pipe assembly and the bolts.
Tighten

Tighten the oil cooler inlet pipe bolts to 35 N.m (26 lb-ft).

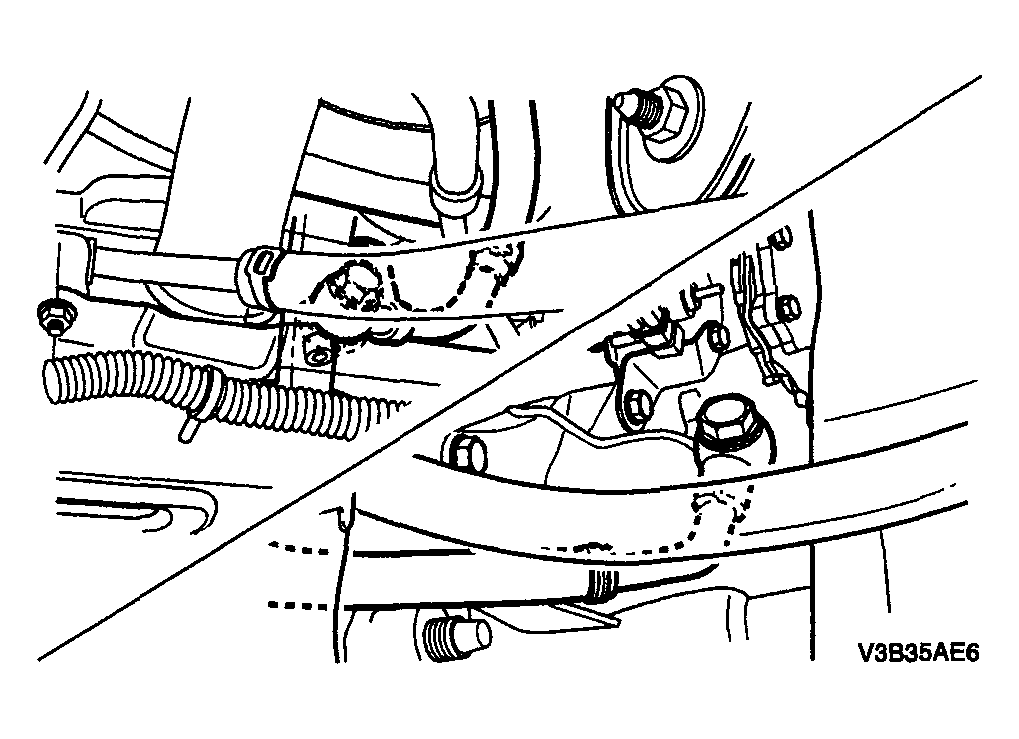

Fig 1: Installing Oil Cooler Inlet Pipe
Courtesy of SUZUKI OF AMERICA CORP.
Install the oil cooler outlet pipe assembly and the bolts.
Tighten

Tighten the oil cooler outlet pipe bolts to 35 N.m (26 lb-ft).
Refill the transaxle fluid. Refer to "FLUID LEVEL SET AFTER SERVICE ".
Connect the negative battery cable.

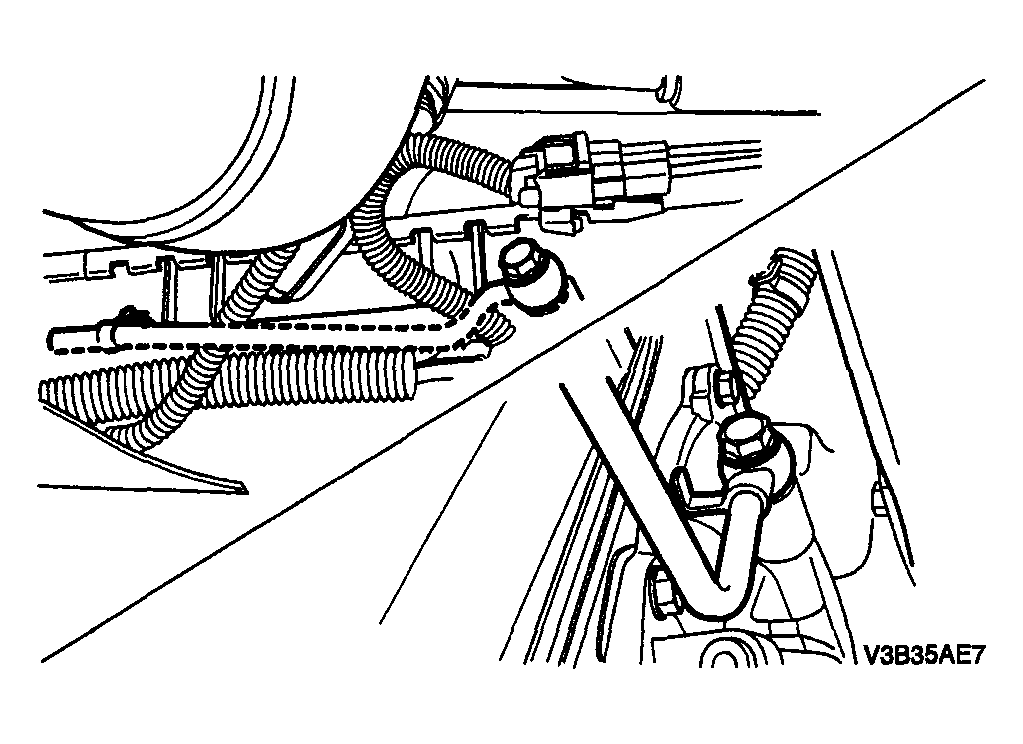

Fig 2: Installing Oil Cooler Outlet Pipe Assembly And Bolts
Courtesy of SUZUKI OF AMERICA CORP.
