Drive Axle Oil Seal Installation

Tools Required

DW260-030-01 Axle Seal Installer (LH) DW260-030-02 Axle Seal Installer (RH)

1. Install the transaxle drive seal using the axle seal installer DW260-030-01 (LH) or DW260-030-02 (RH).
2. Install the drive axles. Refer to "DRIVE AXLE ASSEMBLY INSTALLATION ".
3. Connect the negative battery cable.

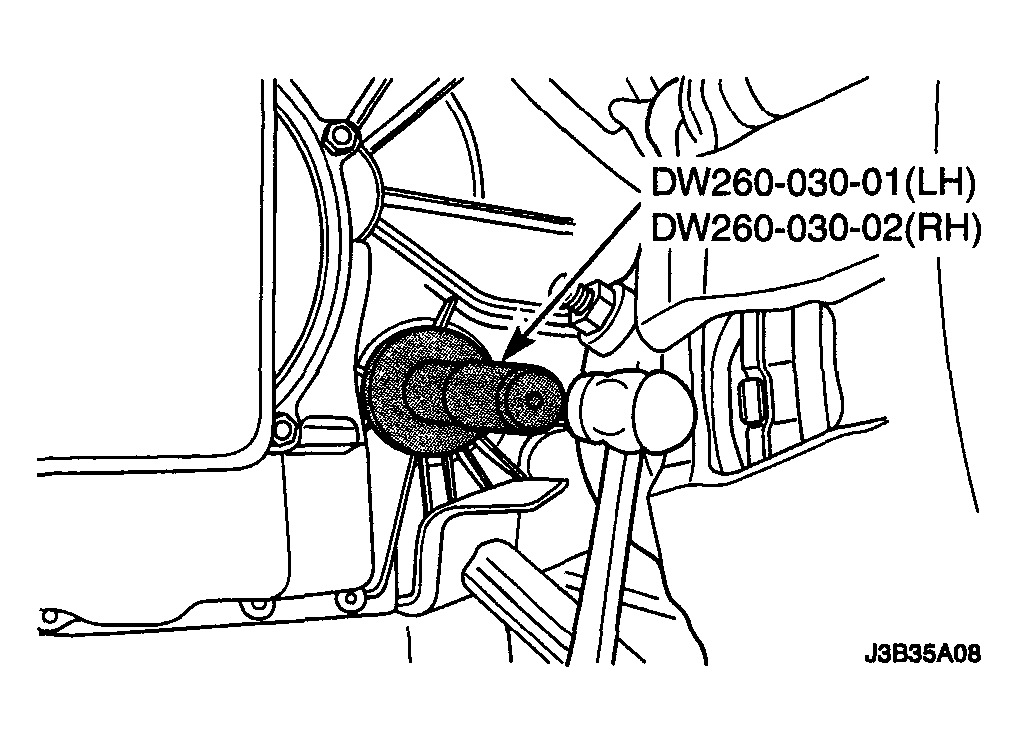

   Fig 1: Installing Transaxle Drive Seal

   Courtesy of SUZUKI OF AMERICA CORP.
