Bearing Plate (with Spur Gear) Assembly Disassembly and Assembly

Remove the piston F. Refer to "BRAKE F, SLOTTED NUT DISASSEMBLY AND ASSEMBLY ".
Remove the bearing plate bolts and bearing plate.
Installation should follow the removal procedure in the reverse order.
Installation Notice

Tighten

Tighten the bearing plate bolts to 27 N.m (17 lb-ft).

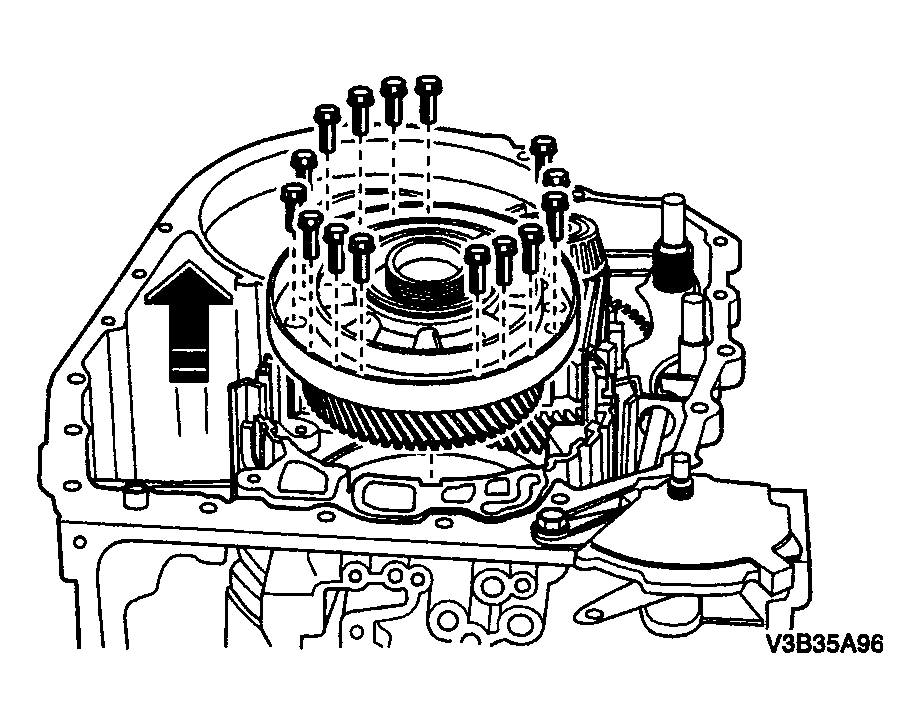

Fig 1: Removing Bearing Plate Bolts And Bearing Plate
Courtesy of SUZUKI OF AMERICA CORP.
