Data Link Connector (DLC)
The data link connector (DLC) is a multiple cavity connector. The DLC provides the means to access serial data from the TCM to aid in powertrain diagnosis. The DLC allows the technician to use a scan tool to monitor various systems and display diagnostic trouble codes (DTCs). The DLC connector is located within the driver's compartment, directly below the steering column.

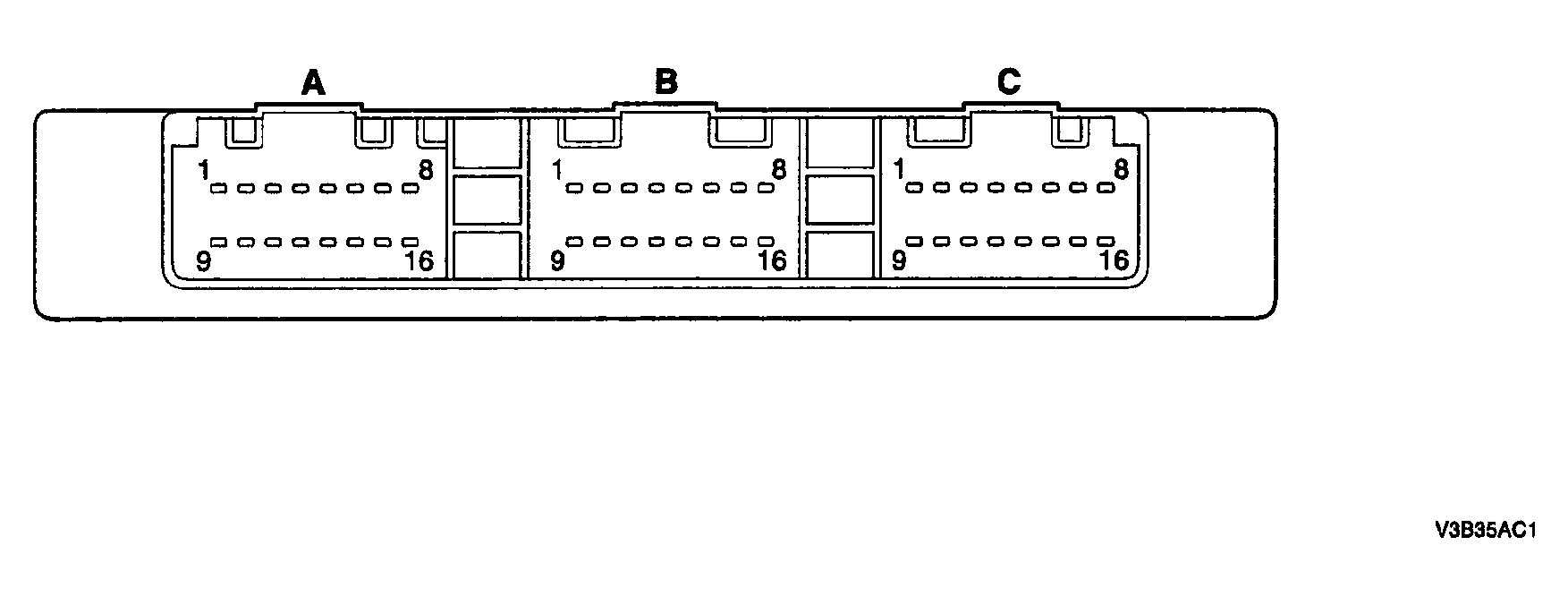

DATA LINK CONNECTOR REFERENCE
| A Connector (Blue) | B Connector (Green) | C Connector (Gray) | |
|---|---|---|---|
| 1 | Solenoid 2 | Fluid Temperature Ground | Selector Lever Line L1 |
| 2 | Not Used | Input Speed Sensor (+) | Not Used |
| 3 | Pressure Control Solenoid Valve (EDS 4) | BAT + | Not Used |
| 4 | TFT Sensor | Input Speed Sensor (-) | Hold Mode Switch |
| 5 | Stoplamp Switch | Output Speed Sensor (-) | Not Used |
| 6 | Hold Mode Indicator | Selector Lever Line L3 | EDS Supply |
| 7 | DLC | Input Speed Sensor Ground | EDS Supply |
| 8 | CAN High | Speedometer | Solenoid Supply |
| 9 | Solenoid 1 | Not Used | Not Used |
| 10 | Pressure Control Solenoid Valve (EDS 5) | Output Speed Sensor (+) | Not Used |
| 11 | Pressure Control Solenoid Valve (EDS 3) | Selector Lever Line L4 | Not Used |
| 12 | Pressure Control Solenoid Valve (EDS 6) | Ground | Not Used |
| 13 | Not Used | Ground | Not Used |
| 14 | Not Used | Not Used | Not Used |
| 15 | Not Used | Selector Lever Line L2 | IG ON |
| 16 | CAN Low | Not Used | IG ON |
