DTC U0101 CAN Transmit Message Failure: Notes

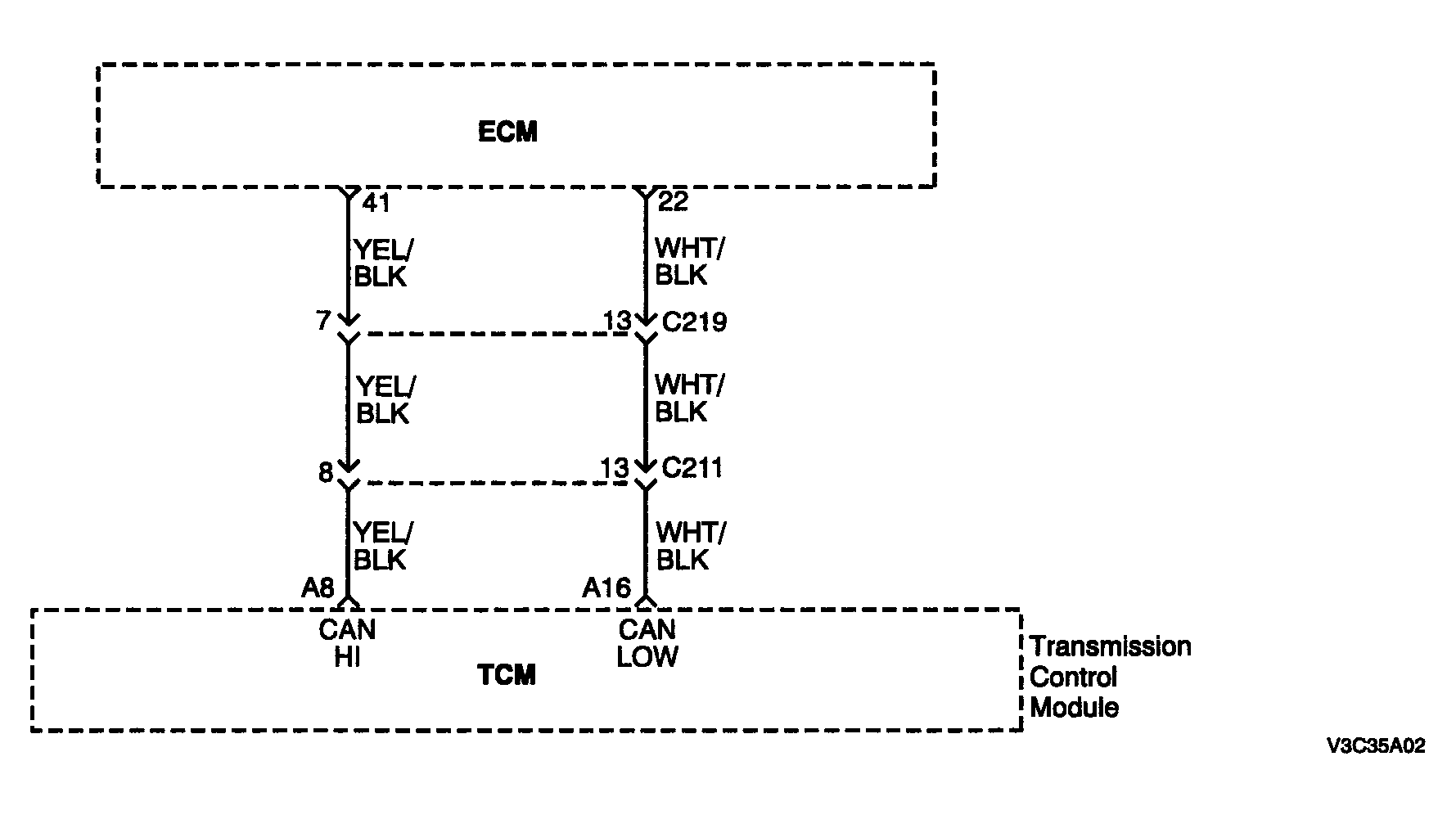

Fig 1: DTC U0101 CAN Transmit Message Failure Circuit
G04095401Courtesy of SUZUKI OF AMERICA CORP.
