Rear Stabilizer Link Installation

Install the rear stabilizer link with the stabilizer shaft-to-stabilizer link nut and the shaft-to-strut assembly nut.
Tighten

Tighten the rear stabilizer link with the stabilizer shaft-to-stabilizer link nut and the shaft-to-strut assembly nut to 50 N.m (37 lb-ft).

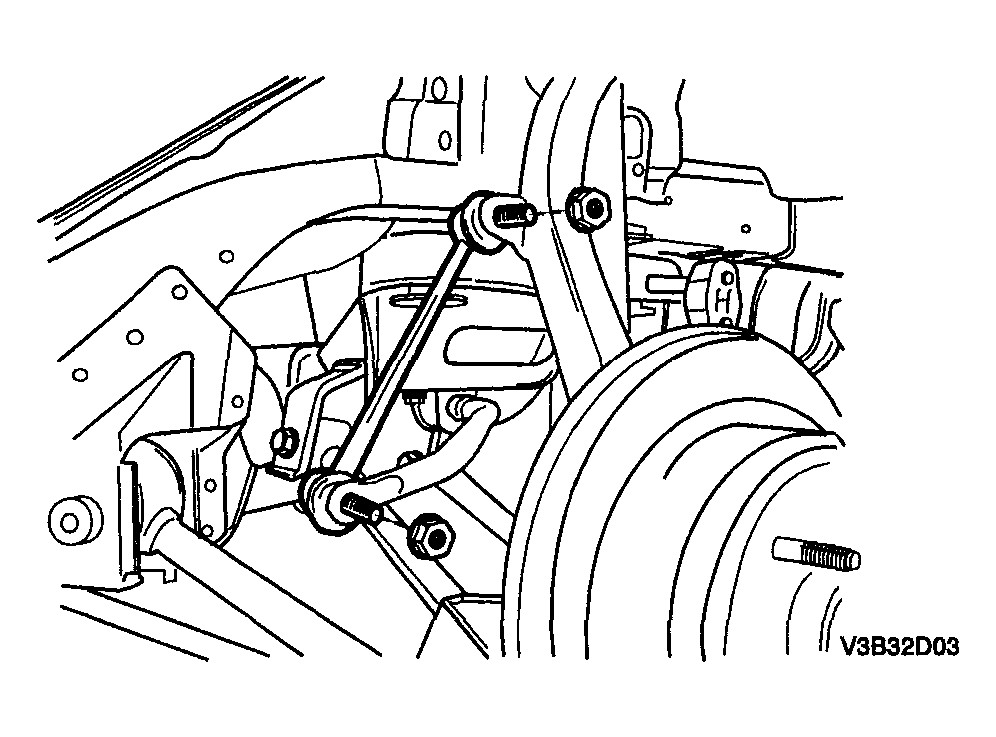

Fig 1: Installing Rear Stabilizer Link With Stabilizer Shaft-To-Stabilizer Link Nut
Courtesy of SUZUKI OF AMERICA CORP.
