Rear Shock Absorber Assembly

Install the rear spring lower insulator, coil spring, hollow bumper, dust cover, spring upper insulator and rear strut mount onto the rear strut assembly.

Fig 1: Exploded View Of Rear Shock Absorber
Courtesy of SUZUKI OF AMERICA CORP.
Compress the spring.
Install the lock nut to the strut damper rod.
Release the rear strut assembly from the spring compressor KM-329-A.

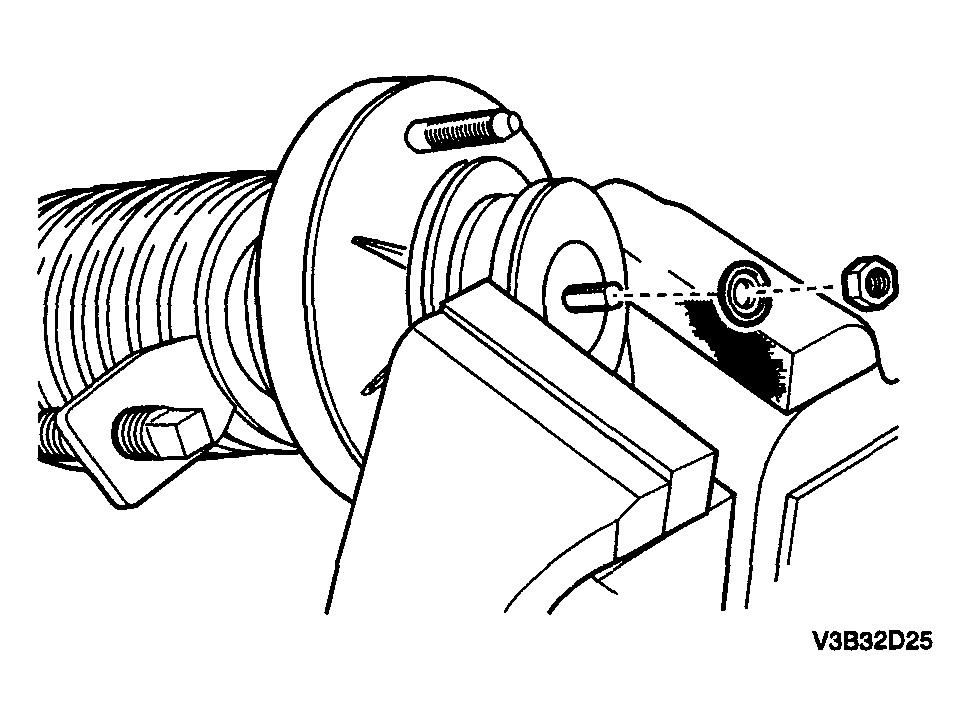

Fig 2: Installing Lock Nut To Strut Damper Rod
Courtesy of SUZUKI OF AMERICA CORP.
