Rear Crossmember Installation

  1. Install the rear crossmember with bolts and nuts.

    Tighten

    Tighten the rear crossmember bolts and nuts to 110 N.m (81 lb-ft).

  2. Install the front/rear parallel links and stabilizer bar. Refer to related procedure.

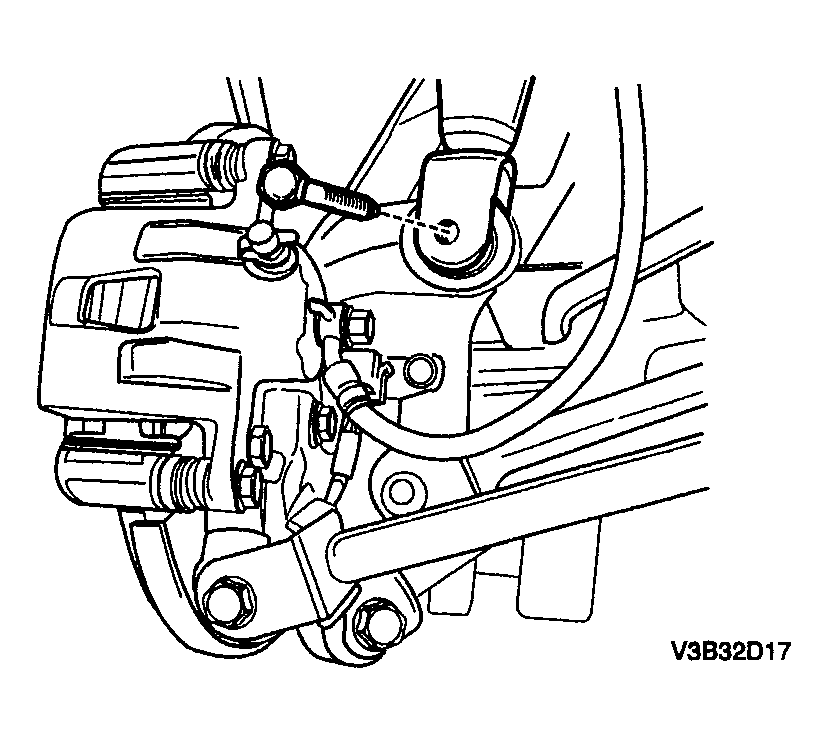

    Fig 1: Installing Front/Rear Parallel Links And Stabilizer Bar
    G04095068Courtesy of SUZUKI OF AMERICA CORP.
