Stabilizer Bar Removal

  1. Remove the crossmember. Refer to this article.
  2. Remove the stabilizer link.
  3. Remove the stabilizer bar bolts and nuts.
  4. Remove the U-clamp and bushing.

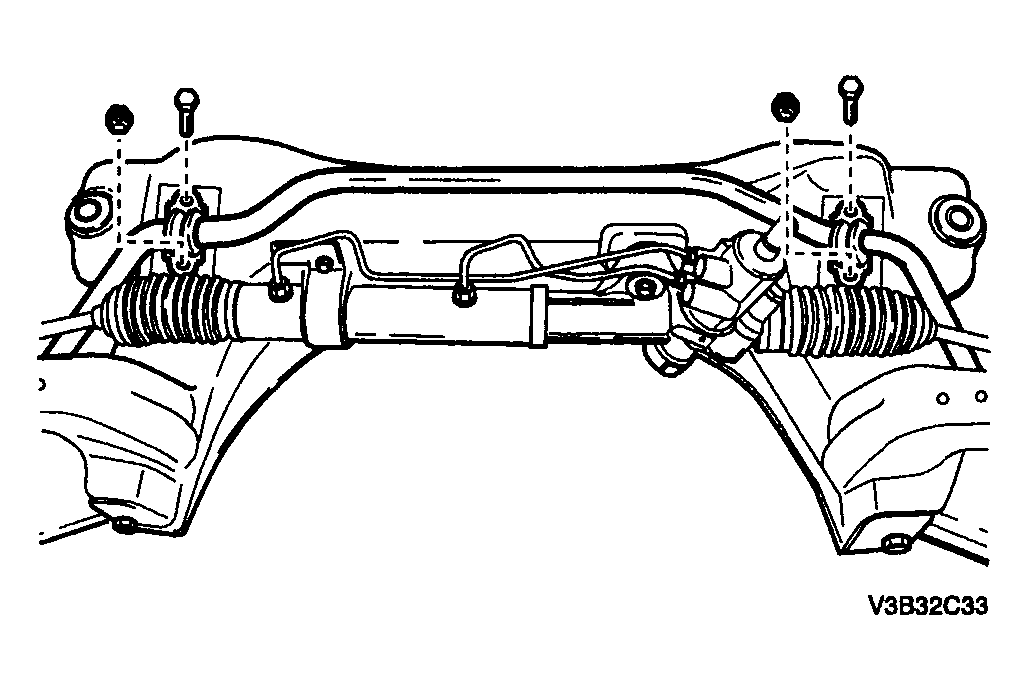

    Fig 1: Removing U-Clamp And Bushing
    G04095023Courtesy of SUZUKI OF AMERICA CORP.
