Knuckle and Hub Installation

Install the hub bolts.
Tighten

Tighten the hub bolts to 95 N.m (70 lb-ft).

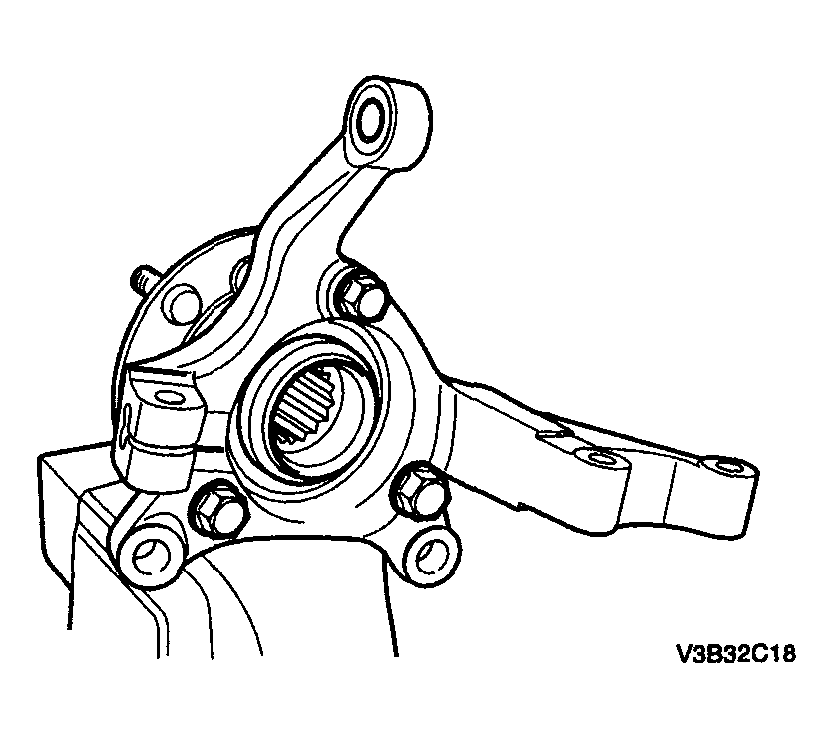

Fig 1: Installing Hub Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install the splash shield and front strut bolts.
Tighten

Tighten the splash shield bolts to 10 N.m (7 lb-ft).
Install the detent screw and disc.
Tighten

Tighten the detent screw to 5 N.m (3.5 lb-ft).
Install the brake caliper. Refer to "CALIPER INSTALLATION "
Install the control arm ball joint bolt.
Tighten

Tighten the control arm ball joint bolt to 110 N.m (81 lb-ft).

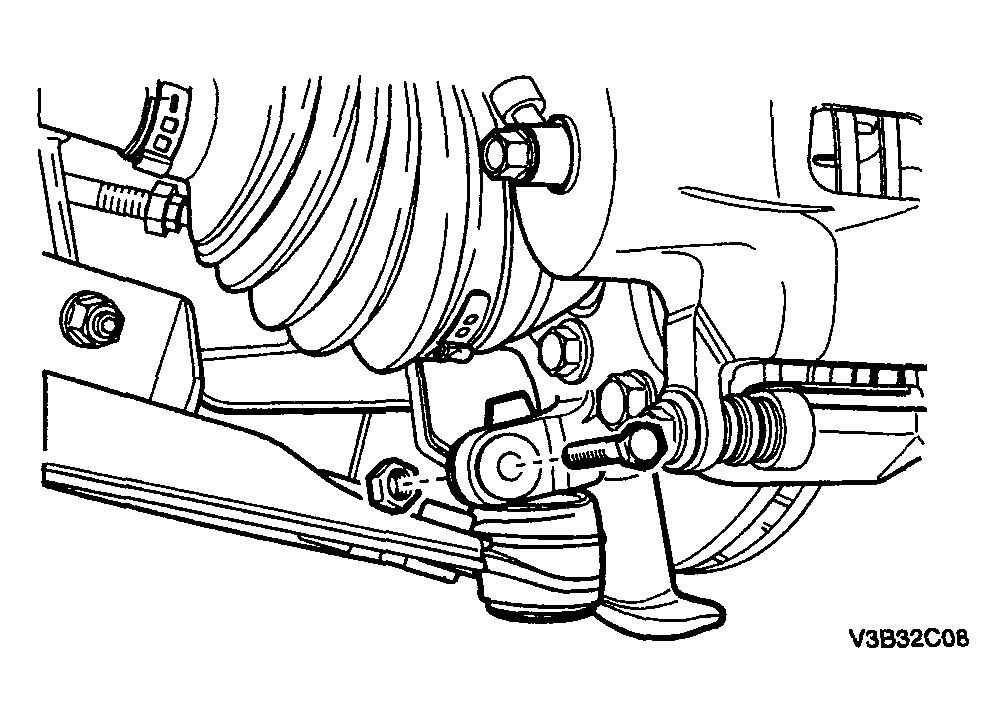

Fig 2: Installing Control Arm Ball Joint Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Install the outer tie rod bolt.
Tighten

Tighten the outer tie rod bolt to 50 N.m (37 lb-ft).

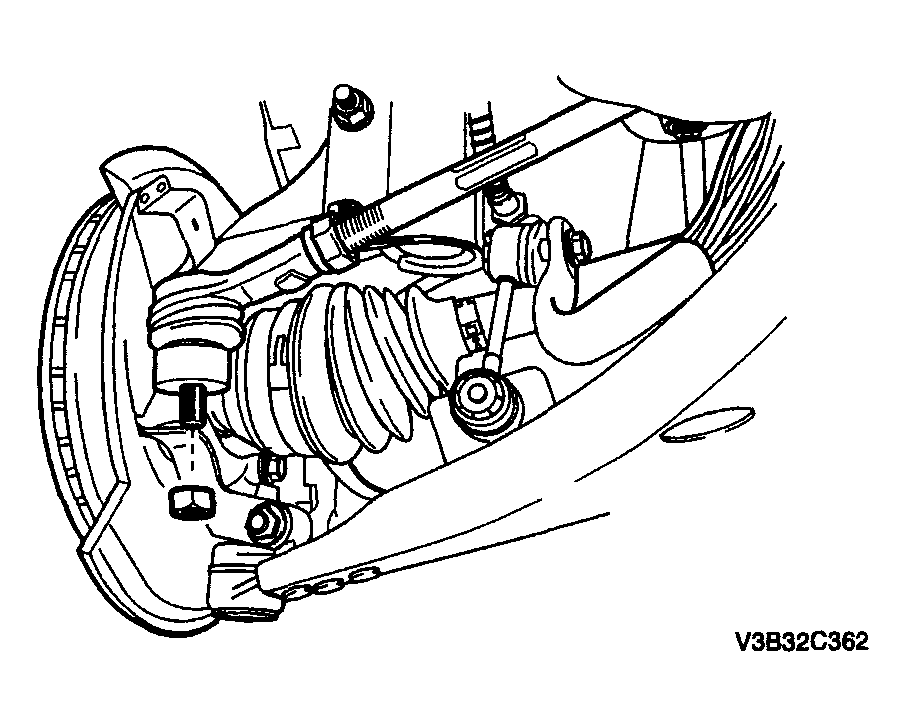

Fig 3: Installing Outer Tie Rod Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Install the washer and the caulking nut onto the axle shaft.
Tighten

Tighten the caulking nut onto the axle shaft to 320 N.m (236 lb-ft).
Bleed the air out of the brake system. Refer to "MANUAL BLEEDING THE BRAKES ".

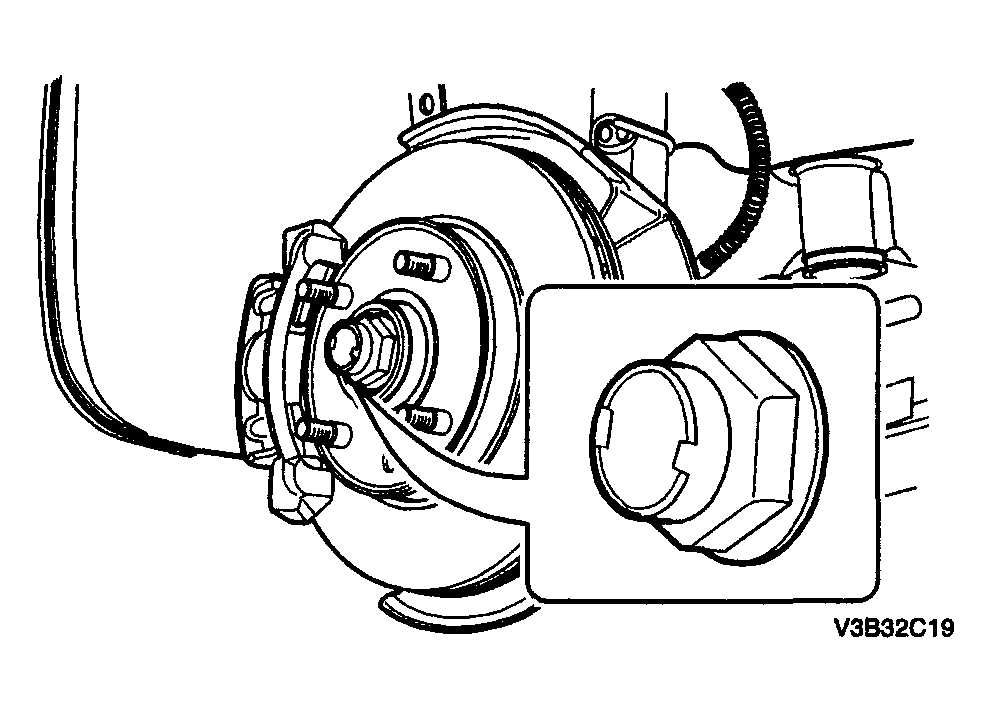

Fig 4: Installing Washer And Caulking Nut Onto Axle Shaft
Courtesy of SUZUKI OF AMERICA CORP.
