Impact Beam Removal

  1. Remove the bolt of impact beam-to-radiator centermember.
  2. Remove the bolts of impact beam-to-front suspension centermember.
  3. Remove the impact beam.

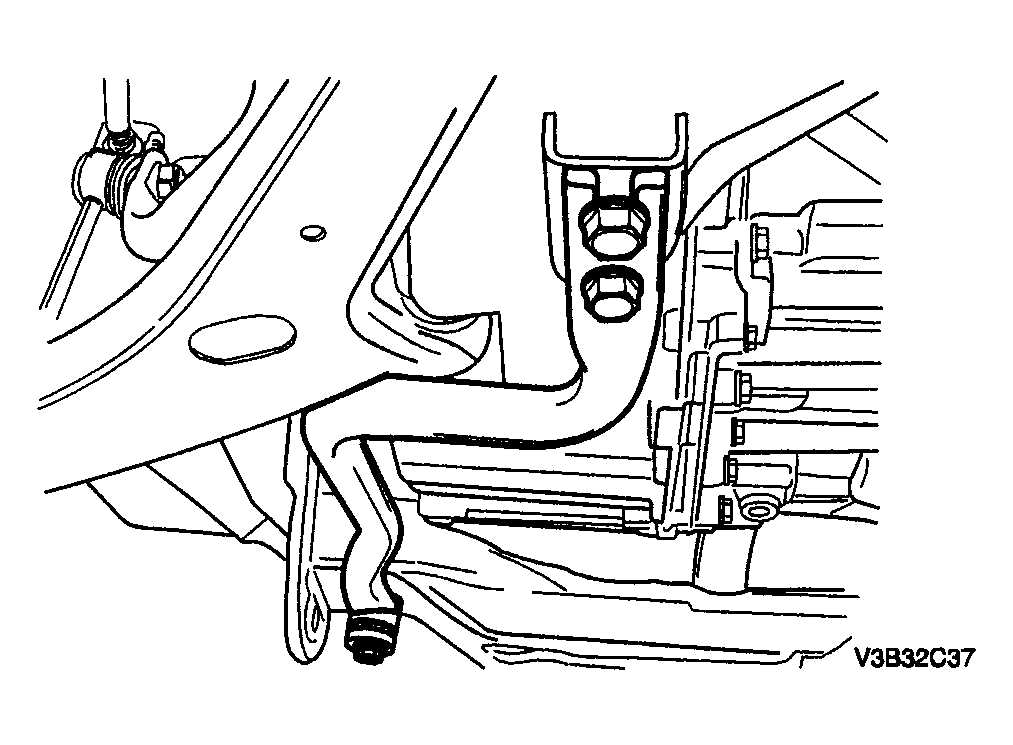

    Fig 1: Removing Bolts Of Impact Beam-To-Front Suspension Centermember
    G04095025Courtesy of SUZUKI OF AMERICA CORP.
