Front Strut Assembly Reassembly

Install the lower spring insulator and the spring.
Compress the spring using the spring compressor KM-329-A.

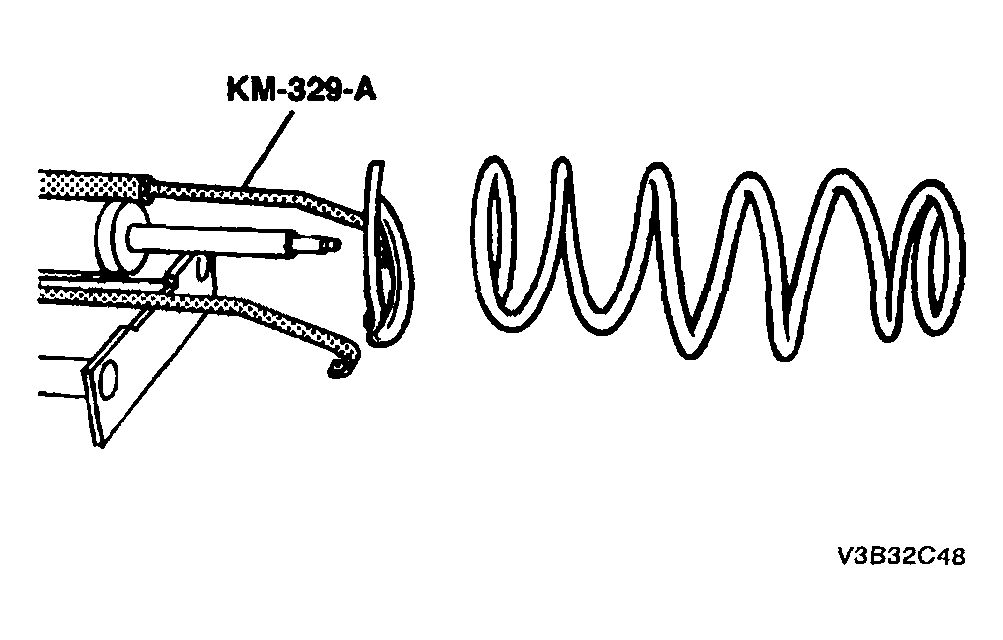

Fig 1: Installing Lower Spring Insulator And Spring
Courtesy of SUZUKI OF AMERICA CORP.
Install the piston rod boot, the hollow bumper, the upper spring insulator, the upper spring seat, the upper strut mount, and the mount bearing. Be sure the front spring seat is positioned correctly.

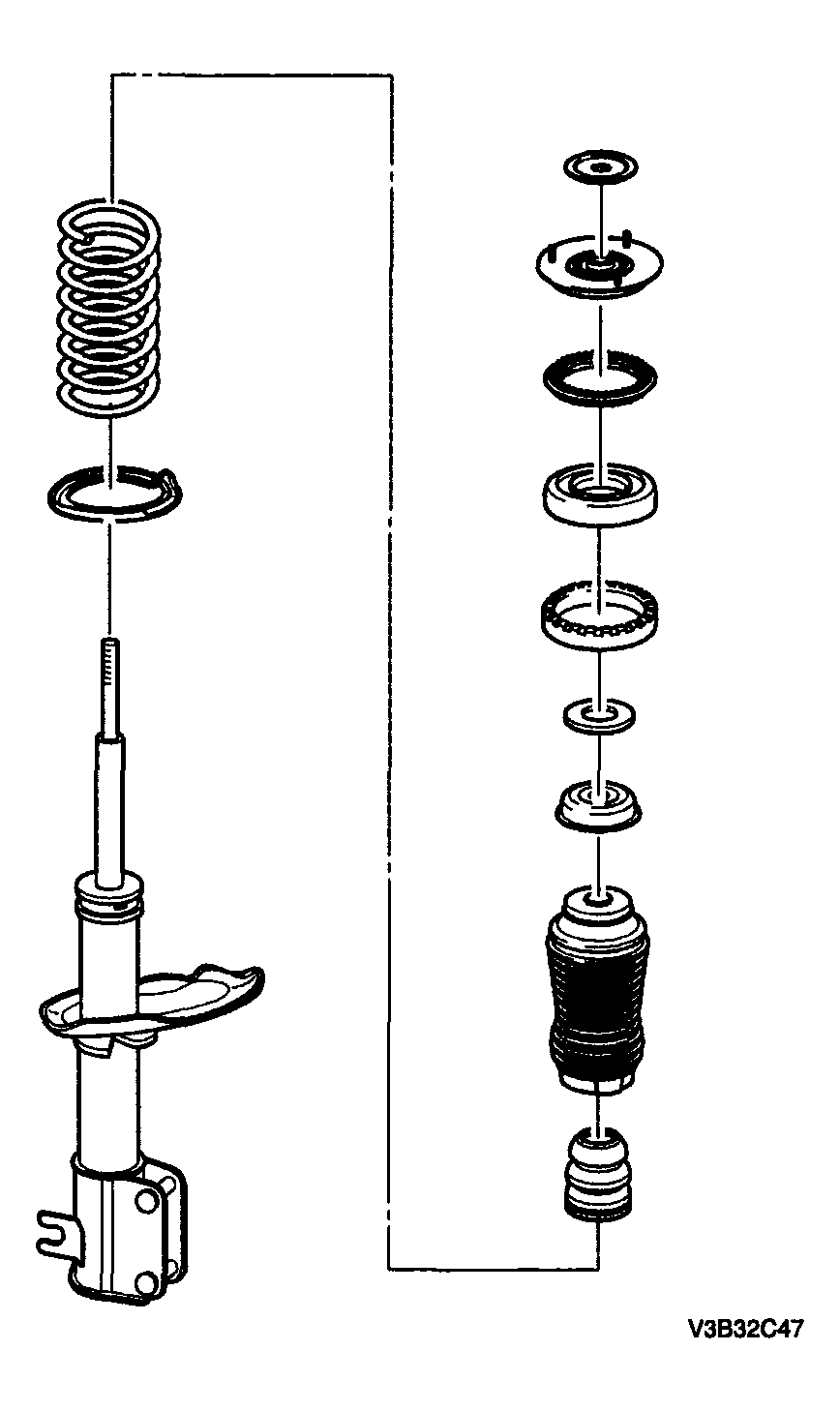

Fig 2: Installing Piston Rod Boot Hollow Bumper
Courtesy of SUZUKI OF AMERICA CORP.

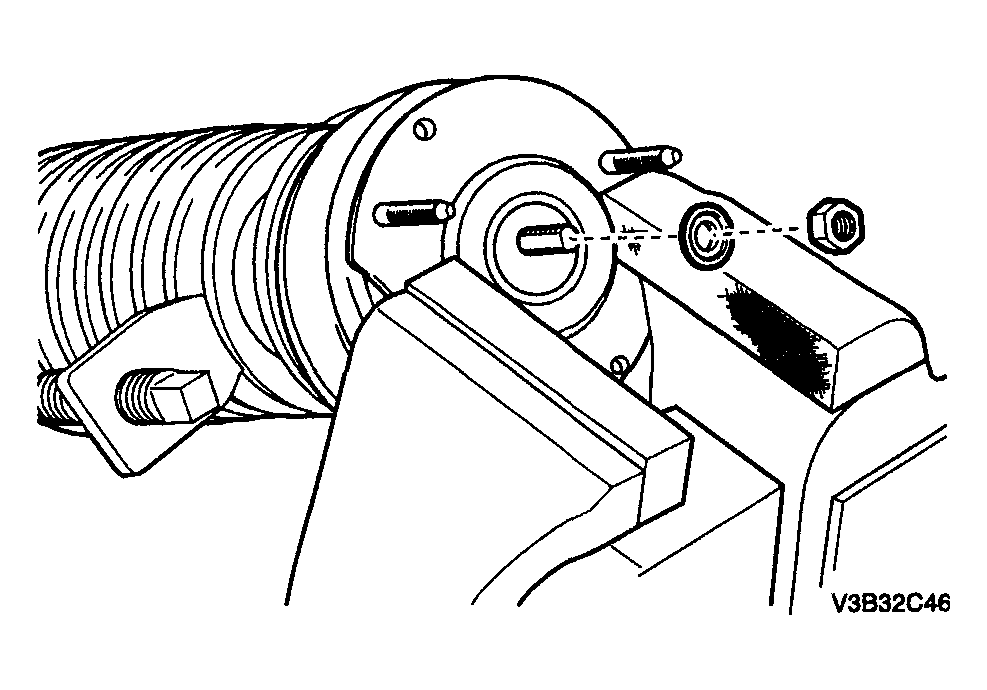

Fix the strut mounting with bite and install the piston rod nut.
Tighten

Tighten the piston rod nut to 70 N.m (52 lb-ft).

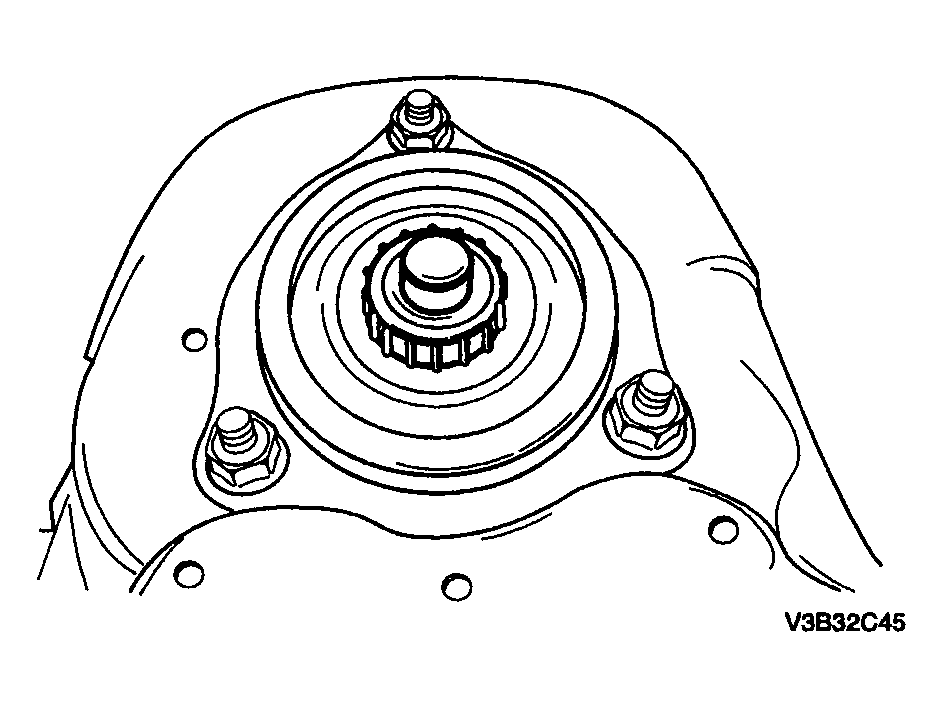

Fig 3: Installing Piston Rod Nut
Courtesy of SUZUKI OF AMERICA CORP.
Install the dust cover onto the bearing assembly.
Release and remove the spring compressor KM-329-A.
Install the strut assembly onto the vehicle.

Fig 4: Installing Dust Cover Onto Bearing Assembly

Courtesy of SUZUKI OF AMERICA CORP.
