Centermember Assembly Removal

Raise and suitably support the vehicle.
Remove the dust cover from the under body of the vehicle.
Remove the power steering pipe fixing bolts.

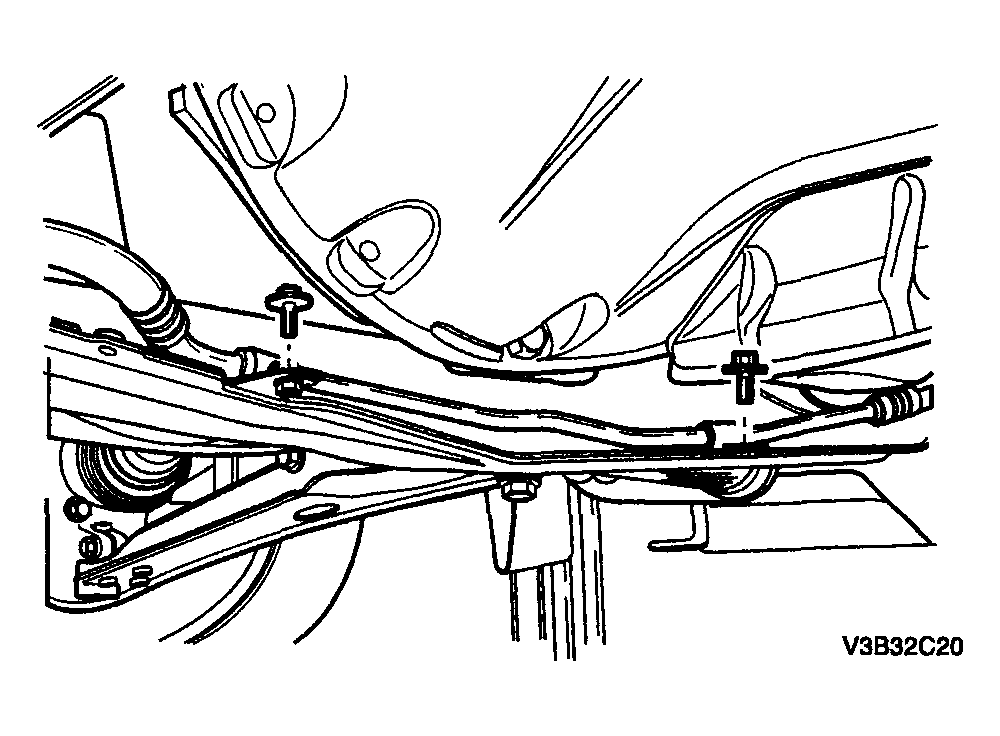

Fig 1: Removing Power Steering Pipe Fixing Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove the centermember front damping block bolt and rear damping block bolt.
WARNING: When removing the centermember bolt, the engine assembly should be supported by jack stands, in advance. Failure to support the centermember properly can result in person injury. In addition, remove the centermember bolt with caution when the exhaust pipe is hot.

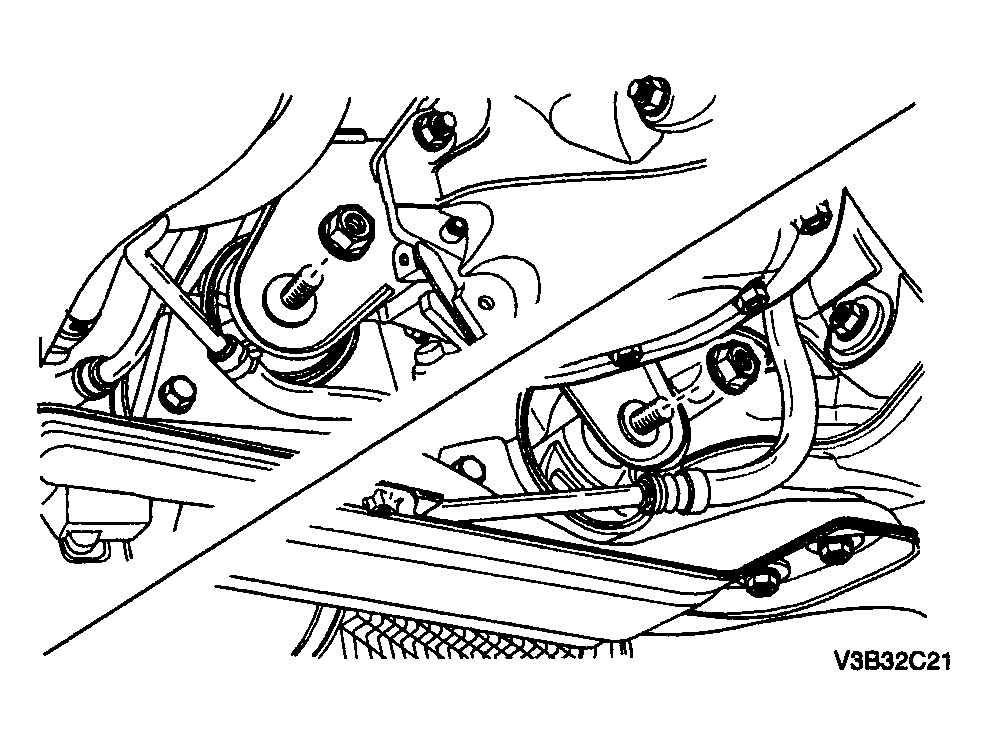

Fig 2: Removing Centermember Front Damping Block Bolt And Rear Damping Block Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Remove the centermember bolts and remove the centermember assembly.

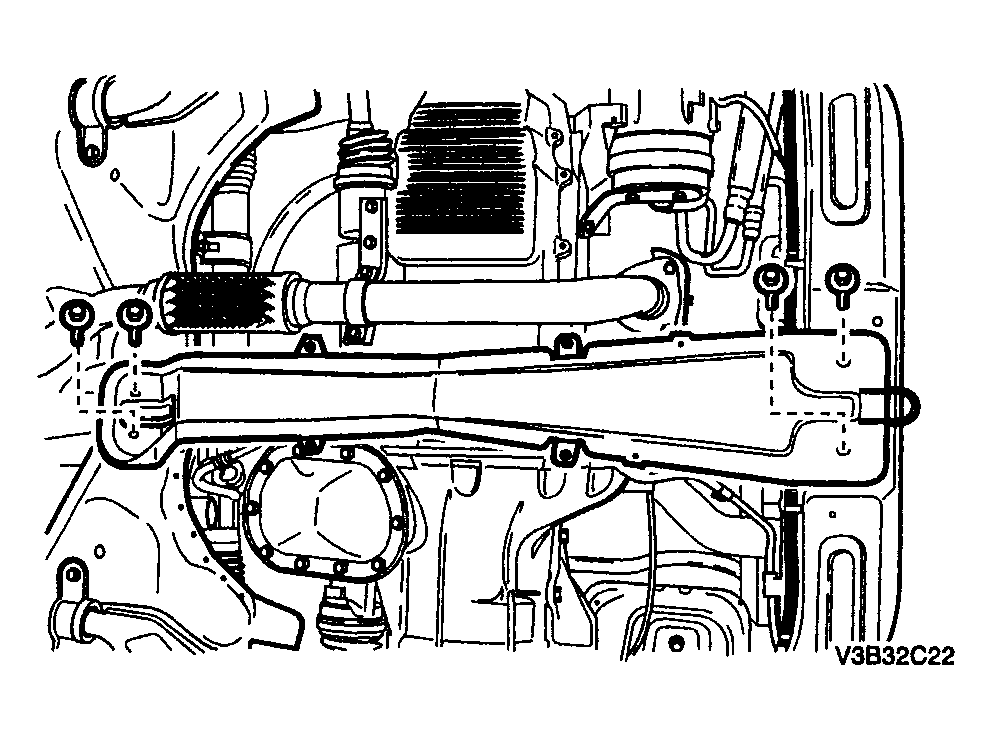

Fig 3: Removing Centermember Assembly
Courtesy of SUZUKI OF AMERICA CORP.
