Power Steering Pump Hoses and Pipes Removal

Siphon the power steering fluid from the fluid reservoir.
Disconnect the pressure line pipe and the supply line hose from the inlet and outlet connections on the power steering pump.

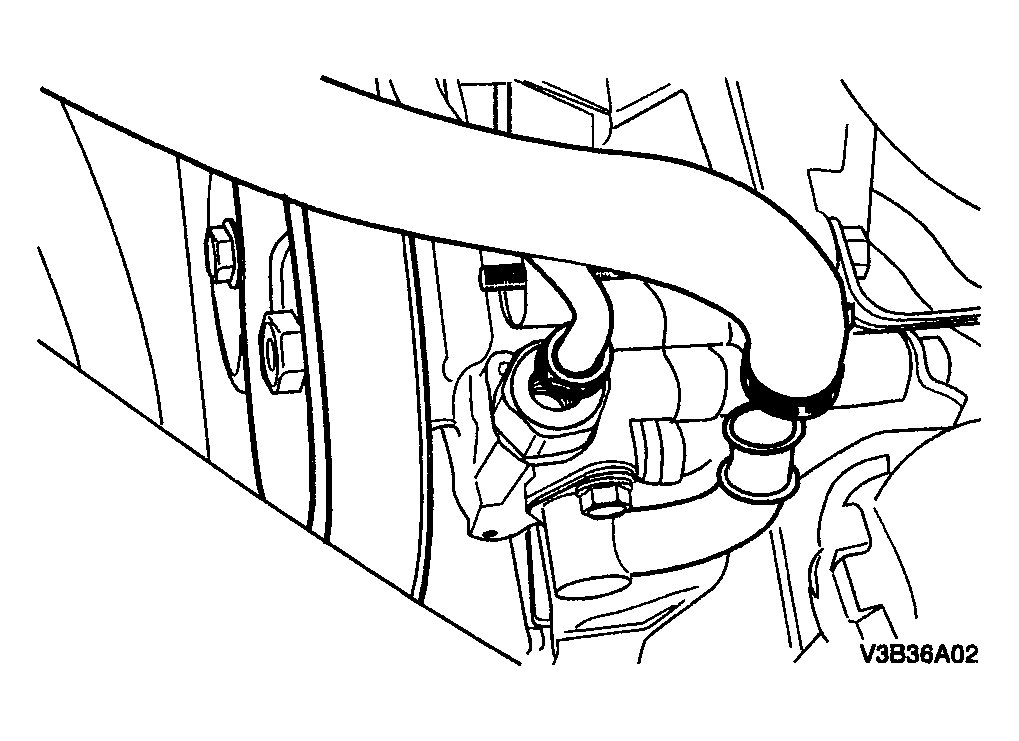

Fig 1: Disconnecting Pressure Line Pipe And Supply Line Hose From Power Steering Pump
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the return line from the fluid reservoir.

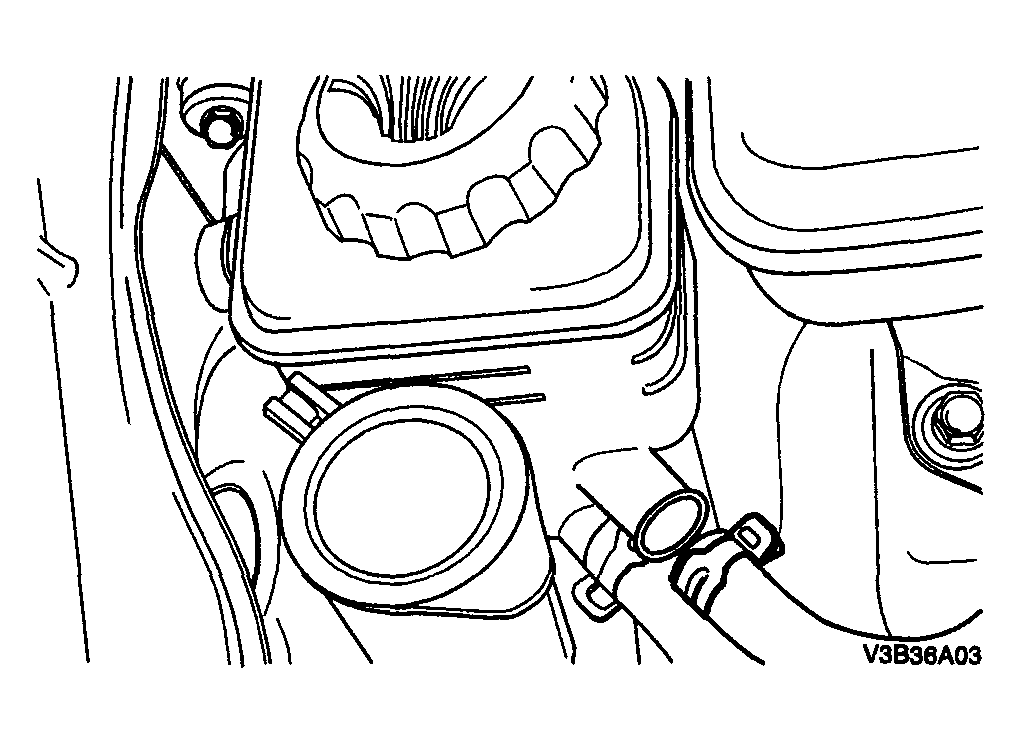

Fig 2: Disconnecting Return Line From Fluid Reservoir

Courtesy of SUZUKI OF AMERICA CORP.

Remove the pressure line bracket securing bolt from the alternator.

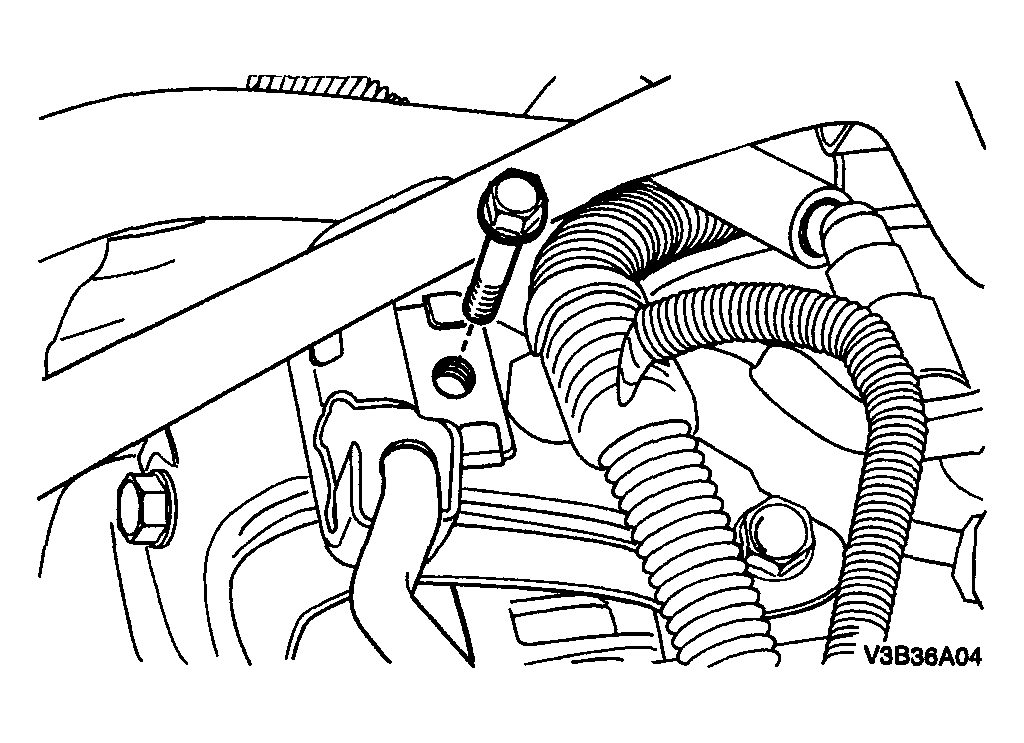

Fig 3: Removing Pressure Line Bracket Securing Bolt From Alternator
Courtesy of SUZUKI OF AMERICA CORP.
Raise and suitably support the vehicle.
Disconnect the pressure line from the power steering gear inlet.

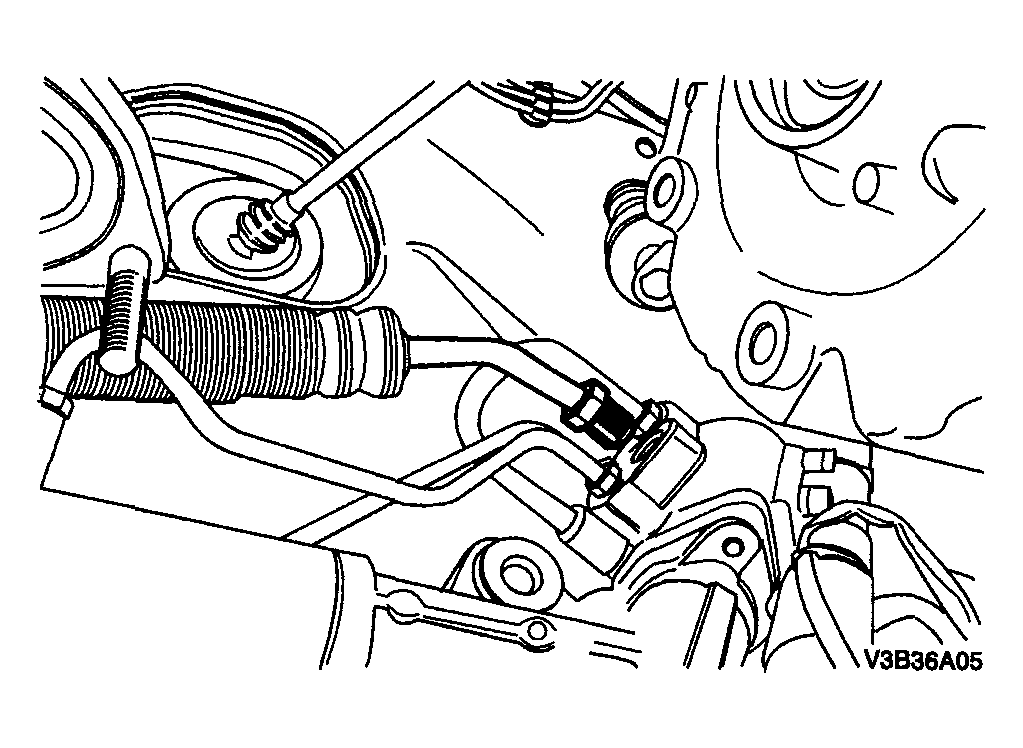

Fig 4: Disconnecting Pressure Line From Power Steering Gear Inlet
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the return line outlet pipe from the power steering gear.

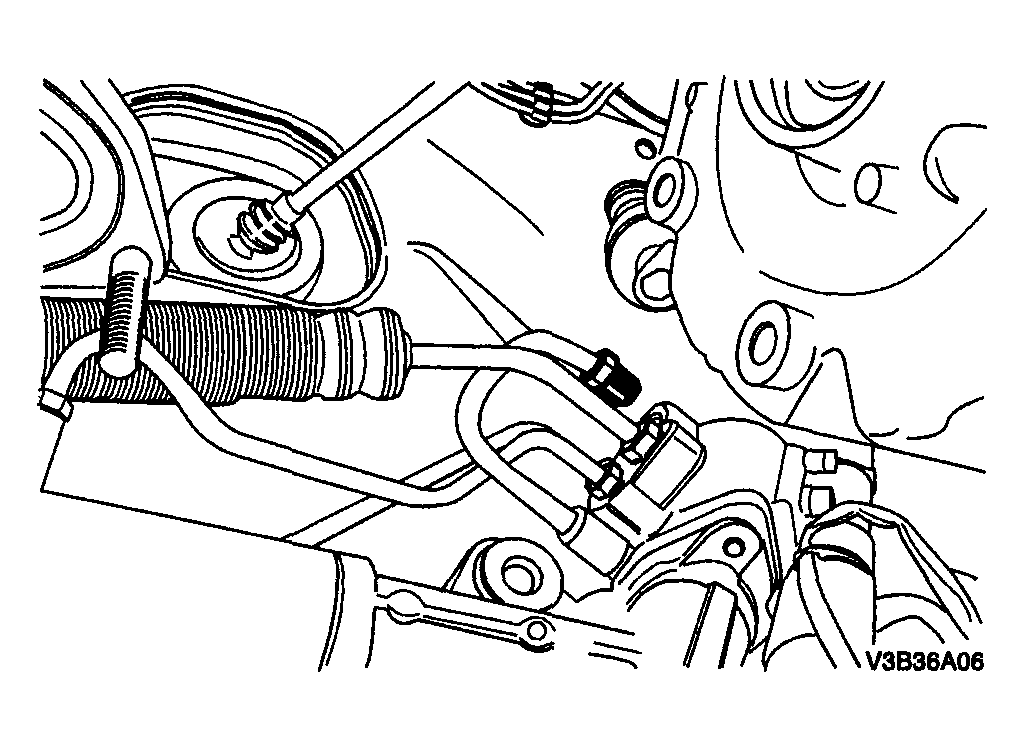

Fig 5: Disconnecting Return Line Outlet Pipe From Power Steering Gear
Courtesy of SUZUKI OF AMERICA CORP.
Remove the return line bracket securing bolts from the center crossmember.

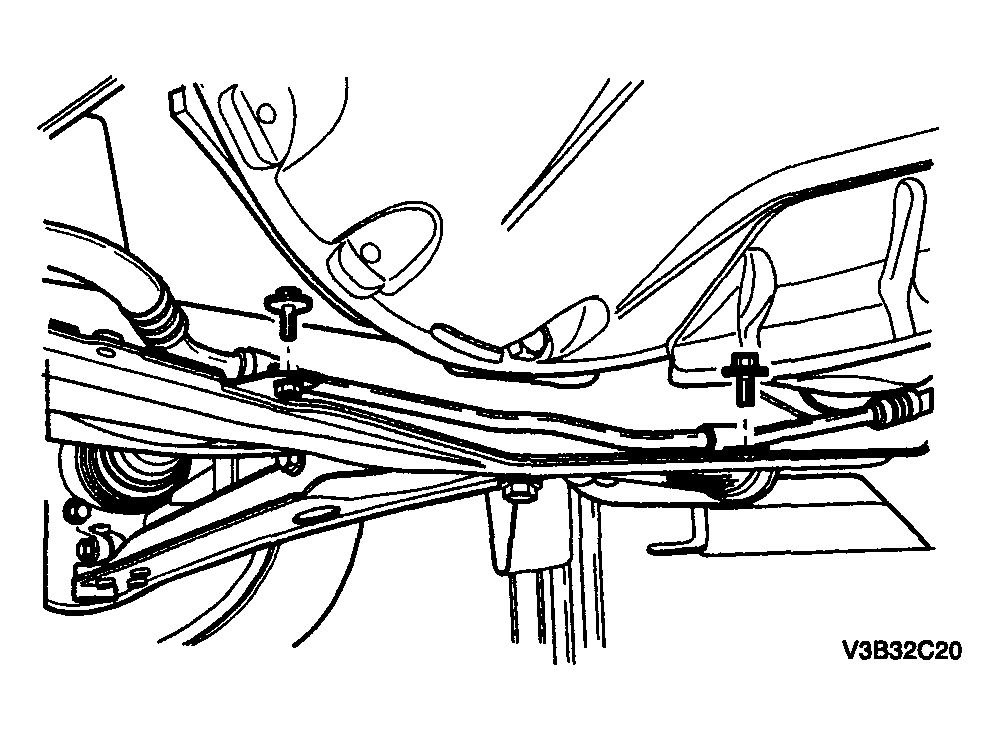

Fig 6: Removing Return Line Bracket Securing Bolts From Center Crossmember
Courtesy of SUZUKI OF AMERICA CORP.
Remove the return line securing bracket bolts near the radiator.
Remove the return line and pressure line from the vehicle.

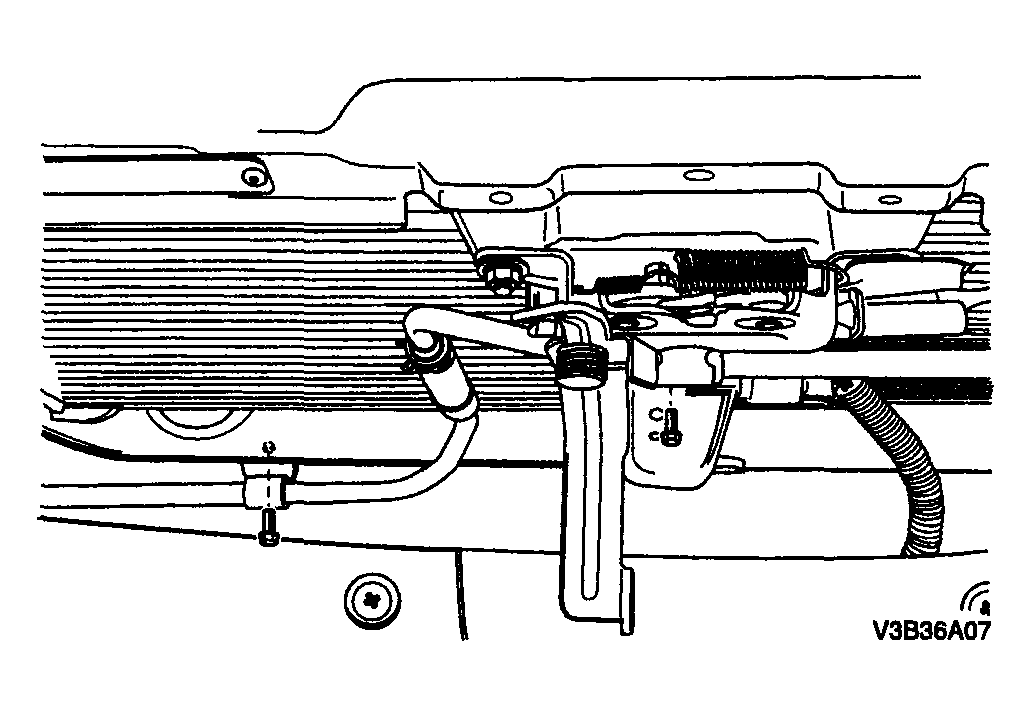

Fig 7: Removing Return Line And Pressure Line
Courtesy of SUZUKI OF AMERICA CORP.
