Power Steering Fluid Supply Hose Removal

Siphon the power steering fluid from the fluid reservoir.
Disconnect the fluid supply hose at the fluid reservoir lower connection.

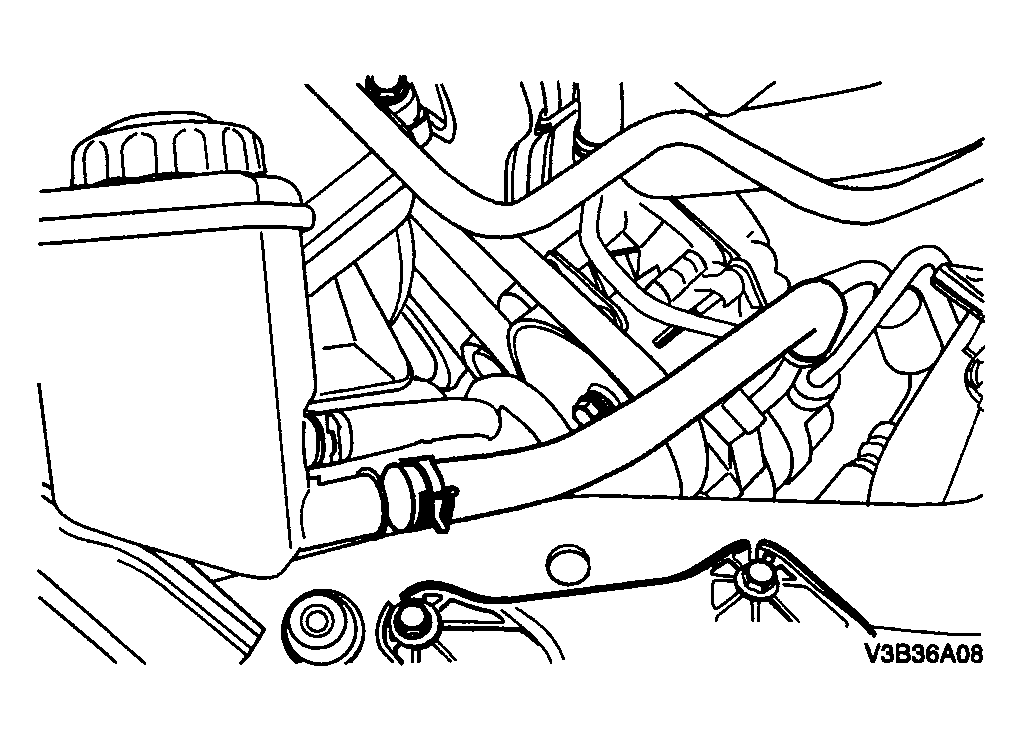

Fig 1: Disconnecting Fluid Supply Hose At Fluid Reservoir Lower Connection
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the fluid supply hose from the power steering pump inlet. Use a rag to avoid any spillage.
Remove the power steering fluid supply hose.

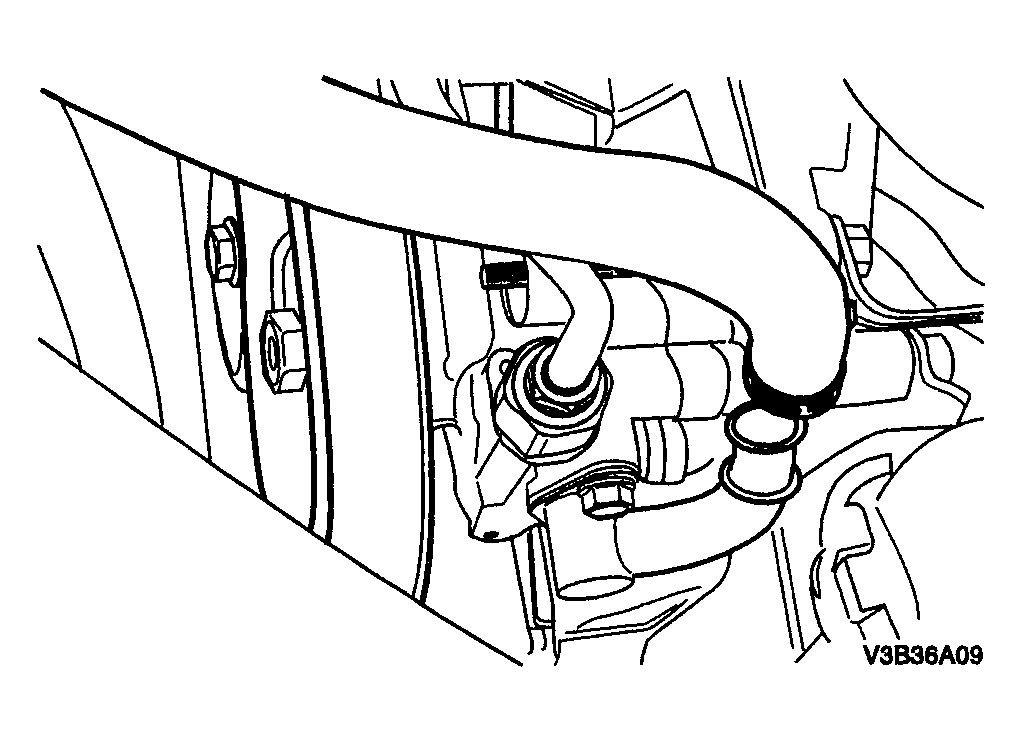

Fig 2: Disconnecting Fluid Supply Hose From Power Steering Pump Inlet
Courtesy of SUZUKI OF AMERICA CORP.
