Power Steering Fluid Supply Hose Installation

Install the power steering fluid supply hose.
Connect the fluid supply hose to the power steering pump inlet.

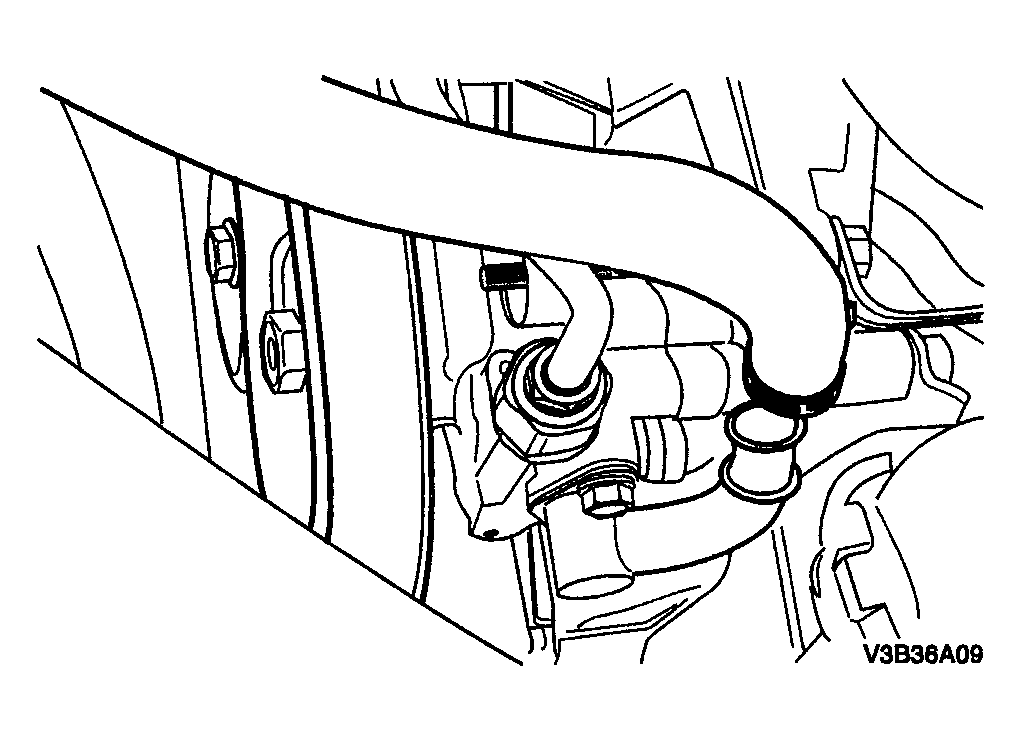

Fig 1: Connecting Fluid Supply Hose To Power Steering Pump Inlet
Courtesy of SUZUKI OF AMERICA CORP.
Connect the fluid supply hose to the fluid reservoir lower connection.
Fill the fluid reservoir with power steering fluid.
CAUTION: When adding fluid or making a complete change, always use DEXRON(R)-IID or III power steering fluid. Failure to use the proper fluid will cause hose and seal damage and fluid leaks.
Inspect for leaks. If there are leaks, correct the cause of the leaks and bleed the system. Refer to "BLEEDING THE POWER STEERING SYSTEM ".

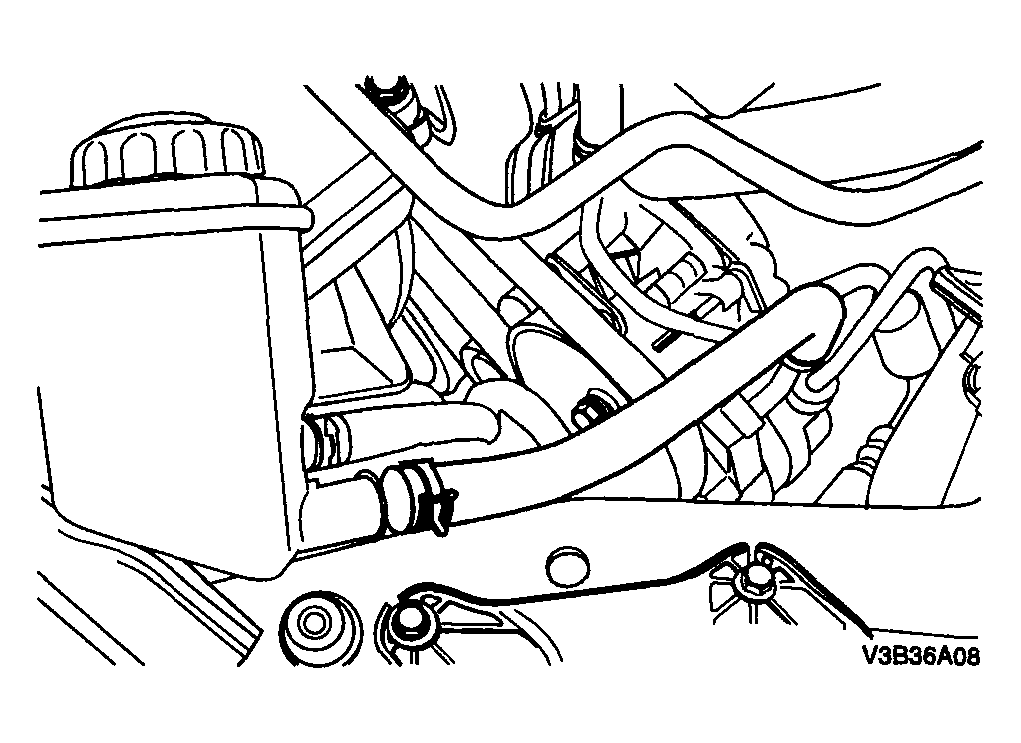

Fig 2: Connecting Fluid Supply Hose To Fluid Reservoir Lower Connection
Courtesy of SUZUKI OF AMERICA CORP.
