Side Airbag Sensor Installation

  1. Install the side airbag sensor.
  2. Install the side airbag sensor mounting bolts.

    Tighten

    Tighten the side airbag sensor mounting bolts to 10 N.m (89 lb-in).

  3. Install the trim on B pillar.
  4. Connect the negative battery cable.

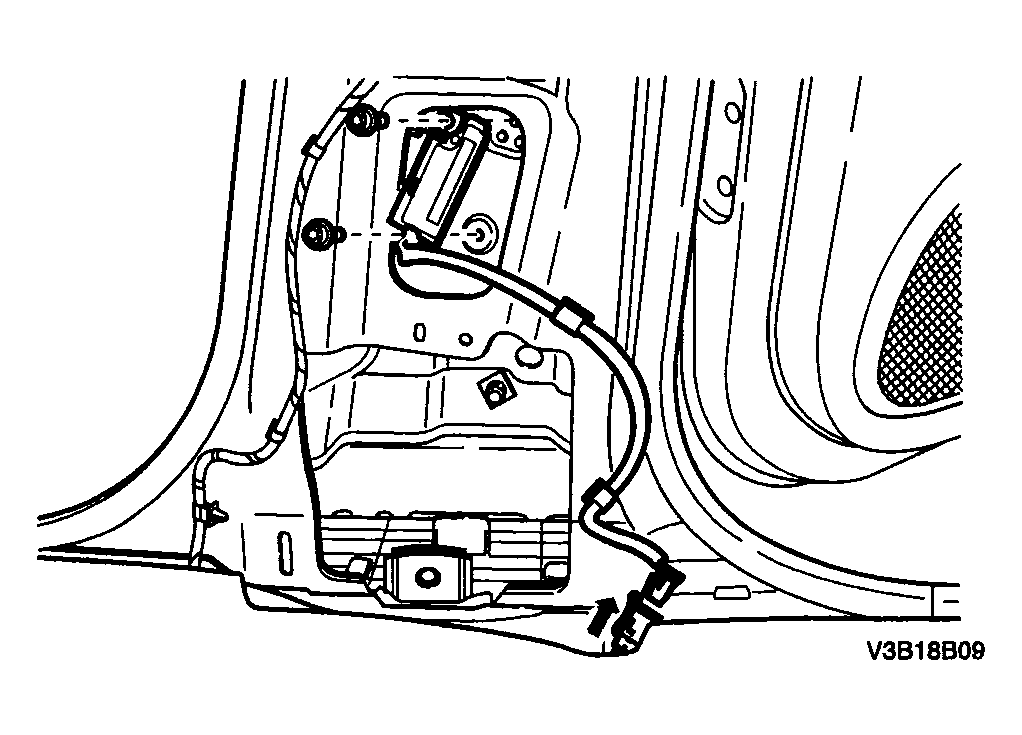

    Fig 1: Installing Side Airbag Sensor
    G04096074Courtesy of SUZUKI OF AMERICA CORP.
