Sensing and Diagnostic Module (SDM) Installation

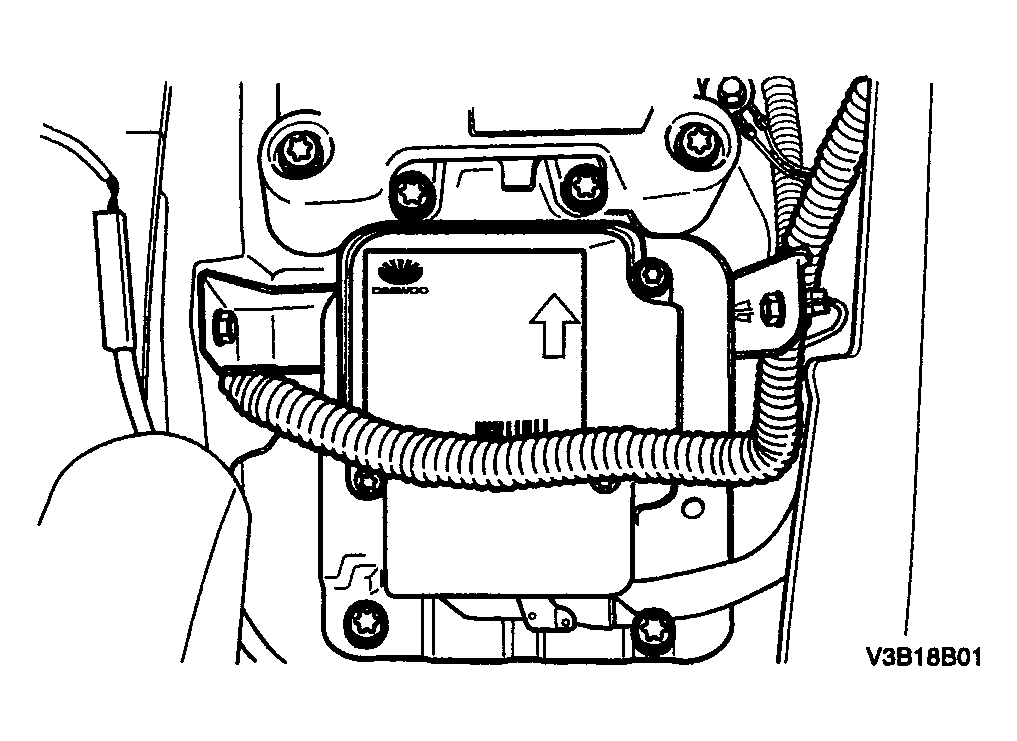

- Install the SDM with the arrow pointing toward the front of the vehicle.
- Install the SDM mounting bolts.
Tighten
Tighten the SDM mounting bolts to 10 N.m (89 lb-in)
- Connect the SDM electrical connector.
- Install the connector position assurance lock.
- Install the floor console. Refer to "FLOOR CONSOLE INSTALLATION ".
- Enable the SIR. Refer to "ENABLING THE SUPPLEMENTAL INFLATABLE RESTRAINTS (SIR) ".WARNING: All SDM mounting bolts must be carefully tightened and the arrow on the SDM must be pointing toward the front of the vehicle to ensure proper operation of the SIR. The SDM could be activated if it is powered while not rigidly attached to the vehicle, resulting in unexpected deployment and possible injury.
