Driver Airbag Module Installation
WARNING:
When handling an airbag module, always keep the top of the unit facing upward. This leaves room for the airbag to expand if the module unexpectedly deploys. Without room for expansion, a module suddenly propelled toward a person or object can cause injury or vehicle damage.
- Install the connectors to the horn terminal and the driver airbag module.

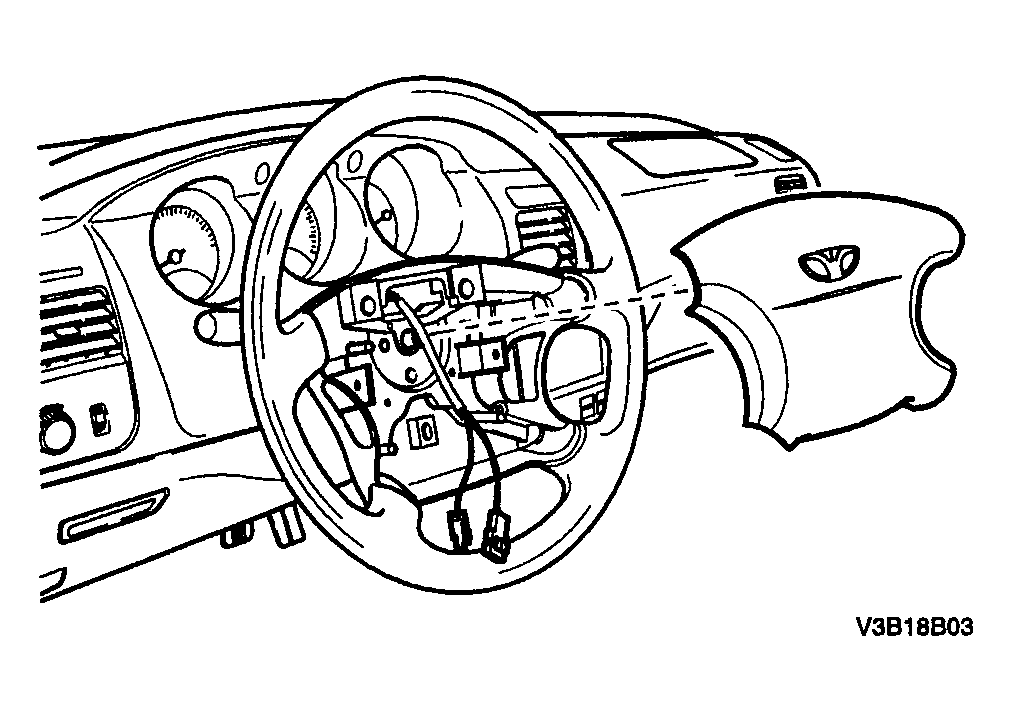

- Install the driver airbag module.
- Install the driver airbag module mounting bolts.
Tighten
Tighten the driver airbag module mounting bolts to 15 N.m (11 lb-ft).
- Connect the negative battery cable.
