Repair and Diagnosis
>>
Restraints
>>
Passive Restraints
>>
Air Bag System
>>
Diagnostic Information and Procedures
>>
Sensing and Diagnostic Module (SDM) Integrity Check
>>
Hot in Run and Start
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Hot in Run and Start

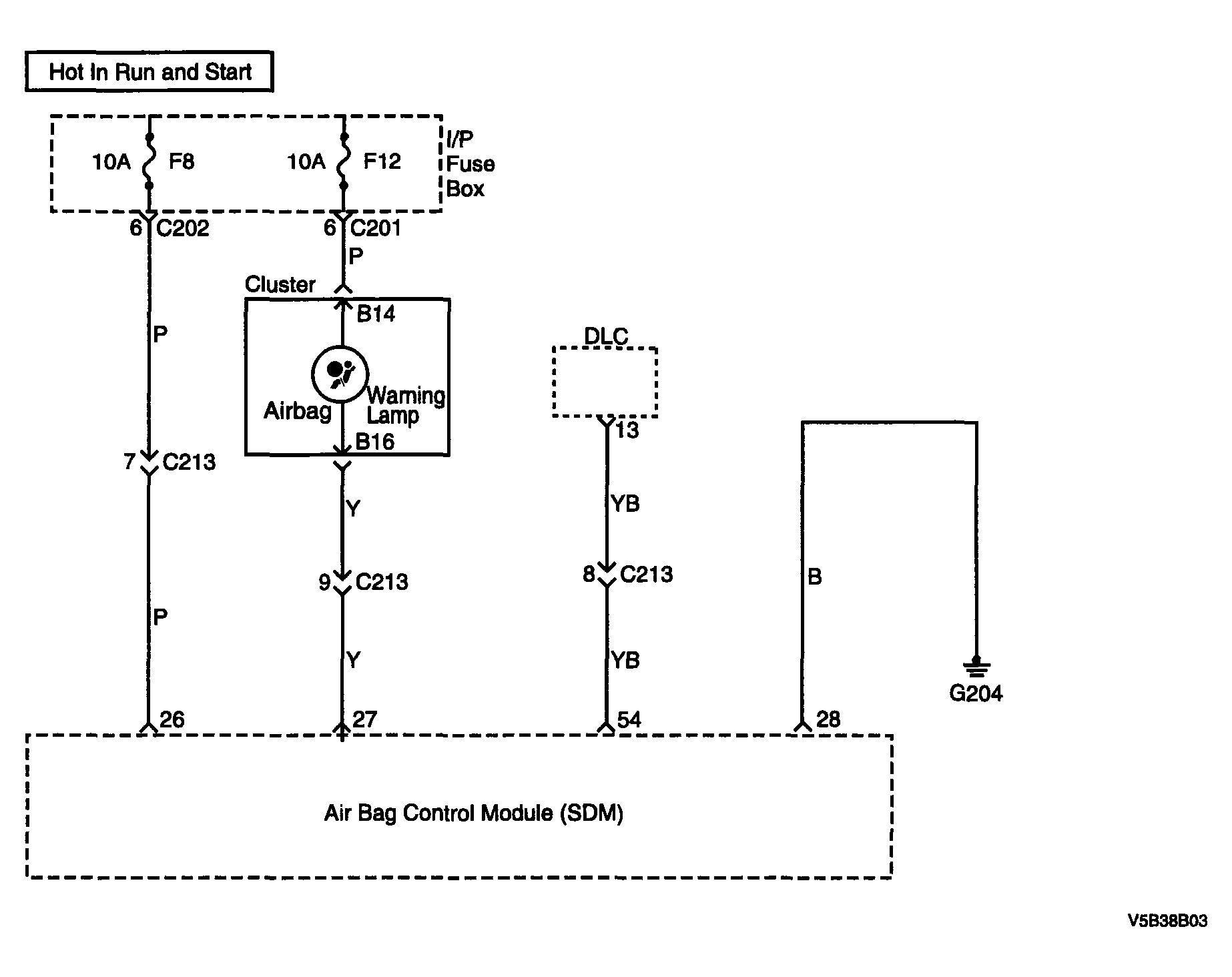

Fig 1: Hot In Run And Start Circuit
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
