DTC B1400 Driver Side Airbag Sensor Defect: Notes

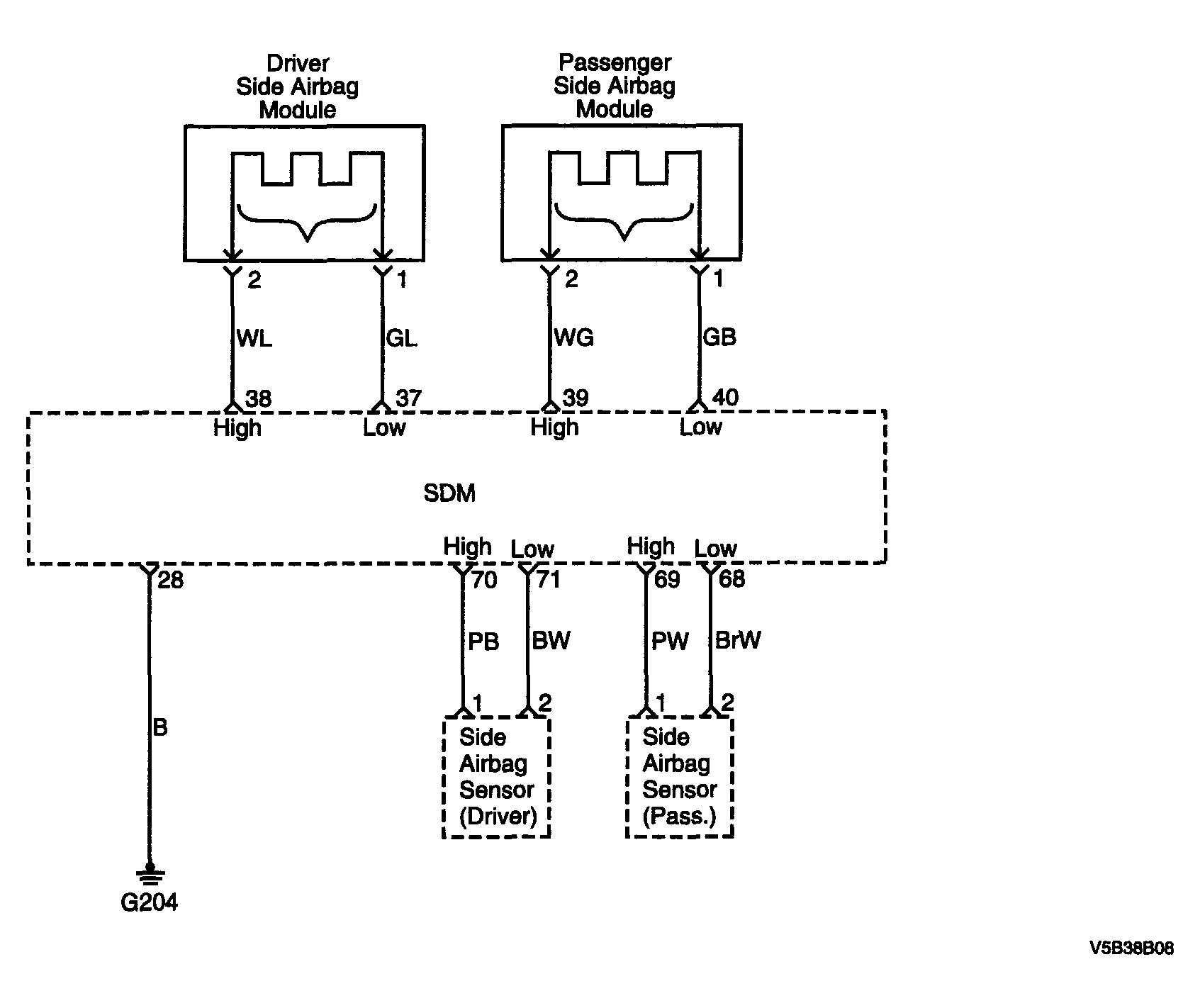

Fig 1: DTC B1400 Circuit Driver Side Airbag Sensor Defect
G04096033Courtesy of SUZUKI OF AMERICA CORP.
