DTC B1381 Driver Side Airbag Short to Power: Notes

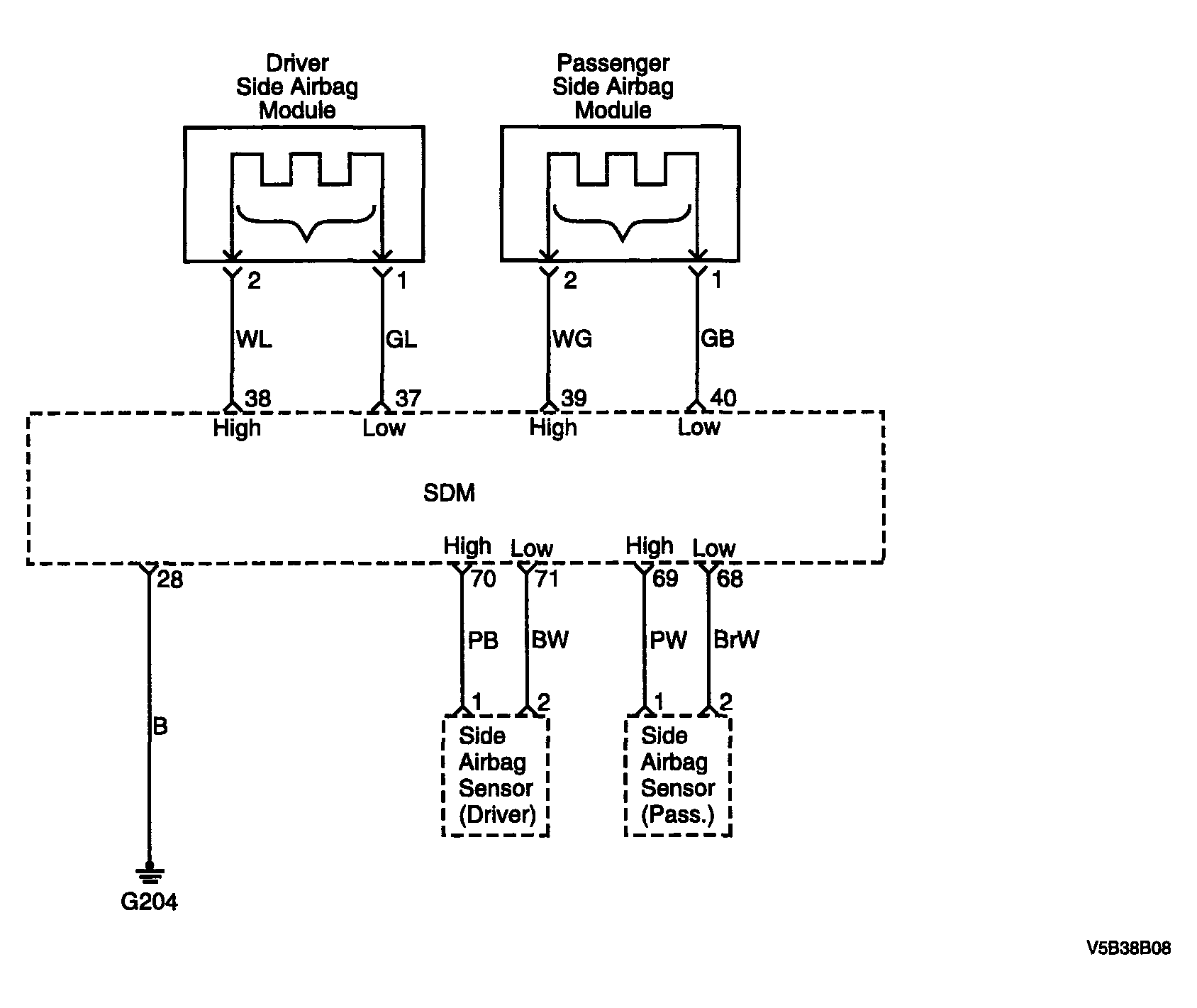

Fig 1: DTC B1381 Circuit Driver Side Airbag Short To Power
G04096027Courtesy of SUZUKI OF AMERICA CORP.
