DTC B1380 Driver Side Airbag Short to Ground: Notes

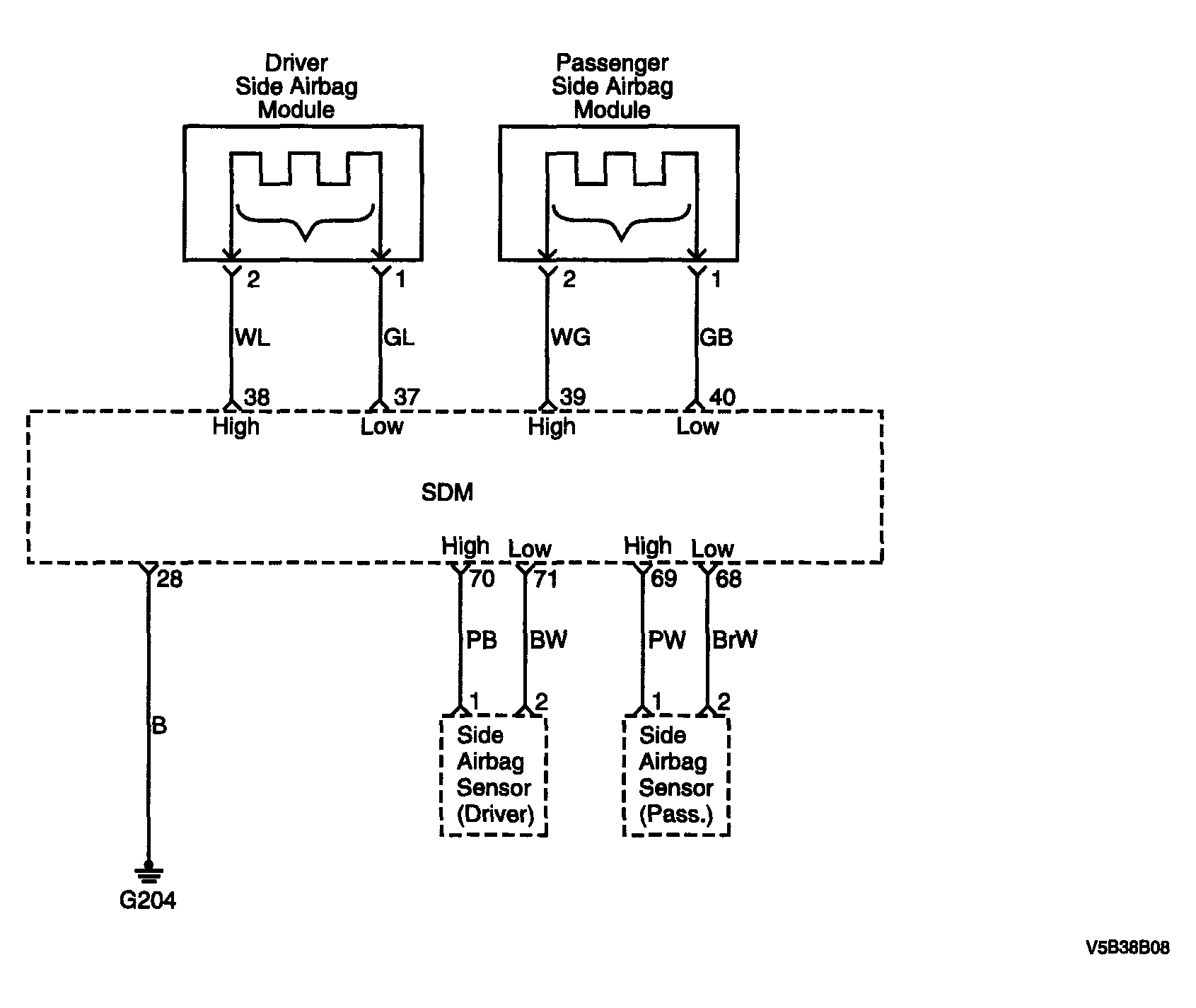

Fig 1: DTC B1380 Circuit Driver Side Airbag Short To Ground
G04096026Courtesy of SUZUKI OF AMERICA CORP.
