DTC B1330 Early Crash Sensor Driver (LH) Wrong ID: Notes

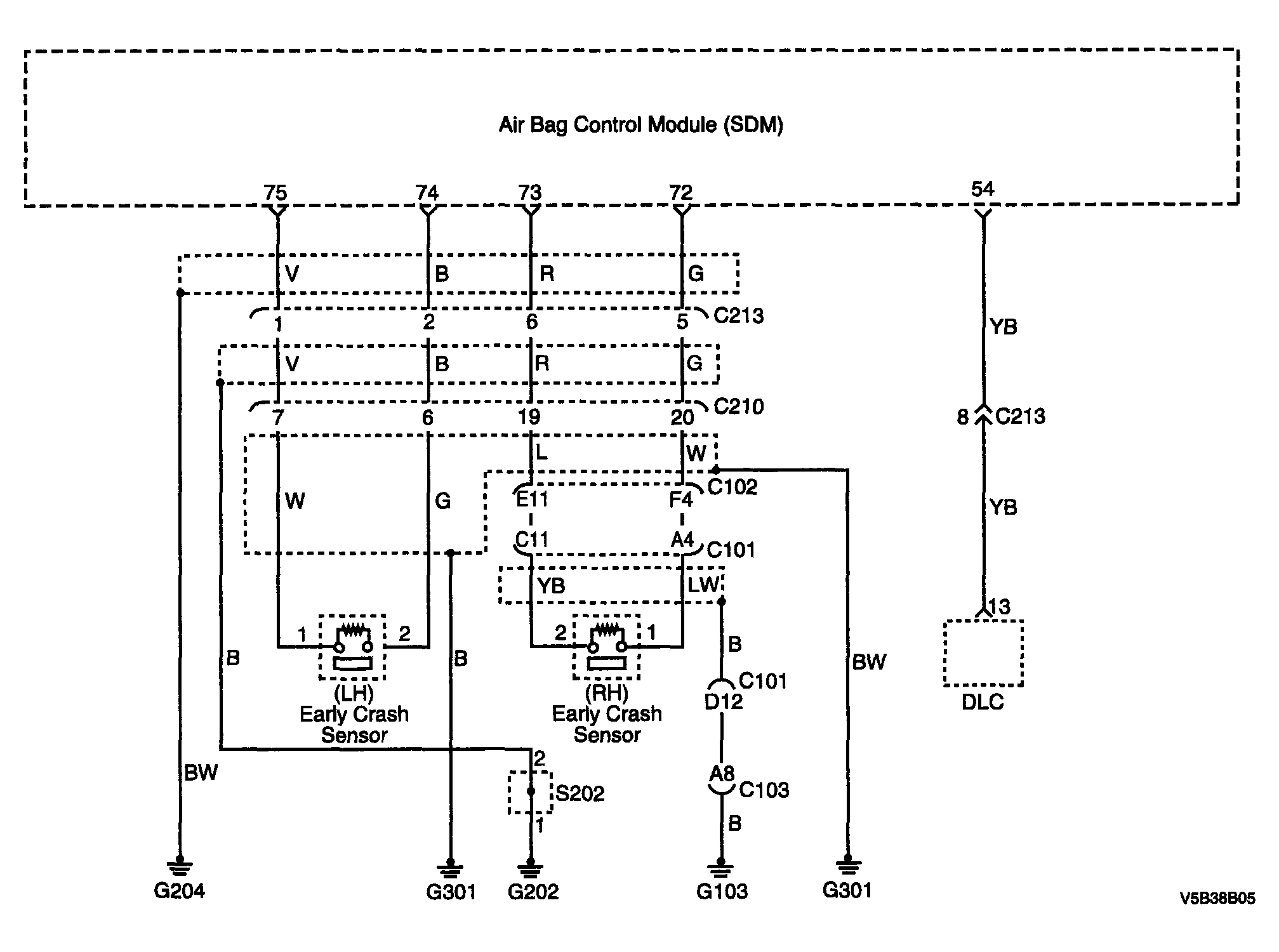

Fig 1: DTC B1330 Circuit Early Crash Sensor Driver (LH) Wrong ID
G04096002Courtesy of SUZUKI OF AMERICA CORP.
